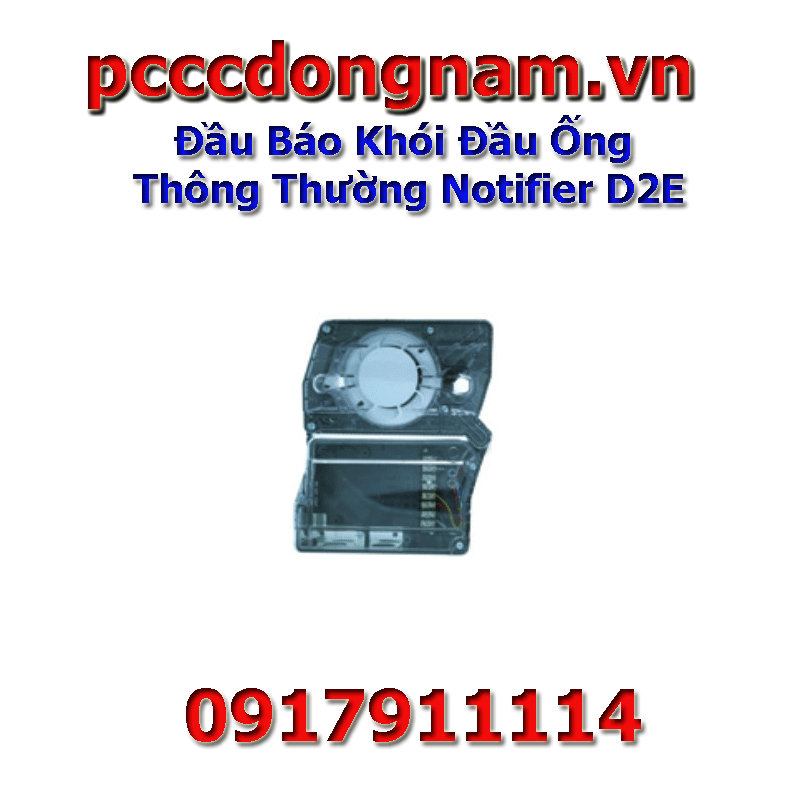

Notifier D2E Conventional Pipe Smoke Detector
Notifier D2E Conventional Pipe Smoke Detector
⭐ D2E 2-wire photoelectric duct smoke detector, Notifier dealer provided, notifier fire alarm catalog, Quotation for fire alarm cabinet notifier n6000, price of notifier smoke detector, Notifier fire alarm module, advice on using notifier fire alarm cabinets, notifier quotes and programming instructions for notifier fire alarm cabinets
- The D2E 2-wire photoelectric duct smoke detector with swivel housing has a variety of applications: both square and rectangular footprints attached to round or rectangular ducts.
Mechanical parameters Notifier D2E Conventional Tubular Smoke Detector
• Dimensions: (Rectangle) 37 cm L; 12.7 cm W; 6.36 cm D (Square) 19.7 cm L; 22.9 cm W; 6.35 cm EASY
• Weight: 0.82 kg
• Operating temperature range: 0°C to 70°C
• Storage temperature range: 0° to 70°C
• Operating humidity range: non-condensing relative humidity 0% to 95%
• Duct speed : 0.5 to 20 m/s
Electrical parameters
• Power supply voltage: 8.5-35 VDC
• Input capacitance: 0.1 FF . max
• Reset voltage: 2.5 VDC min
• Reset time: (with RTS451) 0.03 to 0.3 seconds
• Reset time: (when power off) 0.3 seconds max
• Power-on time: 35 seconds. maximum
• Alarm response time: 15 seconds
• Sensitivity test: See detector label Current requirements: (Do not use accessory)
• Maximum Standby Current: 120μA
• Max. Standby current: 60 AA (average)
• Max. alarm current: 130 mAAccessory
- Load current at 24 VDC
- Backup alarm device RI / W / 3V 0 mA 12 mA Max.
