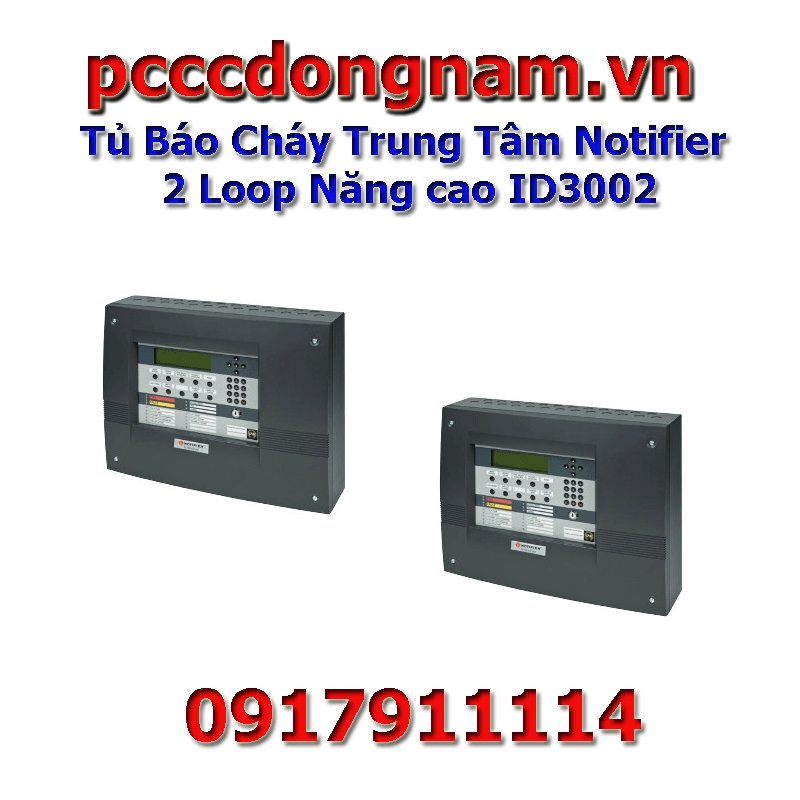

Notifier 2 Loop High Power Central Fire Alarm Cabinet ID3002
Dealers provide catalog of notifier fire alarms, intelligent fire alarm control cabinets
⭐Quote for notifier smoke detectors and n6000 fire alarm cabinets ,Free consultation on using and operating notifier fire alarm cabinets ,Provide alarm module fire notifier, quote notifier address fire button, Contact to order 0917.911.114
Details of Central Fire Alarm Cabinet Notifier 2 Loop High Performance ID3002
The ID3002 High Power Notifier 2 Loop Central Fire Alarm Panel is a 2-loop intelligent fire alarm control panel supplied fully assembled. Each loop can support up to 198 devices (99 detectors + 99 modules/sounds) for a total of up to 255 zones per board. A full range of smart sensors, advanced detection products, input and output devices, repeaters, mimic drivers, printers and other peripherals complement the ID3000 to give you The most complete and versatile fire alarm system on the market
Specifications Central Fire Alarm Cabinet Notifier 2 Loop High Performance ID3002
- Height: 400 mm - Width: 500 mm - Depth: 153 mm
• Weight: 14 kg (without battery)
Specifications Notifier 2 Loop High Performance Central Fire Alarm Cabinet ID3002
• Supply Rating: The mains supply for the control panel shall be provided with an external two-pole mains isolator. 230V ~ (ac) ± 15%, 5A, 50Hz ± 4%.
• PSU3A Output rating: Output voltage: 26.0Vdc - 28.3Vdc (stable) Ripple voltage: ±300mV EN54 PSU Load Imax (a): 600mA; Imax (b): 3A; Me (minutes): 0A
Environmental Specifications Central Fire Alarm Cabinet Notifier 2 Loop High Performance ID3002
• Climate classification: 3K5, (IEC 721-2-3)
• Operating temperature -5°C to +45°C
• Relative humidity: 5% to 95%, non-condensing
• Ingress Protection (IP) Rating: IP30 (EN 60529)
• Vibration (EN 54-2/4 compliant): EN 60068-2-6.10-150Hz at 0.981ms-2
• EMC emission: EN 61000-6-3
• EMC immunity: EN 50130-4
• Safety: EN 60950
You can refer to products genuine fire alarm equipment...HERE
You will receive a quote from us as soon as possible..
