NFXI-ASD11-HS 1-channel suction system
Notifier NFXI-ASD11-HS Single channel suction system NFXI-ASD11-HS / 1 detector compatible with control panel ID60 / 3000 and Pearl (CLIP) ,Special smoke alarm, imported and distributed Notifier Spain and Portugal, Contact 0917.911.114
FAAST-LT-200 smoke detection system by suction. The instrument includes a highly sensitive laser detector, ultrasonic flow sensor and protected electronics. The FAAST LT-200 includes alarm and pre-alarm levels that can be set between 9 sensitivity levels. A pendulum graphic bar with 9 airflow levels verifies that the airflow is in accordance with the requirements of EN54-20. Information can be easily and quickly read in the user interface or via a USB connection using the TubeIQ LT program.
- Operating voltage: 18.5 ... 31.5 Vdc
- Static current @ 24 Vdc : approx. 170 mA
- Operating temperature : -10°C ... 55°C
- Relative humidity: 10 ... 93% (non-condensing)
- Protection index: IP 65
- Shell: plastic (ABS)
- Black
- Weight: approx. 6.5 kg (including sensor)
- Dimensions: A: 356 mm H: 403 mm F: 135 mm
- Certificate: 0832-CPR-F1059

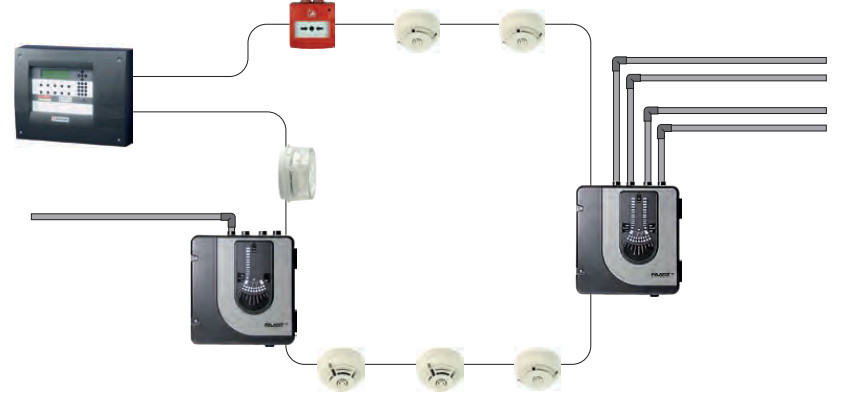

.jpg "Hệ thống hút 1 kênh NFXI-ASD11-HS / 1 máy dò tương thích với bảng điều khiển ID60 / 3000 và Pearl (CLIP)")
- High sensitive IR LED detection technology
- Approved for grade C
- Up to 18 holes per channel
- Ultrasonic Flow Measurement The unique design of the pendulum reading line allows to verify the functionality of the pipeline network
- Monitor and transmit flow failure in central notifier ID60 USB interface
- ID3000 or Pearl 2240 event log
Models :
- NFXI-ASD11-HS - CPR
- NFXI-ASD11-HS - LPCB
