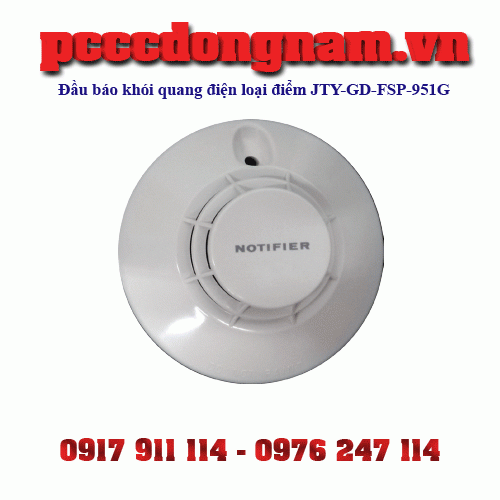

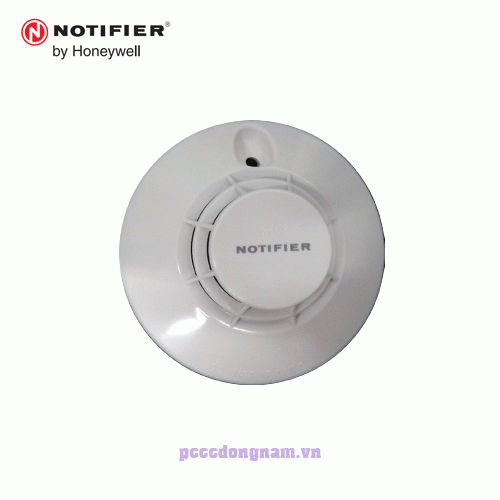

JTY-GD-FSP-951G point type photoelectric smoke detector
TY-GD-FSP-951G is an intelligent photoelectric design and production using modern technology Smoke detectors. These detectors provide protection for open areas, and the controller not only knows Know the location of the detector, and know the smoke concentration in the detector detection room. detector Different sensitivity settings can be made to suit different installation environments. To configure the buzzer Base, please order B601BH.
Characteristic JTY-GD-FSP-951G point type photoelectric smoke detector
◆ New streamline design, beautiful appearance
◆ Stable communication technology with anti-noise ability
◆ Fast response and good consistency
◆ Built-in metal protective cover, with dust-proof, insect-proof and anti-interference ability
◆ The light-emitting diode flashes during each inspection, and the alarm is always on
◆ Detachable upper cover, convenient for on-site cleaning and maintenance
Parameter TY-GD-FSP-951G point type photoelectric smoke detector
- Diameter: 102.6 mm,
- Height: 39.0mm (without base), 48.4mm (including base)
- Weight: 80g (without base), 115g (with base)
- range of working temperature: -10°C ~ 55°C (GB); 0°C ~ 49°C (UL)
- Operating Humidity Range: 5%~95%RH relative humidity, non-condensing (GB); 10%~93%RH relative humidity, non-condensing (UL)
- Voltage range: 15 ~ 32 VDC
- Average monitoring current: 380μA (communication every 5 seconds times and blink the LED)
- Maximum alarm current: 3mA@24VDC (LED Bright)
