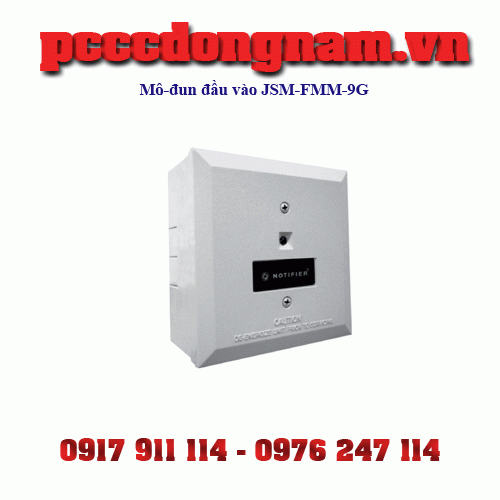

JSM-FMM-9G input module

Manufacture: INGESCO
Product code: JSM-FMM-9G

The status of digital fire-fighting equipment such as water flow indicators, fire hydrant buttons, and pressure switches A monitoring module is required for monitoring. The monitoring module will monitor the status of such fire fighting equipment according to the monitoring and The controller is notified of the two states of alarm, and the records are displayed.

Zalo

Consulting hotline: 0944934114
Product information

JSM-FMM-9G intelligent monitoring module can address with encoder on site, occupancy control An address in a loop of the device. When the monitoring module receives the closing signal of the switch After that, the signal is sent to the controller through the bus. (Module installation box needs to be ordered separately).

Characteristic

◆ Built-in model identification system, the control panel can automatically identify the device as JSM-FMM-9G.

◆ Loop power supply directly, no need for additional power cord.

◆ SEMS screws have clips for easy wiring.

◆ The LED flashes during normal operation and is always on during alarm

Parameter

- Voltage range: 15~32VDC

- Maximum lighting current: 3mA

- Quiescent current: 500μA@24VDC (pass every 5 seconds One time, the terminal resistance is 47K ohms)

- Terminal resistance: 47KΩ

- Maximum monitoring circuit resistance: 40Ω

- Maximum monitoring loop voltage: 9.5V

- Maximum Monitoring Loop Current: 300µA

- range of working temperature:.

-10℃~55℃(GB); 0℃~49℃ (UL)

- Operating Humidity Range: 5%~95%RH relative humidity, non-condensing (GB); 10%~93%RH relative humidity, non-condensing (UL)

- Installation dimensions: 124.6mm long x 124.6mm wide x33.5mm high

- Auxiliary components: SMB500 embedded box; 47K final Terminal resistance

- Weight: about 155g (including packaging materials)
