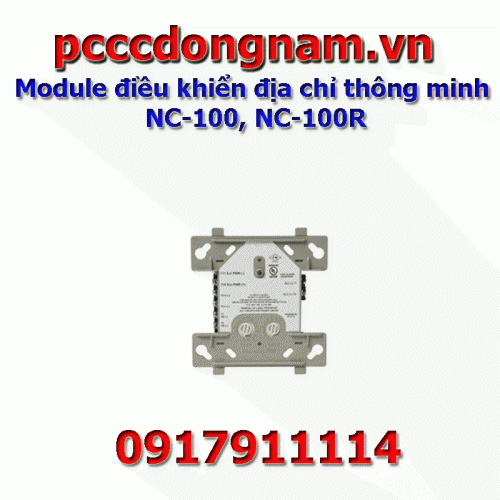

Intelligent addressable control module NC-100 NC-100R
Top rating 10/10 - 5001 votes FireWarden 200 Addressable Photoelectric Smoke Detector (NP-200, NP-200R, NP-200T)Intelligent relay and control module NC-100, NC-100R , Addressable fire alarm device Notifier ,100% brand new and genuine , 12 month warranty ,Contact for quotation of control modules , Quotation of viking tyco open tyco sprinkler sprinkler head ty325 ,Hotline 0917.911.114
NOTifiER's intelligent addressable control module provides supervisory monitoring of wiring for loading devices that require an external power source to operate, such as horns, wardrobes or bells. It is capable of class A and class B supervision. The relay module allows the control panel to switch two isolated sets of Model C contacts without supervision to the annunciator circuit.
Features
- SEMS screw to reduce wire
- LED status panel
- Analogue communication
- Rotary address switch
- Low standby current
- Mounts in a standard 4" junction box
Specifications
- Normal operating voltage: 15 to 32 VDC
- Maximum current SLC draw: 6.5 mA (LED on) Temperature Range: 32°F to 120°F (0°C to 49°C)
- Dimensions: 4,675" H x 4.275" W x 1.4" D (Mounts to a 4" square 21/8" deep.)
Standard List
- FM approved
- UL list: S635 . file
- Approved CSFM: file 7300-0028: 230
- MEA approved: file 72-01-E Vol. 2
You can refer to products genuine fire alarm equipment...HERE
You will receive a quote from us as soon as possible..
