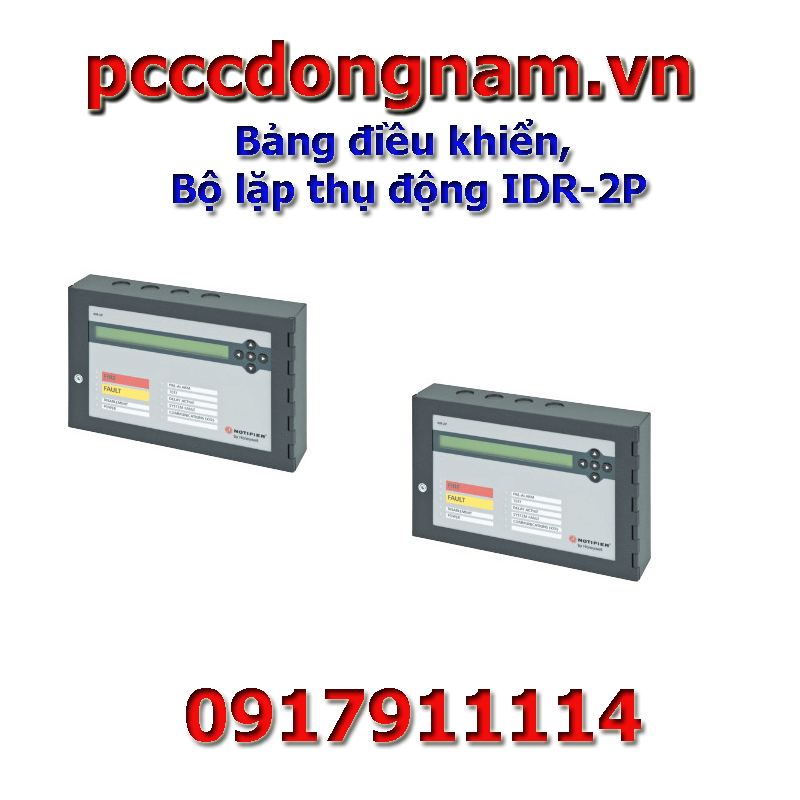

Detailed Description Panel, Passive Repeater IDR-2P
The IDR2P passive repeater is repeater only. The backlit LCD display and general system status LEDs follow the instructions on the main fire alarm panel. Furthermore, the IDR2P passive repeater has configuration and test functions such as Lamp Test, LCD Test and Buzzer Test. Nine LEDs provide a quick summary of general system status to the user. Compact design makes it easy to install and operate IDR Series repeaters. The repeater event log can store up to 150 most recent events.
Mechanical Specifications Control Panel, Passive Repeater IDR-2P
• Size - Height: 165 mm - Width: 254 mm - Depth: 50 mm
• Weight: 1.7 Kg (approx.)
• Material: Light steel plate shell
• Maximum wire gauge for terminals: 0.5mm2 to 2.5mm2
Electrical Specifications Panel, Passive Repeater IDR-2P
• Operating voltage: 18-32V dc
• Static current: 90mA
• Alarm current: 120mA (-2P / -2A), 155mA (-6A)
• Media: RS485 . 2-wire serial link
• Selectable address range in the range 0-31 (0 unattended and unused except during power-up testing)
Environmental parameters Console, Passive Repeater IDR-2P
• Operating temperature range: -5°C to +45°C
• Humidity: Relative humidity 5 to 95% (non-condensing)
• Panel sealing: IP 30, (EN 60529)
• Vibration: EN 60068-2-6 , 10-150Hz at 0.981ms-2 (Meets the requirements of EN 54-2/4)
• EMC emissions: EN 50081-1Immunity: EN 50130-4
• Safety: EN 60950
