Wall Speakers, Speaker-Strobes Genesis G4 Series

Manufacture: kidde
Product code: G4

The Genesis line of life safety and emergency communications speakers and speaker-strobes combine high performance output with a low profile design to deliver a life safety audio solution that’s as versatile as it is effective ✔️
✅ Protruding no more than one inch the wall, these appliances blend inconspicuously with any decor.

Zalo

Consulting hotline: 0944934114
Product information

- Optional amber lens tints, ALERT or FIRE markings, and red or white housing colors ensure there is a device for every application, including mass notification and emergency communications.

- Speakers feature selectable wattage taps, while speaker-strobes allow for both wattage and light output levels to be configured in the field. Both settings remain clearly visible — even after final installation, which allows devices to be easily fine-tuned to achieve maximum benefit in exchange for the lowest possible system overhead

- High fidelity models meet the NPFA 520 Hz requirements for newly construced commercial sleeping areas. They also produce crisp, clear voice audio output that is highly intelligible over large areas

- All Genesis speakers include a DC blocking capacitor to allow electrical supervision of the audio distribution circuit. Models for 25 VRMS and 70 VRMS audio circuits are available. With their sealed back construction, these speakers are extra durable and provide outstanding audibility.

Standard Features

• High Fidelity 520 Hz speaker models available

- Low frequency output meets NFPA standards for newly constructed commercial sleeping areas; increases sound fidelity and audio intelligibility.

• Unique low-profile design

– The most compact UL/ULC listed speaker-strobe available

– Ultra-slim, protrudes a mere one inch the wall

– Attractive appearance, no visible mounting screws

• Field configurable

– no need to remove the device

– ¼, ½, 1, or 2 watt operation and selectable candela output with convenient switches that remain visible even after the unit is installed

• Mass Notification models available with amber lenses

• Unparalleled performance

– loud 90 dBA output ensures clear, crisp audio

– Exclusive FullLight strobe technology produces even light distribution

– Precision timing electronics meet tough synchronizing standards for strobes when used with compatible modules

– Optional field-configurable temporal strobe output

– 25 Vrms and 70 Vrms models available, all supplied with a DC blocking capacitor for audio circuit supervision

• Easy to install

– Fits all standard 4-inch square electrical boxes with plenty of room behind the signal for extra wire

– no extension ring or trim plate needed – #18 - #12 AWG terminals

– ideal for long runs or using existing wiring

Installation and Mounting

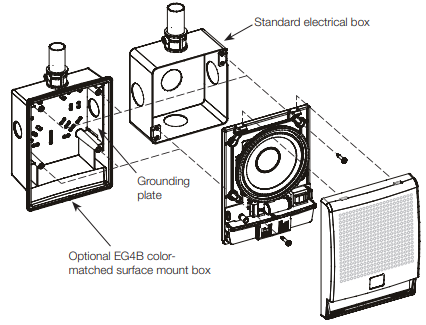

- All models are intended for indoor wall mounted applications only. Speakers and speaker-strobes are flush mounted to a NorthAmerican 4” square electrical box, 21 /8” (54 mm) deep or a European 100 mm square box. Signals may be surface mounted to a Genesis surface-mount box (see ordering information for details).

- Two tabs at the top of the signal unlock the cover to facilitate mounting. The shallow depth of Genesis devices leaves room behind the signal for extra wiring. Once installed with the cover in place, no mounting screws are visible

Wall Speakers, Speaker-Strobes Genesis G4 Series

- Kidde recommends that these speaker-strobes always be installed in accordance with the latest recognized edition of national and local codes. Refer to installation sheet for mounting height information.

Specifications

- Genesis Speakers and Speaker-Strobes

Housing Red or white textured UV stabilized, color impregnated engineered plastic
Dimensions Height: 6.5” (165 mm). Width: 5” (127 mm). Depth to wall: 1” (25 mm).
Mounting (indoor wall mount only)

Flush: North-American 4” square box, 2 1/8” (54 mm) deep.

Surface: model EG4B (white) or EG4RB (red) surface mount box

Wire Connections Screw terminals: separate polarized inputs for speaker and strobe, #18 to #12 AWG (0.75 mm² to 2.5 mm²) wire size
Operating environment 32-120° F (0-49° C) ambient temperature; 0-93% relative humidity.
Agency listings and approvals, G4 Models Meets ULC-S541, year 2004 UL requirements for standards UL1638 and UL1971. Complies with UL1480 Fifth Edition. UL/ULC File Number: S2813. FM, MEA, CSFM approved. CSFM File Number: 7320-1657: 0211/0285. Speaker-strobes comply with ADA Code of Federal Regulation Chapter 28 Part 36 Final Rule.
Agency listings and approvals, Low Frequency G4HF Models UL 464 Listed for low frequency signaling applications. Meets ULC-S541, year 2004 UL requirements for standards UL1638 and UL1971. Complies with UL1480 Fifth Edition. FM, MEA, CSFM pending. Speaker-strobes comply with ADA Code of Federal Regulation Chapter 28 Part 36 Final Rule.

- Speakers

Input/Operating Volts 25 VRMS or 70 VRMS. See ordering information
Speaker Cone Speaker frequency response: 400 to 4,000 Hz. Optimized for voice intelligibility. 4-inch (102mm) mylar cone, sealed back construction.

- Strobes

Clear Strobe Output Rating

UL 1971, ULC S526: selectable 15 cd, 30 cd, 75 cd, or 110 cd output

UL 1971: 15 cd (fixed 15/75 cd models)

UL 1638, ULCS526: 75 cd (fixed 15/75 cd models)

Amber Strobe Output Rating UL 1638: 13 (D), 26 (C), 65 (B), 95 (A)
Strobe Operating Voltage 16 - 33 Vdc Regulated, 16-33 V Full wave rectified (UL Voltage Designations “Regulated 24” and “24 fwr”)
Strobe Flash Rate One flash per second.
Strobe Flash Synchronization All strobes: one flash per second (fps) within 200 milliseconds over 30 minutes on common circuit. All strobes: Synchronization source required to comply with UL 1971 synchronization standard. Temporal setting (private mode only): synchronized to temporal output on the same circuit.
Synchronization Sources FACPs: VM and VS Series life safety systems, FX Series fire alarm control panels. Moduels: GSA-CC1S, GSAMCC1S, SIGA-CC2A, GSA-MCC2A, EG1M-RM. Power supplies: MIRBPS6A, MIRBPS10A, APS6A, APS10A.
Strobe Lens Material Polycarbonate
