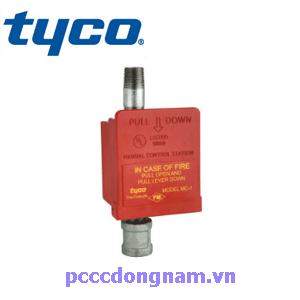

Tyco MC-1 Manual Trigger
Replacement Break Rod for Model MC-1 Tyco USA ApprovalsUL and UL ListedFM ApprovedWorking Water Pressure20 to 300 psi (1,4 to 20,7 bar)Minimum Ambient TemperatureDry Pilot Lines: −50
°F (−46
°C)Wet Pilot Lines: 40
°F (4
°C)
Tyco Manual Trigger: MC-1 the Model MC-1 Manual Control Sta- tion provides a tamper resistantmeans for emergency release of Tyco Fire Products Deluge and Pre- action Valves. Interconnection with the valves may be direct via hydraulic pilot line or indirect via pneu- matic (dry) pilot line to a Model DP-1 Dry Pilot Actuator. The Model MC-1 Manual Control Sta- tion is a redesignation for the Central Model MC, Gem Model F180, and Star Model S480.
Technical Data
Approvals
UL and ULC Listed. FM and LPCB
Approved.
Working Water Pressure 20 to 250 psi (1,4 to 17,2 bar)
Minimum Ambient Temperature
Dry Pilot Lines: -50F/-46C
Wet Pilot Lines: 40F/4C
Assembly The box and cover in Figure 1 are thermoplastic. The elastomer water seal is Teflon.
