TCPA-10 Medium Power Speaker HyperSpike Series

Product code: TCPA-10

The EDWARDS HyperSpike® TCPA-10 ✔️✅ is intended for indoor and outdoor audio signaling and notification ✔️✅ The five power settings have been designed to interface with industry standard amplification. Its 90
° wide acoustic beam makes it an ideal notification tool for indoor and outdoor areas. The optional dual-mount system creates a 180
° wide beam that is ideal for outdoor perimeter use.

Zalo

Consulting hotline: 0944934114
Product information

Its best-in-class acoustic coverage allows for fewer units to be installed in large indoor and outdoor areas, lowering installation and long-term maintenance costs, while also improving intelligibility and aesthetics. Best-in-industry voice quality and intelligibility, combined with sharp and high impact tone capability, make it the right choice for ensuring messages are heard and understood.

Standard Features

• Industry Leading Voice Intelligibility (STI PA = Excellent)

• 139dB Max SPL @ 1 meter

• Rated for indoor or outdoor applications

• UL-listed and non-listed models

• Universal mounting interface

• Built-in transformer (25V, 70V, &100V)

• Durable environmental-resistant construction

• Performs to NEMA 3R standards

• UL listed for Class l, Division 2, Groups A, B, C, D

Wiring

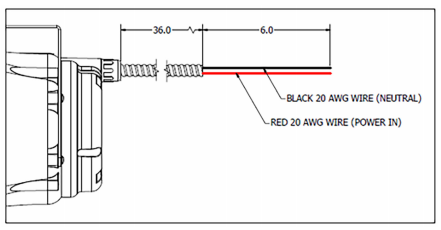

The TCPA-10 has a three-foot long ¼ trade size flexible conduit with 20 AWG wires exiting the end. The power tap selection switch is located on the front of the unit (see Figure 2 in Interface and Mounting Reference).

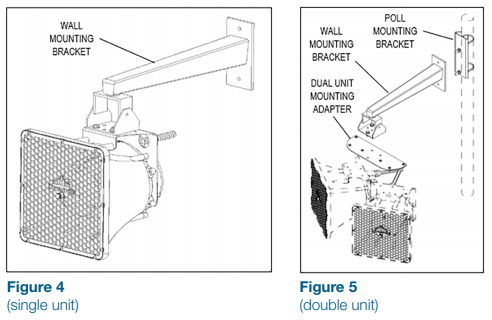

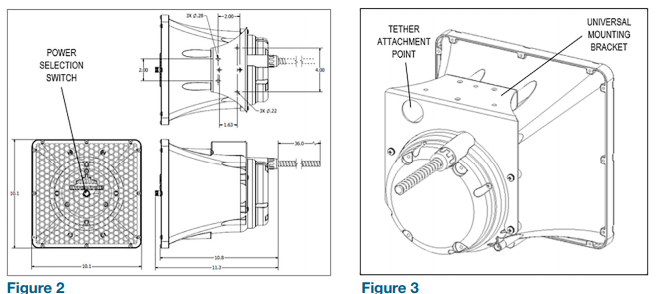

TCPA-10 Medium Power Speaker HyperSpike Series

Interface and Mounting Reference

TCPA-10 Medium Power Speaker HyperSpike Series

TCPA-10 Medium Power Speaker HyperSpike Series

Specifications

General Specifications:
Certifications UL 1480, ULC, CSFM, Class I, Division 2, Groups A,B,C,D
Power Rating Up to 45W continuous
Frequency Response

375Hz – 15kHz (nominal)

400Hz – 4kHz (general signaling)

Sensitivity 112dB @ 1W/1m (Avg 400-4,000Hz) frequency dependent
Dispersion Angle 60° (-3dB), 90° (-6dB)
Weight 9 lbs
Dimensions 10.1”H x 10.1”W x 11.3”D
Operating Temperature Range -40°C - 60°C

Engineer Specifications

Voice paging and tone signaling loudspeaker shall be Edwards Part Number _____ (see Part Numbers in chart below). Unit shall be UL1480 listed and Class I Division 2 certified, weather resistant and constructed of rugged 5VA flammability rated, UV resistant ABS plastic. The loudspeaker shall be able to operate within any ambient temperature environment ranging -40°C to 60°C. The speaker shall have a sensitivity of 112dB when measured at 1m (AVG 400-4,000Hz) and a beam width of 90° (-6dB at 1kHz). Model shall be a non-re-entrant compression-loaded transducer with a 3” polyimide diaphragm and power handling of 45W continuous. The transducer coil shall be a nomimal 8 ohm impedance and ferro-fluid shall surround the coil to optimize heat dissipation. Transformer power settings shall be selectable and include 100V: 45W, 32W, 24W, 16W, 8W; 70V: 24W, 16W, 12W, 8W, 4W; 25V: 3W, 2W, 1.5W, 1W, 0.5W. Speaker shall contain in-line capacitor to allow DC supervision of wiring and be supplied with 3’ of 5VA flammability rated conduit with flying leads.

Environmental Specifications:

Enclosure Performs to NEMA 3R standards
Operating Temperature -40°C - 60°C
Humidity Range 0-75% non-condensing

Ordering Information

Part Number Description
Non-Listed Distributed Audio Speakers
90215A-801-01 Distributed Audio Speaker with 5 selectable power taps that run off of 25V, 70V and 100 VRMS audio systems. Black
90215A-801-04 Distributed Audio Speaker with 5 selectable power taps that run off of 25V, 70V and 100 VRMS audio systems. Gray.
90215A-801-05 Distributed Audio Speaker with 5 selectable power taps that run off of 25V, 70V and 100 VRMS audio systems. Red.
90215A-801-06 Distributed Audio Speaker with 5 selectable power taps that run off of 25V, 70V and 100 VRMS audio systems. White
UL Listed Distributed Audio Speakers
90215A-801-01-L UL 1480 listed C1D2 certified TCPA-10 Distributed Audio Speaker with 5 selectable power taps that run off of 25V, 70V and 100 VRMS audio systems. Black.
90215A-801-04-L UL 1480 listed C1D2 certified TCPA-10 Distributed Audio Speaker with 5 selectable power taps that run off of 25V, 70V and 100 VRMS audio systems. Gray.
90215A-801-05-L UL 1480 listed C1D2 certified TCPA-10 Distributed Audio Speaker with 5 selectable power taps that run off of 25V, 70V and 100 VRMS audio systems. Red.
90215A-801-06-L UL 1480 listed C1D2 certified TCPA-10 Distributed Audio Speaker with 5 selectable power taps that run off of 25V, 70V and 100 VRMS audio systems. White.
Mounting Hardware
72377B-801 TCPA-10 Wall Mount Bracket
72378B-801 TCPA-10 Dual Unit Mounting Adapter
72379B-801 TCPA-10 Pole Mount Adapter
