Surface Mount Boxes 27193 Series - Gang Type

Manufacture: kidde
Product code: 7193 Series

27193 Series Surface Mount Boxes ✔️
✅ are multi-gang utility boxes designed for surface mounting where a heavy-duty general purpose box is required ✔️
✅ Devices can be mounted to pre-drilled and tapped (#6-32) holes in standard one-gang to five-gang mounting configurations.

Zalo

Consulting hotline: 0944934114
Product information

- The 27193 boxes are finished in a durable baking enamel and are available in two standard colors. White versions are available for easy custom finishing to match the decor on site. They are constructed heavy duty 16 gauge cold rolled steel (CRS) for maximum durability.

- The 27193 boxes are easily surface mounted with screws using the mounting holes provided in the back of the box. All boxes are provided with convenient combination 1/2 inch and 3/4 inch conduit knockouts on the top, bottom and rear side. Each box also includes a grounding provision.

Standard Features

• One to five gang

• Fire red or bright white

• Durable baked finish

• Sturdy steel one-piece construction

• Grounding provision

• Combination ½ inch & ¾ inch knockouts

Application

These surface mount boxes are suited for a variety of uses including:

- End-of-Line Resistors Manual Pull Stations CO2 Discharge Stations Signature Series Modules Signature Series Modules

- One-gang Fire Red Halon Discharge Stations Two-gang White One-gang White

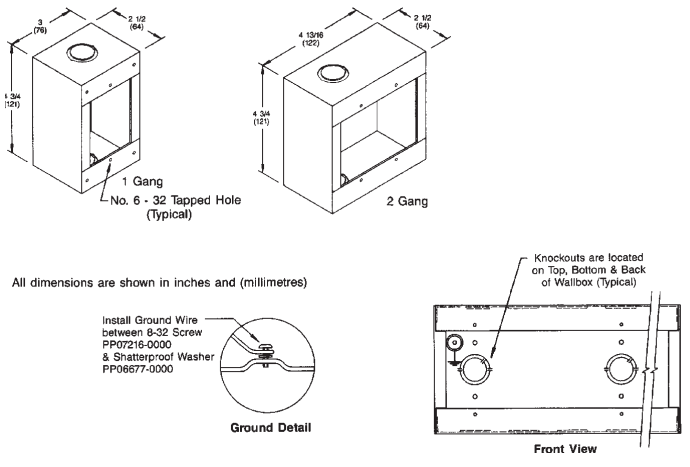

Dimensions

Surface Mount Boxes 27193 Series - Gang Type

Ordering Information

Color/Finish 1-gang 2-gang
Fire Red 27193-11 27193-21
Bright White 27193-16 27193-26
27193-11-NY Red single-gang surface box without bottom knockout, for New York City School Construction Authority



Box Size 1-gang 2-gang
Ship Weight - Ibs. (kg) 1 (0.4) 2 (0.8)
