Solator Module GSA-IM
Overview ⭐
✅ The GSA-IM Isolator Module is part of Kidde’s Signature Series system. This intelligent device enables part of the Signature data loop to continue operating should a short circuit occur. The module can be wired a Class A data loop at any point. If a fault occurs, the isolator cuts power to all devices beyond the isolator on the loop as follows: ⭐
✅ a short on the line causes all isolators to open within 23 msec. ⭐
✅ at 10 msec intervals, beginning on one side of the Class A circuit nearest the loop controller, the isolators close to provide the next isolator down the line with power.⭐
✅ when the isolator next to the short closes, it reopens within 10 msec. Once activated, the line fault isolator continuously checks the faulted side of the loop to determine if the short still exists. When the fault is corrected and system reset, the module automatically restores the entire data loop to the normal condition. The microprocessor in every Signature module provides at least three important benefits — Self-diagnostics and History Log, Automatic Device Mapping, and Fast, Stable Communication.
Standard Features
• Automatic device mapping Each module transmits wiring information to the loop controller regarding its location with respect to other devices on the circuit.
• Electronic addressing Addresses are downloaded and permanently stored a PC, or the SIGA-PRO Signature Program / Service Tool. There are no switches or dials to set.
• Ground fault detection by address Detects ground faults right down to the device level.
• 2-gang mounting
• Designed to ISO 9001 standards
Application
This module should only be used on Class A circuits. The operation of the GSA-IM is determined by its hardware type code and is assigned at the factory. No user configuration is required.

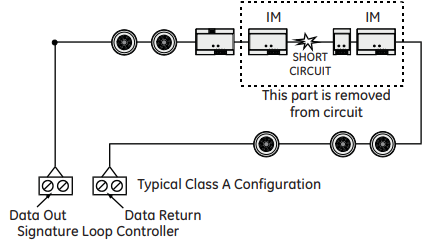

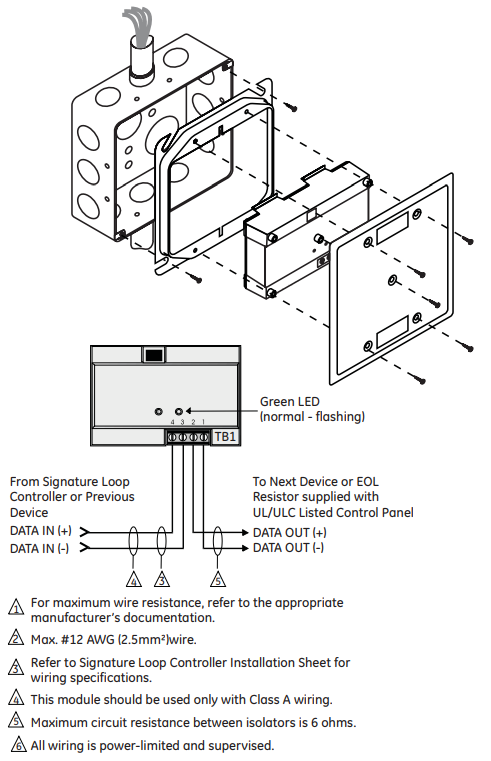

Typical Wiring
.png "Solator Module GSA-IM")
.png "Solator Module GSA-IM")
.png "Solator Module GSA-IM")
Specifications
| Description | Isolator Module - factory set hardware type code |
| Address Requirements | Uses One Detector Address |
| Circuit Resistance | Six ohms maximum between isolators |
| Operating Current | Standby = 45µA; Activated = 45µA |
| Operating Voltage | 15.2 to 19.95 Vdc (19 Vdc nominal) |
| Construction & Finish | High Impact Engineering Polymer 2-gang front plate - White Finish |
| Storage Environment | Temperature: -4°F to 140°F (-20°C to 60°C) |
| Operating Environment | Temperature: 32°F to 120°F (0°C to 49°C); Humidity: 0 to 93% RH |
| LED Operation | On-board Green LED - Flashes when polled (normal) |
| Compatibility | Use with: Signature Loop Controller |
| Agency Listings | UL, ULC, CSFM, MEA, FM |
Ordering Information
| Catalog Number | Description | Ship Wt. lb (kg) |
| GSA-IM | Fault Isolator Module - UL/ULC Listed | .5 (.23) |
Accessories
| 27193-21 | Surface Mount Box - 2-gang RED | 1 (.4) |
| 27193-26 | Surface Mount Box - 2-gang WHITE | |
| MFC-A |
Multifunction Fire Cabinet - Red, supports Signature Module Mounting Plates |
7.0 (3.1) |
| GSA-MP1 | Signature Module Mounting Plate, 1 footprint | 1.5 (0.70) |
| GSA-MP2 | Signature Module Mounting Plate, 1/2 footprint | 0.5 (0.23) |
| GSAMP2L | Signature Module Mounting Plate, 1/2 extended footprint | 1.02 (0.46) |
