RR-32RL Pull Station Relocator
The Manual Station Relocator is designed to lower the height of a fre alarm pull station to meet ADA requirements. Most existing pull stations are mounted 60 inches (1524mm) or higher above the floor. The Relocator lowers the height to 48 inches (1220mm) without the need for pulling new wires or moving the existing electrical box.
The Relocator is the easiest and most economical way to lower existing pull station. Simply remove the existing pull station the wall. Connect field wiring to Relocator terminals. Relocator terminals. Reconnet the exsting (or new) pull station to wire reads on the front of the Relocator. The Relocator is made rugged aluminum and finished with an attactive beige finish A large blue/white wheelchair decal is applied to the front to clearly indicate pull station accessibility.
.png "RR-32RL Pull Station Relocator")

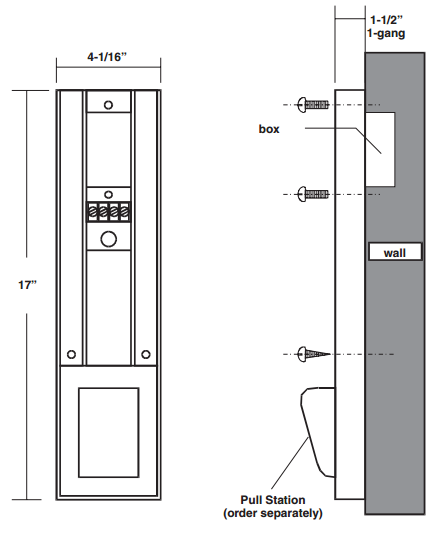

Installation and Mounting
To install, simply remove the exsting atation the wall,attach the Relocator to the electric box and attach the field wires to the terminal block in the back ofthe Relator.
Adwardsrecommends that fire alarm systems and devices always be installed in accordance with the latest recognized edition of national and local fire alarm codes.
.png "RR-32RL Pull Station Relocator")
Standard Features
ADA compliant : Meets physical requirememt for ADA devices.
Universal design : Compatible with most brands of pull station.
Fasst installation : The simple design ensures very fast, verry easy instllation.
Screw terminal wire connection : Large terminals helps speed installation; accepts up to #12 AWG (2.5mm2) wire.
One-gang mounting
UL listed
Application

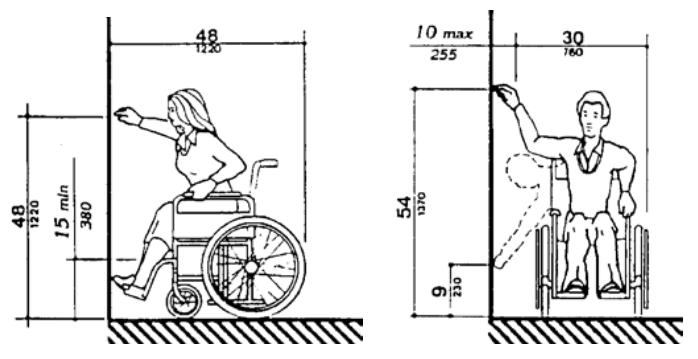

ADA requires the pull stations be mounted 54 inches (1370mm) off the finished floor for wheelchair side access and 48 inches (1220 mm) for front access.
To fully conply with ADA you must use a pul station that is certifies to operate with 5lb pull or less. Edwards manual pull stations meet this criteria.
The Relocator is designed for indoor use only.
Specifications
| Construction | Aluminum with beige paint finish |
| Markings | Supplied with large blue/white wheelchair decal |
| Field wire Connetions | Terminals -#12 AWG (2.5 mm2) maximum |
| Operationg Environment | 85% @ 30o C relative humidity; 32-120oF (0-49oC) ambinet temperature |
| Mounting | Mounts to flush one-gang electric box |
| Agency Listings | UL (all models comply with ADA Code of Fedenal Regulation Chapter 28 Part 36 Final Rule) |
Ordering Information
| Cataloge number | Description | Ship Wt - lb ( kg) |
| RR-32RL | Pull Station Relocator | 1 (0.4) |
