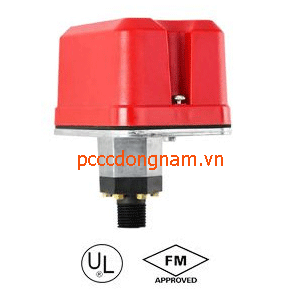

Pressure Switches v03-10 and v03-40
Pressure switch, also known as Alarm pressure switch manufactured by TPMCSTEEL, imported and distributed nationwide by Southeast Company, always ensures quality for fire protection systems, best price, please contact us for details. answers.
An alarm pressure switch is equipped on the alarm check valve to indicate discharge the sprinkler side and automatically transmits the signal to the main control panel. It contains two SPDT switches and features field pressure sensitivity adjustment to provide a 4-20 psi / 10-100 psi alarm response.

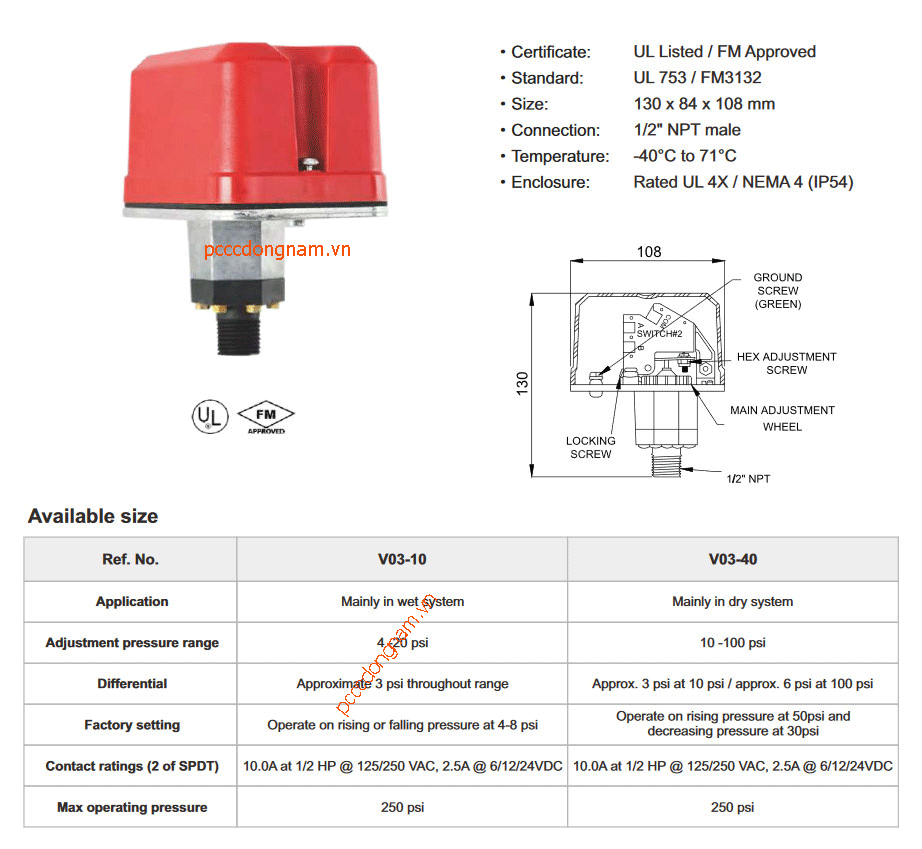

Parameters of pressure switch TPMCSTEEL Certifications: UL Listed / FM Approved Standard: UL 753/FM3132 Dimensions: 130 x 84 x 108mm Connection: 1/2 male NPT Temperature: -40°C to 71°C Included: UL 4X / NEMA 4 Rated (IP54) China Drawing of pressure switch TPMCSTEEL
You will receive a quote from us as soon as possible..
