Multi-purpose LoudspeakerHPSA15

Manufacture: kidde

Product code: HPSA15

The HPSA15 loudspeaker is a highly-efficient double re-entry loudspeaker that delivers 15 watts of continuous power. Its unique design provides exceptional intelligibity,, making it ideal for fire alarm and life safety applications. It is UL 1480 listed as a fire protection signalling speaker

Product information

- The HPSA15 operates within a nominal frequency response range of 400-14,000 Hz and provides audible output of 120 dB (peak at one meter) at rated power. It includes a versatile, three-way, 25/70.7 V line transformer that meets a variety of distributed system needs. The transformer is adjustable by means of a convenient Seven-position, watt/impedance selection witch.. This labor-saving switch is screwdriver adjustable and includes a protective cover with built-in cable strain elief.

- The HPSA15 features an innovative mounting bracket that, with a single adjustment, provides precise positioning in both cal and the vertical and horizontal plane. It also allows the HPSA15 to be installed on conventional surfaces or strap-mounted on I-beams or pillars. Durable epoxy coated metal and ABS plastic components are weather-resistant suitable for indoor or outdoor use

Standard Feature

Superior intelligibility for voice and tone signaling

High-effi ciency driver with proven performance reliability

Suitable for installation on supervised circuits

Includes a versatile 25/70.7 transformer for line applications

UL 1480 listed as fi re protective signalling speakers

Adjustable bracket for precise positioning

Environment resistant for outdoor and indoor use

Available in gray or red finish

Application

HPSA15 weather-resistant loudspeakers features highly intelligible voice and signal transmission for medium-power indoor and outdoor fire alarm, mass notification, and security applications. They incorporate effciency compression drivers that project sound over long distances or wide areas with fewer loudspeakers. HPSA15 loudspeakers are ideal for installation in commercial buildings, distribution centers, factories, schools, public access areas, civic centers and recreational facilities. They are suitable for installation or supervised circuits.

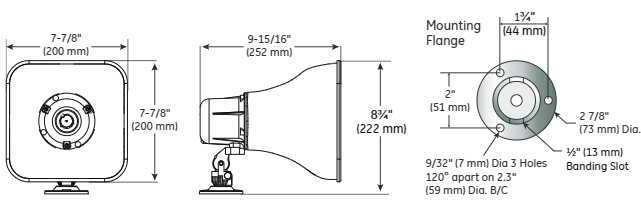

Mounting

Multi-purpose LoudspeakerHPSA15

Specifications

Power Rating	15 Watts
RMS Frequency Response	400 - 14,000 Hz
Sensitivity	120dB at 15 watts (Peak) / 1 Meter 116dB at 15 watts / 1 Meter (lavg) 500-6.000 Hz 106dB 1 Watts / 1 Meter (lavg) 500-6.000 Hz
Capacity Rating	5 mfd
Power Taps	1, 2, 3,8, 7,5, 15 @ 70,7V
Dispersion	70 °
Conduit	1/2" connection
Sound Lvel	103 dB (UL 10' Rating)
Operating Environment	All models meet or exceed the UL Listed standard for audible signal appliances and are capable operating within an ambient temperature range of 66 ° C (150 ° F) to -35 ° C
Listings	UL 1480

Ordering Information

Part Number	Description	Ship Wt.,lb (kg)
HPSA15R2570	15-watts loudspeaker, red	5,0 (2,27)
HPSA15G2570	15-watts loudspeaker, grey	5,0 (2,27)
