Multiple Tone Signal 5530MD-24AW

Manufacture: INGESCO

Product code: 5530MD-24AW

The EDWARDS 5530MD-24AW Adaptatone Millennium is a heavy-duty industrial, tone-selectable, stand-alone, signaling device capable of producing volume-controlled, high-decibel tones. It uses a microprocessor circuit to create 27 distinctive tones. A single tone may be selected by setting a miniature dip switch within the unit The Adaptatone Millennium can be activated a 24 Vdc external voltage source such as an output of a PLC or Fire/Security panel.

Product information

Standard Features

• Diode Polarized

• Stand-alone, 27 tone capability

– no additional tone modules needed

• Four 3-pulse temporal tones

• New “soft” tones

• Single Input, Single Output

• Weatherproof

• Corrosion-resistant heat-flowed epoxy finish

• Captive Components

• Speaker can be rotated and locked in any horizontal direction

• Signal activates directly a supervised output

Application

The 5530MD-24AW is designed for industrial applications requiring high decibel output and electrical supervision of signaling circuit field wiring. The signal may also be used for unsupervised signaling applications. Typical applications include emergency warning systems, plant evacuation and security intrusion alarms, process monitoring, shift start-and-dismissal horns, and paging signals.

Installation

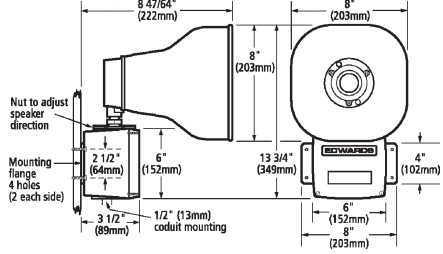

The 5530MD-24AW is designed for either 1/2” (13 mm) conduit or surface mounting

Multiple Tone Signal 5530MD-24AW

Specifications

Output	15 Watts to 110 dB @ 10 ft
Construction	Heavy-duty zinc cast
Operating Voltage	20-31 Vdc
Standby Current Current	0.10 amps
Signal On Operating Current	0.80 amps
Hazardous Location Ratings	Class I, Division 2, Group A,B,C, and D; Class II, Division 2, Group F and G; and, Class III, Division 1 and 2
Agency Listings	UL & ULC Listed for indoor and outdoor applications

Ordering Information

Catalog Number	Description	Ship Wt. lb (kg)
5530MD-24AW	Polarized Multiple Tone Signal	25.0 (11.5)
