Lightweight Medium Power Speaker ArraysHyperspike Series

Manufacture: kidde
Product code: Hyperspike® Series

Kidde brand Hyperspike Series Medium Power ⭐
✅ loudspeakers employ exclusive HyperSpike® technology to deliver lightweight and acoustically sophisticated solutions for large indoor and smaller outdoor mass notification installations  ⭐
✅ These rugged units are among the industry’s smallest in physical size, yet they reproduce some of the clearest and loudest audio signals available for this range of service. Three medium power arrays are available


Consulting hotline: 0944934114
Product information

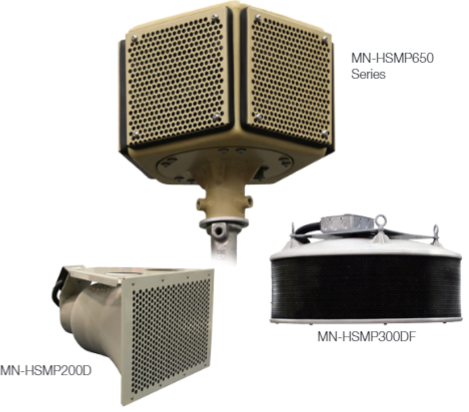

- The MN-HSMP650 Series has a 360 degree omnidirectional sound dispersion pattern and can handle 650 Watts of crystal- clear audio power. It is rated for indoor or outdoor use.

- The MN-HSMP300DF is a grey indoor-rated omnidirectional unit rated for 300 Watts of continuous audio power.

- The MN-HSMP200D is a directional loudspeaker that handles 200 Watts of continuous audio. It is ideal for indoor applications. The TCPA is intended for outdoor use as well.

Lightweight Medium Power Speaker ArraysHyperspike® Series

- The unique design of Hyperspike Series Medium Power loud speakers allow for a 100 percent up-time duty cycle. When powered an AC source, they can be powered and ready to perform 24/7. This makes them ideally suited for daily activation, as well as emergency use.

- Hyperspike Series Medium Power loudspeakers can be permanently installed, or can be configured for portable use. They can be powered a local audio power amplifier or an Hyperspike Series remotely-mounted, factory assembled Electronics Control Cabinet (ECC)

Standard Features

• Highly intelligible audio performance

• 24/7/365 duty cycle

• Easy, flexible installation

• Lightweight

• Rugged design

MN-HSMP650 Series

• Omnidirectional

• 650 Watt Output

• 3,281 ft (1,000 m) usable range

• Indoor and Outdoor Rated


• Omnidirectional

• 300 Watt Output

• Indoor Rated


• 70°x80° Sound Dispersion

• 200 Watt Output

• Indoor and Outdoor Rated


Typical applications for MN-HSMP Series loudspeakers are

• Large indoor open areas

• Factories

• Production & processing facilities

• Industrial complexes

• Refineries

• Power plants

• Universities, Colleges & High Schools

• Parking lots

• Military bases

• Force protection

• Ships

• Piers

• Docks

• Camp Grounds

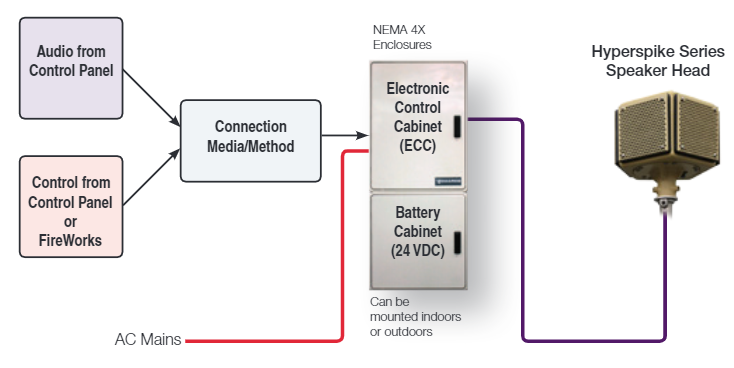

Typical Deployment

Lightweight Medium Power Speaker ArraysHyperspike® Series



Maximum Output 650 Watts 300 Watts 200 Watts

Maximum Sound Pressure

(1kHz Tone)

118 dBA Fast @ 1m 19 dBA Fast @ 1m 138 dBA Fast @ 1m
Sound Dispersion (@ 1kHz)









Weight 20 lb (9.1 kg) 22 lb (10.0 kg) 26 lb (11.8 kg
Height 11.5 in (29.2 cm) 10 in (25.4 cm) 1 in (27.9 cm)
Width Diameter: 13.24 in (33.6 cm) Diameter: 22 in (55.9 cm) W x L: 22 x 16 in (55.9 x 40.6 cm)
Color Tan or Gray Gray Gray
Mounting 2 in (50.8 mm) OD Mast / Eyebolts Eyebolts Bracket / Eyebolts
Application ndoor or Outdoor Indoor Indoor / Outdoor
Termination 8 ft. (2.4 m) Conduit, Copper Conductors Terminals Terminals

Operating Temperature: -4 to 140 °F (-20 to 60 °C); Relative Humidity: 0% to 95% (non-condensing)

Speaker Head: Outdoor operating temperature: -40 °F to 140 °F (-40 °C to +60 °C)

ECC (without heater/cooling system):

Indoor operating temperature: +32 °F to +120 °F (0 °C to 49 °C); Humidity: 0% to 95% (non-condensing

Electronics Control Cabinet
Dimensions 70 x 30 x 12 in (177.8 x 76.2 x 30.5 cm)
Weight (without batteries) 242 lb (109.8 kg

Ordering Information

Lightweight Medium Power Speaker ArraysHyperspike® Series

Lightweight Medium Power Speaker ArraysHyperspike® Series

Lightweight Medium Power Speaker ArraysHyperspike® Series
