KI-OSD Intelligent Optical Smoke Detecto
KI-OSD Optical Smoke Detector ⭐
✅ uses an optical sensing chamber to detect smoke ⭐
✅ The detector analyzes data gathered by the sensor to determine when an alarm is initiated.Thanks to its high performance optical sensing chamber, the KI-OSD responds quickly and reliably to a wide range of fre types, especially slow burning fres fuelled by combustibles typically found in modern multi-use buildings. The KI-OSD detects extremely small particles and triggers an alarm at the frst sign of smoke.
Standard Features
• Patented multi-criteria optical smoke sensing technology
• Wide 0.5 to 4.36 %/ft. (1.6 to 13.6 %/m) smoke obscuration
• Uses Existing Wiring
• Integrated nuisance rejection reducing unwanted alarms general cooking particulates
• Listed to UL 268 7th edition
• Automatic Device Mapping
• Up To 250 Total Kidde Intelligent Addresses Per Loop
• Two Levels of Environmental Compensation
• Two Levels of Dirty Detector Warning
• Twenty Pre-Alarm Settings
• Five Sensitivity Settings
• Non-Volatile Memory
• Electronic Addressing
• Environmental compensation
• Automatic Day/Night Sensitivity Adjustment
• Bicolor (Green/Red) Status LED
• Standard, Relay, Fault Isolator, and Audible Mounting Bases
• Sensor Markings Provide Easy Testing Identifi cation
Standard Detector Base, KI-SB, KI-SB4
This is the basic mounting base for KIDDE Intelligent Series detectors. The GSA-LED Remote LED is supported by this Base
.png "KI-OSD Intelligent Optical Smoke Detecto")

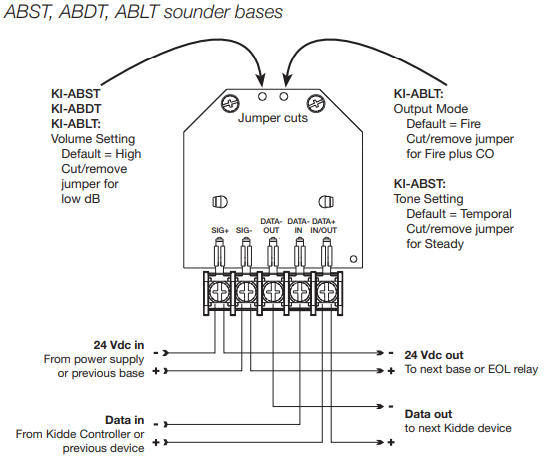

Audible Sounder Bases, Fire Mode
.png "KI-OSD Intelligent Optical Smoke Detecto")

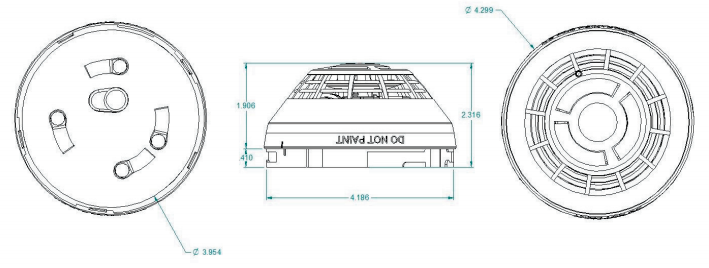

Dimensions
.png "KI-OSD Intelligent Optical Smoke Detecto")
Specifications
| Operating voltage | 15.20 to 19.95 VDC |
| Normal operating current | 32 μA |
| Alarm current | 45 μA |
| Smoke Sensitivity Range | UL/ULC: 0.5 to 4.36 %/ft. (1.6 to 13.6 %/m) obscuration |
| Vibration level | 10 to 35 Hz, with an amplitude of 0.01 in. |
| Air velocity | 0 to 4,000 ft./min (0 to 20 m/s) |
| Wall mounting | 12 in. (305 mm) max. ceiling |
| Compatible bases | See Ordering Information |
| Compatible detector testers | Testifi re 1000, Testifi re 2000 |
| Operating environment | 32 to 120°F (0 to 49°C), 0 to 93% RH, noncondensing |
| Construction | High Impact Engineering Polymer, White |
| Storage temperature | -4 to 140°F (-20 to 60°C) |
| Environmental compensation | Automatic |
| Agency Listings | CAN/ULC-S529, UL 268-7, UL 268A, CSFM, FM |
Ordering Information
| Catalog Number | Description | Ship Wt. lbs (kg) |
| KI-OSD | Intelligent Optical Smoke Detector | 0.4 (0.16) |
Accessories
| KI-SB | Detector Mounting Base - Standard | 0.2 (.09) |
| KI-SB4 | 4-inch Detector Mounting Base c/w Trim Skirt | |
| KI-RB | Detector Mounting Base w/Relay | |
| KI-RB4 | 4-inch Detector Mounting Base w/Relay, c/w Trim Skirt | |
| KI-IB | Detector Mounting Base w/Fault Isolator | |
| KI-IB4 | 4-inch Detector Mounting Base w/ Fault Isolator, c/w Trim Skirt | |
| GSA-LED | Remote Alarm LED | |
