Isolator Detector Base KI-IB and KI-IB4
Manufacture:
kidde
Product code:
KI-IB and KI-IB4
This base includes a built-in line fault isolator for use on Class A circuits. A detector must be installed for it to operate ✔️
✅ The isolator base does not support the GSA-LED Remote LED ✔️
✅ Hotline : 0917 911 114
Product information
The isolator operates as follows: - a short on the line causes all isolators to open within 23 msec - at 10 msec intervals, beginning on one side of the Class A circuit nearest the loop controller, the isolators close to provide the next isolator down the line with power - when the isolator next to the short closes, it reopens within 10 msec. The process repeats beginning on the other side of the loop controller.
.png "Isolator Detector Base KI-IB and KI-IB4")

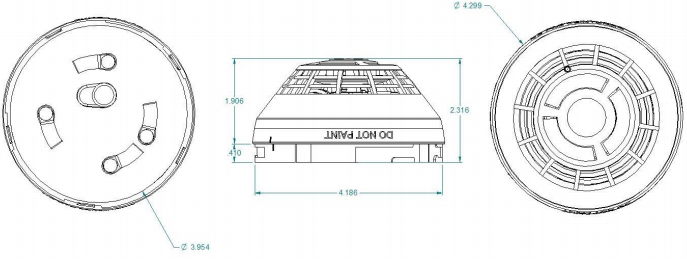

Dimensions
.png "Isolator Detector Base KI-IB and KI-IB4")
Specifications
| Operating voltage | 15.20 to 19.95 VDC |
| Normal operating current | 51 µA |
| Alarm current | 68 µA |
| Smoke Sensitivity Range | UL/ULC: 0.53 to 3.94 %/ft. (1.7 to 12.35 %/m) obscuration |
| Vibration level | 10 to 35 Hz, with an amplitude of 0.01 in.10 to 35 Hz, with an amplitude of 0.01 in. |
| Air velocity | 0 to 4,000 ft./min (0 to 20 m/s) |
| Wall mounting | 12 in. (305 mm) max. ceiling |
| Compatible bases | See Ordering Information |
| Compatible detector testers | Testifire 1000, Testifire 2000 |
| Operating environment | 32 to 120°F (0 to 49°C), 0 to 93% RH, noncondensing |
| Construction | High Impact Engineering Polymer, White |
| Storage temperature | -4 to 140°F (-20 to 60°C) |
| Environmental compensation | Automatic |
| Agency Listings | CAN/ULC-S529, UL 268, UL 268A |
Accessories
| KI-SB | Detector Mounting Base - Standard | 0.2 (.09) |
| KI-SB4 | 4-inch Detector Mounting Base c/w Trim Skirt | |
| KI-RB | Detector Mounting Base w/Relay | |
| KI-RB4 | 4-inch Detector Mounting Base w/Relay, c/w Trim Skirt | |
| KI-IB | Detector Mounting Base w/Fault Isolator | |
| KI-IB4 | 4-inch Detector Mounting Base w/ Fault Isolator, c/w Trim Skirt | |
| GSA-LED | Remote Alarm LED (not for EN54 applications) | |
| KI-ABST | Audible (Sounder) Base for Fire Detectors | 0.3 (0.15) |
| KI-ABLT | Low Frequency Audible (Sounder) Base for CO and Fire Detectors | 0.3 (0.15) |
| KI-ABDT | Audible (Sounder) Base for CO and Fire Detectors | 0.3 (0.15) |
| GSA-TS4 | Trim Skirt (supplied with 4-inch bases) | 0.1 (0.04) |
| GSA-TS | Trim Skirt - (optional for non 4-inch bases) | 0.1 (0.04) |
| GSA-DMP | Detector Mounting Plate | 3.0 (1.4) |
