Intelligent Smoke Detector KIR-PD

Manufacture: kidde

Product code: KIR-PD

The KIR-PD optical smoke detector ⭐
✅ brings advanced sensing technology to a practical design that increases efficiency, saves installation time, cuts costs, and extends life safety and property protection capabilities. Continuous self-diagnostics ensure reliability over the long-haul, while environmental compensation helps reduce maintenance costs.

Product information

- Like all KIR Series detectors, the KIR-PD is an intelligent device that gathers analog information its optical sensor, converting this data digital signals. To make an alarm decision, the detector’s on-board microprocessor measures and analyzes sensor readings and compares this information to historical data. Digital filters remove signal patterns that are not typical of fires, thus virtually eliminating unwanted alarms.

Standard Features

Note: Some features described here may not be supported by all control systems. Check your control panel’s Installation and Operation Guide for details.

• Next Generation Optical Smoke Sensing Technology

• Wide 0.53 to 3.94 %/ft. (1.7 to 12.35 %/m) smoke obscuration

• Uses Existing Wiring

• Up To 250 Total Addresses Per Loop

• Two Levels of Environmental Compensation

• Two Levels of Dirty Detector Warning

• Five Sensitivity Settings

• Non-Volatile Memory

• Rotary Addressing

• Identification of Dirty or Defective Detectors

• Automatic Day/Night Sensitivity Adjustment

• Bicolor (Green/Red) Status Led

• Standard, Relay, Fault Isolator, and Audible Mounting Bases

• Sensor Markings Provide Easy Testing Identification

Application

The KIR-PD detects extremely small particles of combustion and triggers an alarm at the first sign of smoke. Thanks to its highperformance forward-scattering reflective response technology, the photoelectric smoke sensor responds quickly and reliably to a wide range of fire types, especially slow burning fires fuelled by combustibles typically found in modern multi-use buildings.

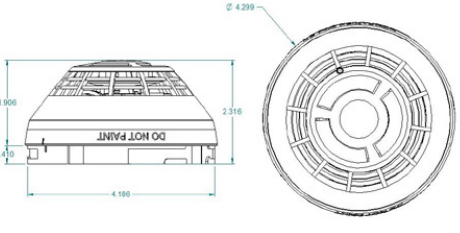

Dimensions

Intelligent Smoke Detector KIR-PD

Speccifications

Operating voltage	15.20 to 19.95 VDC
Normal operating current	51 µA
Alarm current	68 µA
Smoke Sensitivity Range	UL/ULC: 0.53 to 3.94 %/ft. (1.7 to 12.35 %/m) obscuration
Vibration level	10 to 35 Hz, with an amplitude of 0.01 in
Air velocity	0 to 4,000 ft./min (0 to 20 m/s)
Wall mounting	12 in. (305 mm) max. ceiling
Compatible bases	See Ordering Information
Compatible detector testers	Testifire 1000, Testifire 2000
Operating environment	32 to 120°F (0 to 49°C), 0 to 93% RH, noncondensing
Construction	High Impact Engineering Polymer, White
Storage temperature	4 to 140°F (-20 to 60°C)
Environmental compensation	Automatic
Agency Listings	Agency Listings

Ordering Information

Catalog Number	Description	Ship Wt. lbs (kg)
KIR-PD	Intelligent Optical Smoke Detector	0.4 (0.16
