Intelligent Fire Alarm Systems FX-64

Manufacture: kidde

Product code: FX-64

The FX-64 ✔️
✅ provides one Class B intelligent device loop that supports up to 64 device addresses, and two Class B Notification Appliance Circuits (NACs) ✔️
✅ Optional Class A device wiring is available with the use of a module.

Product information

- Kidde brand intelligent life safety systems offer the power of highend intelligent processing in configurations that deliver uncomplicated solutions for small to mid-sized applications. With intelligent detection, rotary addressing, automatic device mapping, optional Ethernet® connectivity, and a full line of easily-configured option cards and modules, these flexible systems offers offer versatility that benefits building owners and contractors alike

Features

• Auto-programming speeds installation time

• Form C contacts for alarm and trouble, Form A for supervisory

• Easy-to-configure rotary addressing

• Optional Ethernet port for diagnostics, programming and a variety of system reports

• Two programmable switches with LEDs and custom labeling

• Supports horn silence over two wires, and UL 1971-compliant strobe synchronization

• Class B or Class A wiring

• Ground fault detection by module

• Supports up to eight serial annunciators, (LCD, LED-only, and graphic interface)

• Can use existing wiring for most retrofit applications

• Upload/download remotely or locally

• Two-level maintenance alert reporting

• Pre-alarm and alarm verification by point

• Adjustable detector sensitivity

• 4 x 20 character backlit LCD display

• Optional earthquake hardening: seismic Importance Factor 1.5

• Standalone operation

• Transmission test frequency by hour

Application

Kidde FX Series life safety systems are powerful intelligent solutions for small to mid-sized buildings. Advanced analog technology delivers the benefits of flexible system installation, while clean and easy-to-operate user interfaces make panel operation and system maintenance quick and intuitive.

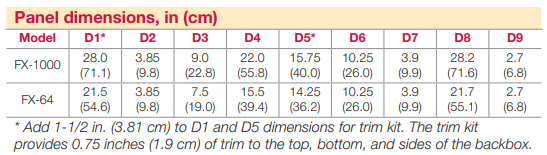

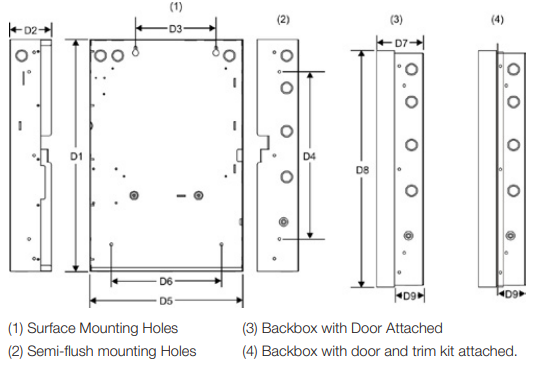

Dimensions

Intelligent Fire Alarm Systems FX-64

System Layout

Intelligent Fire Alarm Systems FX-64

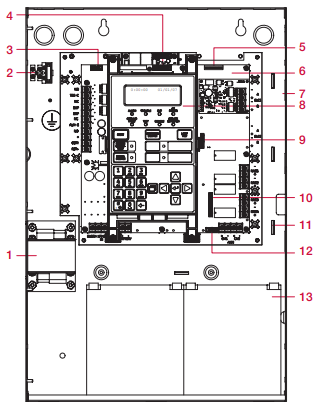

Panel Layout

Intelligent Fire Alarm Systems FX-64

1 Transformer

2 Main AC wiring block & fuse holder

3 RS-232 card connector (J3)

4 Dialer card connection (J8)

5 Ethernet card connector (J1)

6 Main circuit board

7 Panel backbox enclosure

8 Operator interface

9 SLC card connector (J7)

10 Class A card connector (J2)

11 Tie wrap mounts

12 LED expander connector (J6)

13 Standby batteries

Specifications

Model	FX-64	FX-1000
Device loops	1 loop Class B or Class A (Styles 4, 6, 7) supporting up to 64 device addresses (any combination of detectors and modules) Maximum T-taps: 63 (each device can be on its own branch)	1 loop, expandable to 4, Class A or B (Styles 4, 6, 7), each loop supporting up to 250 device addresses (125 detectors and 125 modules max.). Addresses 1 to 125 are for detectors and addresses 126 to 250 are for modules Maximum T-taps/loop: 124
Notification appliance circuits	2 Class B (Style Y), Class A (Style Z) optional 3.75 A FWR total at 120/230 VAC 60 Hz 3.0 A FWR total at 230 VAC 50 Hz 2.5 A FWR each max. per circuit	4 Class B (Style Y) or 2 Class A (Style Z) 6.0 A FWR total at 120/230 VAC 60 Hz 5.0 A FWR total at 230 VAC 50 Hz 2.5 A FWR each max. per circuit
Primary power	120 VAC, 60 Hz, 1.3 A max. 230 VAC, 50-60 Hz, 0.62 A max.	120 VAC, 60 Hz, 2.0 A max. 230 VAC, 50-60 Hz, 0.97 A max
Base panel current standby	155 mA	172 mA
Base panel current alarm	204 mA	267 mA
Input zones	16 max.	32 max.
Remote annunciator	8 drops max., RS-485 Class B, Class A is optional Data line length: 4,000 ft. (1,219 m)	8 drops max., RS-485 Class A or B Data line length: 4,000 ft. (1,219 m)
Operating voltage	24 VDC pane
Auxiliary power output circuit	Aux power 1: 500 mA, 24 VDC Aux power 2: 500 mA, 24 VDC (1 A possible if you reduce total available NAC power by 500 mA) Output: 28.3 to 21.9 VDC, special application Note: For a list of compatible devices, see the FX-64 and FX-1000 Series Compatibility List (P/N 3102355-EN)
Loop circuit	Maximum loop resistance: 66 Ω Maximum loop capacitance: 0.5 µF Communication line voltage: Maximum 20.6 V peak-to-peak Operating current (fully loaded loop) Stand by: 55 mA/45 mA Alarm: 125 mA/115 mA (not including two-wire smoke modules) Circuit current: 0.5 A max. Style 4, 6, and 7 wiring Max. resistance between isolators: Limited only by overall wire run lengths 64 isolators maximum per loop (total both isolator bases and modules)
Batteries	Type: Sealed lead acid Voltage: 24 VDC Charging current: 2.47 A max. Amp hour capacity: 26 Ah Standby operation: 24 hour or 60 hour Placement: Up to two 10 Ah batteries will fit in the FX-64 control panel cabinet and two 18 Ah batteries will fit in the FX1000 control panel cabinet. If larger batteries are required, use an Kidde battery cabinet.
SA-DACT dialer	Phone line type: One or two loop-start lines on a public, switched network Phone line connector: RJ-31/38X (C31/38X) Communication formats: Contact ID (SIA DC-05) Operating current Standby/Alarm: 41 mA Max.: 100 mA FCC registration number: GESAL01BSADACT Industry Canada Registration number: 3944A-SADACT Ringer equivalence number: 0.1B
Ground fault impedance	0 to 5 kΩ
Alarm contact	Form C N.O. 24 VDC at 1 A (resistive load)
Trouble contact	Form C 24 VDC at 1 A (resistive load)
Supervisory contact	Form A N.O. 24 VDC at 1 A (resistive load)
Environmental	Temperature: 0 to 49°C (32 to 120°F) Relative humidity: 0 to 93% noncondensing
Terminal rating	All terminals rated for 12 to 18 AWG (0.75 to 2.5 mm²)

Ordering Information

Part	Description
FX Fire Alarm Systems
FX-1000D	Four loop system with one 250-point loop installed, 1,000 point capacity max., includes a two-line dialer, four NACs. Red door, surface mount enclosure.
FX-1000	Four loop system with one 250-point loop installed, 1,000 point capacity max. Four NACs, red door, surface mount enclosure. Order dialer separately
SA-TRIM2	FX-1000 Flush mount trim, black
FX-64RD	One loop system with 64-points capacity, includes a two-line dialer, two NACs. Red door, surface mount enclosure
FX-64R	One loop system with 64-point capacity. Two NACs, red door, surface mount enclosure. Order dialer separately
SA-TRIM1	FX-64 Flush mount trim, black
