Hazardous Location Strobes 116DEGEX-FJ

Manufacture: kidde
Product code: 116DEGEX-FJ

116DEGEX-FJ ⭐
✅ hazardous location strobes are life safety signaling appliances designed for installation in hazardous environments. Rigid specifications and state-of-the-art technology provide for high visual output and low maintenance. The 116DEGEX-FJ has negligible in-rush current.

Zalo

Consulting hotline: 0944934114
Product information

- When pendant, wall or ceiling mounted, the 116DEGEX-FJ meets or exceeds the requirements of UL 1971 Signaling Appliance for the Hearing Impaired.

- The 116DEGEX-FJ is intended for indoor use in UL 1971 (signal appliance for the hearing impaired) listed compatible fire alarm systems. The strobe flashes a 360-degree beam of light approximately at 1 Hertz (65 times per minute) with a UL 1971 125 cd ceiling and 60 cd wall light output. With the guard installed, the strobe flashes a beam with an output of 86 cd ceiling and 51 cd wall. The strobe is also UL 1638 (visual signal appliance, private mode) listed with dome guard installed for both indoor and outdoor use, and other applications requiring electrical supervision of the signaling circuit field wiring. The 116 Class strobes are cUL listed to Canandian Standard ULC-S526-07 (Visual Signal Device for Fire Alarm Systems), suitable for indoor and outdoor applications. The strobe features an enhanced synchronization circuit to comply with the latest requirements of UL 1971 and CAN/ULCS526-07. Synchronized operation requires a separately installed synchronization control module. See Ordering Information for details.

- When assembled with one of the three available mounting options, the 116DEGEX-FJ is UL Listed for use in Class I, Division 1, Groups C and D, Class I, Division 2, Groups A, B, C and D, Class II, Division 1, Group E, F and G, Class II, Division 2, Group F and G, and Class III Division 1 and 2 hazardous locations. The strobe is also cUL Listed as a Type 3R and 4X enclosure.

Standard Features

• UL 1971 listed and ADA compliant for the hearing impaired

• Negligible in-rush current

• Approved for fire alarm applications

• Wall, ceiling or pendant mount

• Diode-polarized for use in electronically supervised circuits

• High-impact glass dome

• 1 Hertz flash rate (65 flashes per minute)

• Synchronized with external module

• 60 cd wall or 125 cd ceiling, per UL 1971

• Factory sealed - no external seals required

• Quick connect - threads onto mounting module for easy installation

• Epoxy powder coat for corrosion resistance

• cUL listed to CAN/ULC-S526-07 and UL 1638 for indoor and outdoor applications

Application

- 116DEGEX-FJ hazardous location strobes are designed for use in compatible Kidde fire alarm systems and other applications requiring electrical supervision of signaling circuit field wiring.

- These strobes are suitable for many locations including mines, graineries, flour mills, tankers, refineries, laboratories and other applications where environmental hazards may be present. 116DE

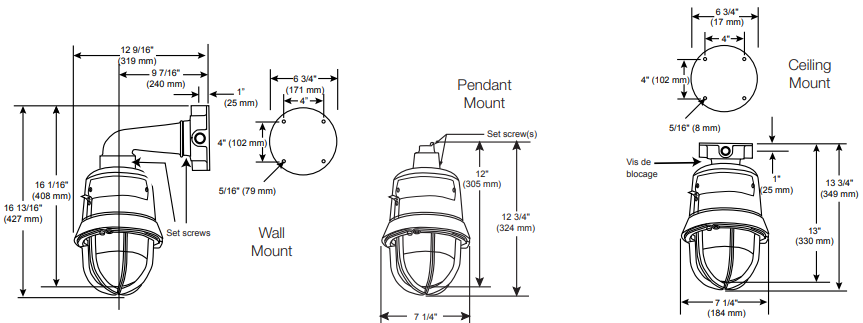

Mounting

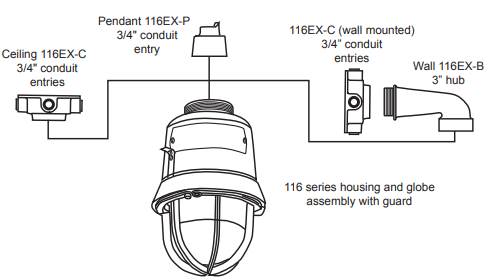

Thanks to its modular design, the 116DEGEX-FJ configures for pendant, ceiling, or wall mounting. See the ordering information table for available mounting modules.

Hazardous Location Strobes 116DEGEX-FJ

Hazardous Location Strobes 116DEGEX-FJ

Specifications

Mounting Pendant, ceiling, or wall
Rated strobe intensity

UL 1971 (indoor) and ULC-S526-07 (indoor & outdoor):

125 cd ceiling, 60 cd wall

Flash Rate 1 Hertz (65 fpm)
Agency Listings cUL

UL Listed Hazardous

Classifications

Class I, Division 1, Groups C & D, Division 2, Groups A, B, C & D;

Class II, Division 1, Groups, E, F & G, Division 2, Groups F & G;

Class III, Divisions 1 & 2

ADA Compliance UL 1971 listed signaling appliance for the hearing impaired, indoor, non-sleeping areas only
Synchronization Sources FACPs: VM and VS Series life safety systems, FX Series fire alarm control panels. Moduels: GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A, EG1M-RM. Power supplies: MIRBPS6A, MIRBPS10A, APS6A, APS10A.
NEMA Ratings Type 3R, Type 4X, cUL listed
Voltage Range 16 - 33 Vdc, 16-33VFWR
Operating Current (RMS) 0.505A @ 24 Vdc (regulated), 0.683A @ 24 VFWR
Operating Temperature cUL -40 to 150 ºF (-40 to 66 ºC)
Lens Color Clear
Strobe Type Xenon - clear/nominal white flash
Finish Gray powder coat epoxy
Weight 18 lbs (8.2 kg)

Operating Temperatures

Ambient

Temperature

Supply Wire

Temperature

Marking

Class I, Div.

2 Groups A, B

Class I, Div. 1 & 2

Groups C, D

Class II, Div. 1

Groups E, F, G, & Class III

Class II, Div. 2

Groups F, G, & Class III

40 ºC (104 ºF 75 ºC (167 ºF) T2B (260 ºC) T6 (85 ºC) T4A (120 ºC) T4A (120 ºC)
55 ºC (131 ºF 90 ºC (194 ºF) T2B (260 ºC) T6 (85 ºC) T4 (135 ºC) T4 (135 ºC)
65 ºC (149 ºF 105 ºC (221 ºF) T2B (260 ºC) T6 (85 ºC) T3C (160 ºC) T3C (135 ºC)

Ordering Information

Model Description Ship Wt.
116DEGEX-FJ Explosionproof Strobe, Diode Polarized 18 lbs 8.2 kg
116EX-B Wall bracket mounting elbow
116EX-C Ceiling/wall mounting module
116EX-P Pendant mounting module - 3/4” (19 mm) NPT
116-GRD Lens Guard
116-GLOBE Replacement Globe
