GSA-CT1 Single Input Module (One-gang standard mount)
The GSA-CT1 ⭐
✅ Single Input Module, is intelligent analog addressable devices used to connect one or two Class B normally-open Alarm ⭐
✅ Supervisory, or Monitor type dry contact Initiating Device Circuits (IDC). The actual function of these modules is determined by the “personality code” selected by the installer. This code is downloaded to the module the Signature loop controller during system configuration. The input modules gather analog information the initiating devices connected to them and convert it digital signals. The module’s on-board microprocessor analyzes the signal and decides whether or not to input an alarm.
Standard Features
• Multiple applications Including Alarm, Alarm with delayed latching (retard) for waterflow applications, Supervisory, and Monitor. The installer selects one of four “personality codes” to be downloaded to the module through the loop controller.
• GSA-CT1HT rated for high temperature environments Suitable for attic installation and monitoring high temperature heat detectors.
• Plug-in (UIO) or standard 1-gang mount UIO versions allow quick installation where multiple modules are required. The 1-gang mount version is ideal for remote locations that require a single module.
• Automatic device mapping Signature modules transmit information to the loop controller regarding their circuit locations with respect to other Signature devices on the wire loop.
• Electronic addressing Programmable addresses are downloaded the loop controller, a PC, or the Signature Program/Service Tool. There are no switches or dials to set.
• Ground fault detection by address Detects ground faults right down to the device level.
.png "GSA-CT1 Single Input Module (One-gang standard mount)")
Application
The duty performed by the GSA-CT1is determined by their sub-type code or “Personality Code”. The code is selected by the installer depending upon the desired application and is downloaded the loop controller. One personality code can be assigned to the GSA-CT1.
Installation
GSA-CT1 : modules mount to North American 2½ inch(64 mm) deep 1-gang boxes and 1½ inch (38 mm) deep 4 inch square boxes with 1-gang covers. The terminals are suited for #12 to #18 AWG (2.5 mm2 to 0.75 mm2 ) wire size.

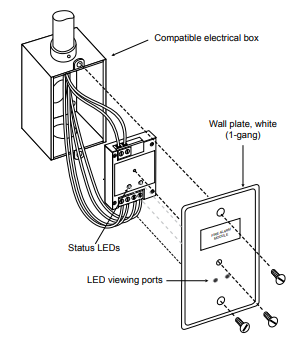

.png "GSA-CT1 Single Input Module (One-gang standard mount)")
Specifications
| Catalog Number | GSA-CT1HT | GSA-CT1 | GSA-CT2 | GSA-MCT2 |
| Description | Single Input Module | Dual Input Module | ||
| Type Code | 48 (factory set) Four sub-types (personality codes) are available | 49 (factory set) Four sub-types (personality codes) are available | ||
| Address Requirements | Uses One Module Address | Uses Two Module Address | ||
| Operating Current |
Standby = 250µA; Activated = 400µA |
Standby = 396µA; Activated = 680µA |
||
| Operating Voltage | 15.2 to 19.95 Vdc (19 Vdc nominal) | |||
| Construction | High Impact Engineering Polymer | |||
| Mounting | North American 2½ inch (64 mm) deep one-gang boxes and 1½ inch (38 mm) deep 4 inch square boxes with one-gang covers and GSA-MP mounting plates | UIO2R/6R/6 Motherboard | ||
| Operating Environment |
32°F to 158°F (0°C to 70°C) |
32°F to 120°F (0°C to 49°C) | ||
| Storage Environment | 4°F to 140°F (-20°C to 60°C); Humidity: 0 to 93% RH | |||
| LED Operation |
On-board Green LED - Flashes when polled; On-board Red LED - Flashes when in alarm/active. Both LEDs - Glow steady when in alarm |
|||
| Compatibility | Use with Signature Loop Controller | |||
| Agency Listings | UL, ULC, MEA, CSFM | |||
Ordering Information
| Catalog Number | Description | Ship Wt. lbs (kg) |
| GSA-CT1 | Single Input Module — UL/ULC Listed | 0.4 (0.15) |
| GSA-CT1HT | Single Input Module High Teperature Operation UL/ULC Listed | |
| GSA-CT2 | Dual Input Module — UL/ULC Listed | |
| GSA-MCT2 | Dual Input Plug-in (UIO) Module — UL, ULC Listed | 0.1 (0.05) |
Related Equipment
| 27193-11 | Surface Mount Box - Red, 1-gang | 1.0 (0.6) |
| 27193-16 | Surface Mount Box - White, 1-gang | 1.0 (0.6) |
| GSA-UIO2R |
Universal Input-Output Module Board w/Riser Inputs — Two Module Positions |
0.32 (0.15) |
| GSA-UIO6R |
Universal Input-Output Module Board w/Riser Inputs — Six Module Positions |
0.62 (0.28) |
| GSA-UIO6 | Universal Input-Output Module Board — Six Module Positions | 0.56 (0.25) |
| MFC-A |
Multifunction Fire Cabinet — Red, supports Signature Module Mounting Plates |
7.0 (3.1) |
| GSA-MB4 |
Transponder Mounting Bracket (allows for mounting two 1-gang modules in a 2-gang box) |
0.4 (0.15) |
| GSA-MP1 | Signature Module Mounting Plate, 1 footprint | 1.5 (0.70) |
| GSA-MP2 | Signature Module Mounting Plate, 1/2 footprint | 0.5 (0.23) |
| GSA-MP2L | Signature Module Mounting Plate, 1/2 extended footprint | 1.02 (0.46) |
You will receive a quote from us as soon as possible..
