Genesis LED EG1 Series Compact Notification Devices

Product code: EG1

Genesis LED EG1 Series horns and LED strobes feature a sleek low profile design and energy-efficient technology that makes them less expensive to install and operate by reducing overhead ✔️
✅ High performance LEDs require fewer circuits and power supplies ✔️
✅ These new appliances are designed with energy-efficiency and life safety in mind.

Zalo

Consulting hotline: 0944934114
Product information

- Genesis LED EG1 Series uses high efficiency optics, combined with patented electronics, to deliver a highly controlled and efficiently focused light distribution pattern in exchange for lower current requirements. Strobes feature field-selectable 15, 30, or 75 cd light output

- Compared with Xenon-type strobes, Genesis LED EG1 Series appliances need fewer power supplies and often smaller wire gauge, which lightens conduit requirements. They are also backwards compatible with legacy strobes, so there’s no need to replace all your existing devices to upgrade to new LED technology. In fact, EG1 strobes can be mixed on the same circuit and used in the same field of view as Xenon-based strobes. This makes Genesis LED EG1 Series ideal for new installations and retrofits alike.

- Field-configurable sound output levels provide the flexibility modern life safety projects demand, while the Genesis LED control protocol keeps multiple strobes on compatible NAC circuits synchronized to well within NFPA 72 requirements.

- Serviceability is another area where EG1 Series appliances shine. The innovative under-cover diagnostic test points provide easy access to device circuit testing while mounted.

Standard Features

• High Performance LED Strobe Technology

– Ultra low device current consumption

– High efficiency optics

– Selectable 15, 30, or 75 cd light output

– LED devices may be mixed with legacy Xenon strobes

• Efficient Audible Output

– Selectable high or low dB horn output

– Selectable temporal or steady horn output

– Improved audio frequency range for better wall penetration

• Low-profile Design

– Compact design—single gang mounting

– Ultra-slim—protrudes about 1" the mounting surface

– Attractive appearance—no visible mounting screws

• Multiple Cover Options

– Order with FIRE markings or no FIRE markings in both red and white

– Change markings at any time with quick-swap covers

• Easy to Install

– Diagnostic test points streamline device circuit testing

– Fits standard 1-gang electrical boxes, no trim ring needed

– Optional trim ring available for 4-inch square boxes

– Slide switches for field configuration

– 12 to 18 AWG in-out screw terminals for quick wiring

Installation

All Genesis LED devices come with mounting screws for easy installation. The tab at the bottom of the device unlocks the cover to reveal the mounting holes. The shallow depth of Genesis LED devices leaves ample room behind them for extra wiring. Once installed with the cover in place, no mounting screws are visible.

Genesis LED EG1 Series Compact Notification Devices

Genesis LED EG1 Series horns and strobes mount to any standard one-gang surface or flush electrical box. Matching optional EG1T trim rings are available to cover oversized openings and can accommodate one-gang or four-inch square boxes. Optional color matched single-gang surface boxes are also available

Genesis LED EG1 Series Compact Notification Devices

Dimensions

- EG1 Notification Appliances

Genesis LED EG1 Series Compact Notification Devices

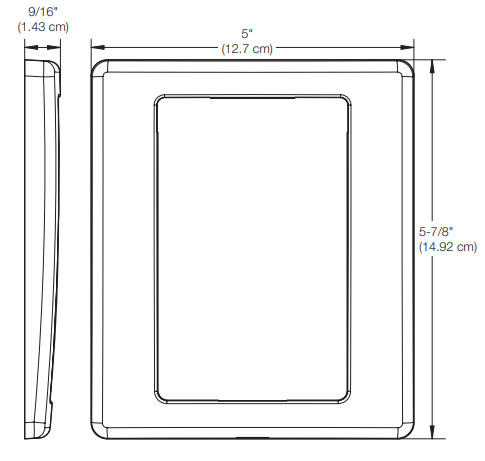

- EG1T Trim Ring

Genesis LED EG1 Series Compact Notification Devices

Specifications

Operating voltage 16 to 33 VDC, 16 to 33 VFWR
Horn signal type Constant or T3 temporal
Light output 15, 30, or 75 candela
Strobe flash rate 1 fps (flash per second) approx.
Synchronization 20 Ω max. between any two devices. (To determine allowed wire resistance, refer to these specifications, and the specifications for the synchronized signal source.)
Synchronization sources KIDDE CC Series Signal Modules, Booster and Auxiliary Power Supplies, and Intelligent and Conventional Control Panels
Wire size 12 to 18 AWG (0.75 to 2.50 mm2 )
Dimensions (W×H×D) 3 × 4-5/8 × 1-1/8 in. (7.62 × 11.75 x 2.86 cm)
Strobe-to-box center offset 0.71 inches (-1.8 cm)
Compatible electrical boxes [1] Compatible electrical boxes [1]
Trim rings EG1TR, EG1TW - Dimensions 5 x 5-7/8 x 9/16 in. (12.7 x 14.92 x 1.43 cm)
Agency Listings FCC, ICC, UL1971, UL1638, UL464, CSFM (All models comply with ADA code of federal regulation Chapter 28 Part 36 final rule)
Operating environment

Temperature

Relative humidity

32 to 122°F (0 to 50°C)

0 to 93% noncondensing

Ordering Information

Genesis LED EG1 Series Compact Notification Devices

Accessories

Genesis LED EG1 Series Compact Notification Devices
