Gate valve, Gate valve monitoring switch
Supervisory Switch, called a gate valve monitoring switch, is imported TPMCSTEEL - China, distributed by Southeast company, ensuring quality, good price, always suitable for all cost requirements. For all necessary information, you can contact 0917911114
The gate valve is a two-way isolating valve, and it opens by lifting a round or rectangular gate out of the path of the water flow. When fully open, the gate valve has no obstructions in the flow path, resulting in very low friction loss. The actuator of the gate valve connects a steam boost (outside screw and yoke, OS&Y) or a non-rising stem (NRS), thus to form different types.
TPMC offers gate valves in UL listed/FM approved:

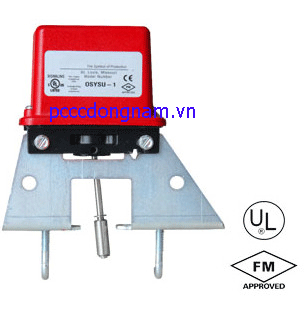

Detailed description of gate valve monitoring switch (Supervisory Switch)
Monitoring switch designed to fit on OS&Y gate valve (External screw and Yoke) to monitor the opening or closing status of tpmcsteel V13Feature valve The switch is conveniently mounted to most OS&Y valves. And the cover is held in place by 2 tamper-proof screws requiring a special tool to operate, which is also equipped with each unit upon delivery Certifications: UL Listed / FM Approved / CE Cover: Die-cast aluminum as ASTM B85 Connection plate: Mild steel / SS Travel rod: SS304 / SS316 Temperature: -40°C to 60°C Surface: Anti-corrosion coating Enclosure: IP 65 and IP 67

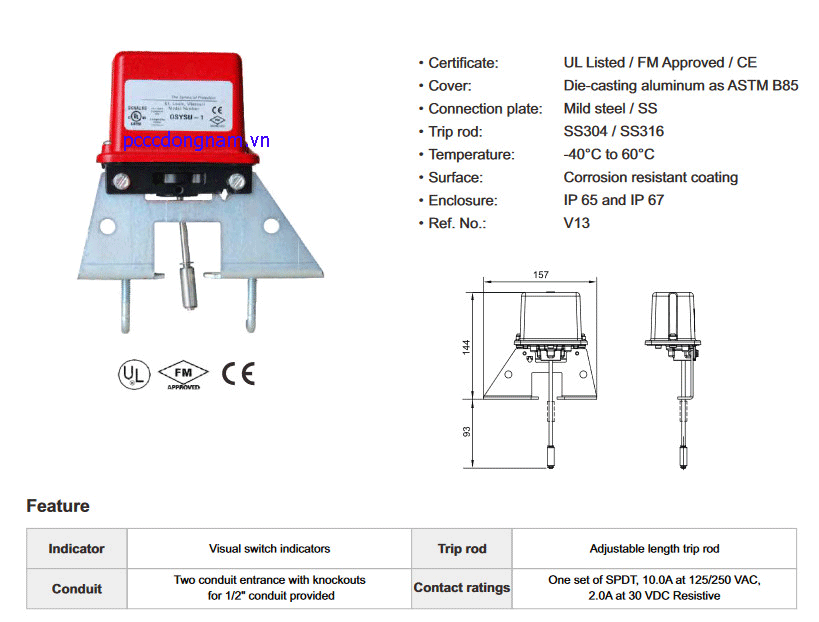

Detailed drawing of gate valve monitoring switch (Supervisory Switch)
>>>>>Khi Quý khách hàng cần tìm hiểu Van cổng, công tắc giám sát van cổng của chúng tôi quý khách hàng được đảm bảo:
-Nhập khẩu chính hãng TPMCSTEEL - Trung Quốc
-Hàng luôn sẵn kho, số lượng lớn
-Sản phẩm đầy đủ các chứng từ CO-CQ
-Được bảo hành chính hãng tất cả các sản phẩm 1 năm
-Giao hàng miễn phí 5km quanh khu vực Tp Hồ Chí Minh, hỗ trợ vận chuyển giao hàng toàn quốc
-Cam kết thời gian giao hàng đùng quy định hợp đồng
a
You will receive a quote from us as soon as possible..
