Manufacture: kidde

Product code: FW-CGSVM

The FireWorks Graphical Annunciation Interface is a software platform that provides end users with clear, concise ✔️
✅ and coordinated site incident information. FireWorks also supports optional text-based web clients to provide remote status updates. Five configurable graphical viewports offer simultaneous insight different aspects of an incident, while the underlying software dynamically manages content in each viewport based on real-time events and user interaction. Facility maps, embedded HTML viewer, and live event flow vital equipment all come together instantly within view of an operator facing events that require solid information and split-second timing.

Product information

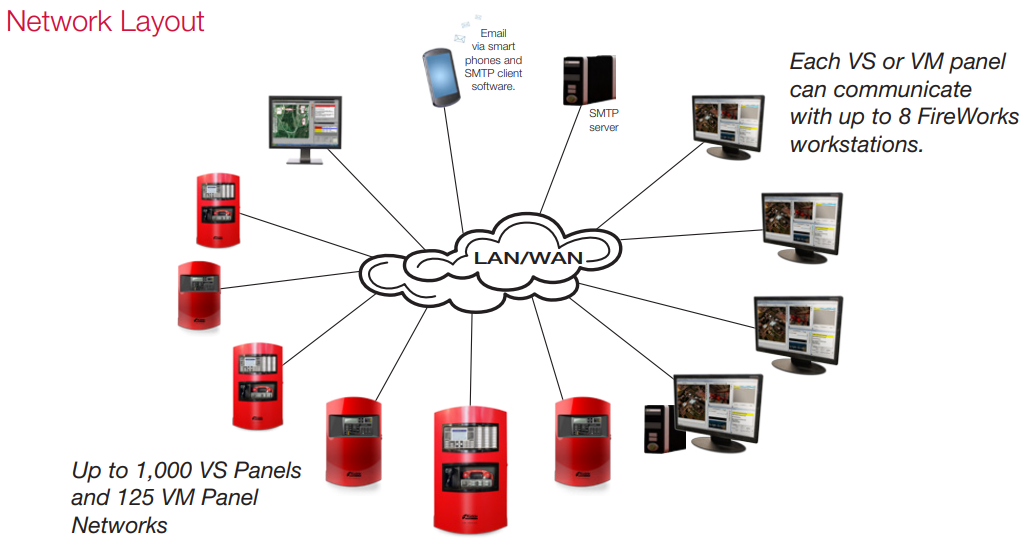

In addition to this structured display of information, FireWorks also color-codes each message according to its priority. This offers visual cues that alert the viewer instantly to any change of status or newly logged incident. FireWorks software can connect to up to 1,000 VS panels, up to 125 VM panel networks, monitoring events locally over a LAN, or remotely over the internet. It also supports SMTP email notification of status changes.

FW-CGSVM FireWorks Graphical Annunciation Interface

Standard Features

• Graphical annunciation software Provides map-based incident location

• Dynamic event-driven user interface Easy-to-follow notification

• Email event notification to multiple recipients Instant communication with off-site personnel

• Full History Reports Create, format, generate, and distribute custom incident and status reports

• Multi-lingual operation Set display for English, Spanish, Portuguese, French, Turkish, Chinese, Polish, Russian

• IP connection to up to 1,000 VS Control Panels Local communication over a LAN or wide area networking over the internet

• Scalable up to 125 VM Panel networks Monitor multiple VM panels one intuitive interface

• Password-defined user access and event filtering Control who sees what

• Use native graphic formats to create event maps Import most standard graphic formats – no conversion required

• Remote real-time WebClient Access system information anywhere in the world

• Powerful HTTP/HTTPS communication engine Compatible with DRMNS and many other third-party systems

Application

FireWorks is an ideal solution for monitoring remote VS or VM Series control panels and for monitoring panels in multiple locations a single point. FireWorks operation includes alarm, supervisory, monitor, and trouble incidents, such that should any of these occur on any point monitored by a connected panel, the FireWorks system will log incident details and post relevant information to the appropriate display areas system-wide. It can be configured to display the location of the incident on a map or aerial representation of the facility. Remote web client versions do not have this capability.

WebClients:

Global VPN Communications FireWorks systems support an optional real-time WebClient remote read-only text viewing feature that can be accessed anywhere in the world via a secured Virtual Private Network (VPN) connection, or local network connection. WebClient events mirror the FireWorks system Event List and Event Action viewports. These events are prioritized and color-coded for easy identification by type and source. Events may also be filtered at the Web Client, and sound files can be added per alarm, supervisory, trouble or monitor event category. Any number of remote web clients can be deployed by FireWorks. A maximum number of 15 web clients can connect concurrently to FireWorks and the number of these connections is determined by the package option. The WebClient can also run many reports for the remote workstation and print them to a local printer or output them to a .csv file.

System Requirements Locally sourced computer with:

• Intel® Xeon® Processor E5-1620 v3

• 8 GB RAM

• 500GB 3.5” Serial-ATA

• DVD-ROM Drive

• 4x USB 2.0 or greater Ports

• RJ45 intel Gigabit Ethernet

Ordering Information

FW-CGSVM	Standalone FireWorks Color Graphics Software PIN letter. Allows full 5 view port display. Includes FW-FIREKEYUSB and software DVD. No common control.
FW-IPMON1000	Pin Code for IP Monitoring for 1000 connections to VS Series panels. Requires companion software option FW-DARCOM.
FW-DARCOM	Pin Code for Communication to DACRs and/or IPMON1000.
Web client licenses
FW-1S	One Seat WebClient.
FW-4S	Four Seat WebClient (Requires FW-1S).
FW-10S	Ten Seat WebClient (Requires FW-1S & FW-4S).
