Fire Alarm Telephones

Manufacture: kidde
Product code: Telephones

Kidde fire alarm telephones are rugged communications devices for emergency use ✔️
✅ Enclosed keylocked telephone stations comprise three separately ordered components: the handset assembly, the frontplate, and the wallbox. Depending on how the phones are wired, they are supervised for three or four state operation. Frontplates are available with either metal or break glass insterts

Zalo

Consulting hotline: 0944934114
Product information

- MEA approved warden stations feature doors with magnetic latches and one-state handsets with armoured cords. Warden stations mount to 6832-1D wallboxes.

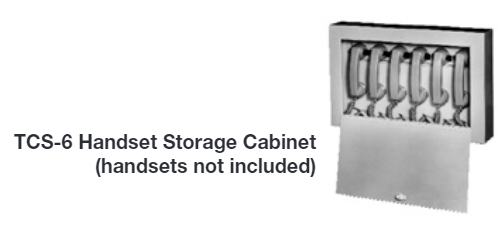

- Portable handsets plug one-gang receptacles. Handsets are available in black or red. The TCS-6 cabinet provides storage for up to six handsets.

Application

Firefighters’ telephones are typically installed in corridors, lobbies, mechanical rooms, stairways, or other stategic locations. When lifted its cradle, or plugged a suitable wall jack, the handset activates audible and visible signals at the control panel. There, the operator needs only to lift the handset off the cradle to respond to the current call. Other firefighters’ telephones may be selected at the control panel to join the conversation

Standard Features

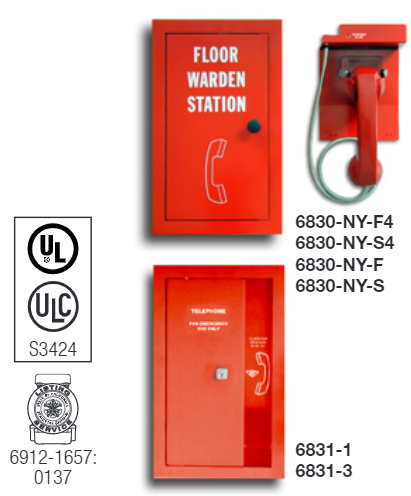

Floor Warden Station

• Magnetic latch

• Red powdercoat finish

• 28-inch armored cord

• Supervised wiring

• Flush or surface mount models

• Concealed Hinges

• Four-state model available

Fire Alarm Telephones

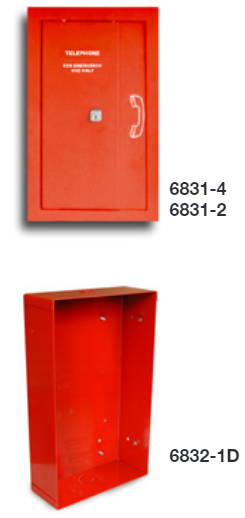

Frontplate – Break Glass

• Flush or surface mount models

• Red powdercoat finish

• Locking door, concealed hinges

• Break glass insert

Fire Alarm Telephones

Frontplate – Non-Break Glass

• Flush or surface mount models

• Red powdercoat finish

• Locking door, concealed hinges

• Metal insert

Fire Alarm Telephones

Wallbox, 6832-1D

For use with 6830 Warden Stations

• Red powdercoat finish

• Flush or surface mount

• For use with 6831 series front plates

• Flush or surface moun

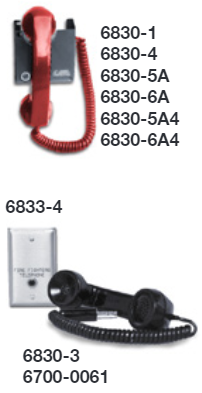

Handset Assembly

• Red ABS plastic handset

• 60 inch (1500 mm) coiled cord set

• Supervised wiring

• For use with 6831 series front plates

• Four-state models available

Fire Alarm Telephones

Portable Handsets and Receptacle

• Black or red ABS plastic handset

• 60 inch (1500 mm) coiled cord set

• Supervised wiring

• Stainless-steel one-gang faceplate

• Flush or surface mount receptacle

• Four-state models available

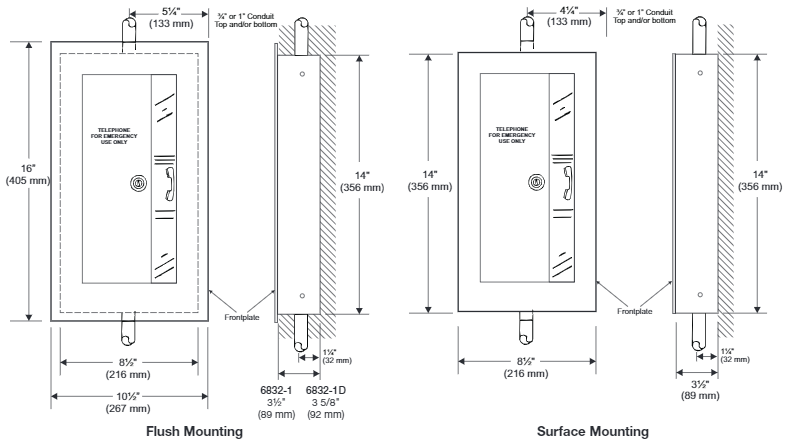

Mounting

Fire Alarm Telephones

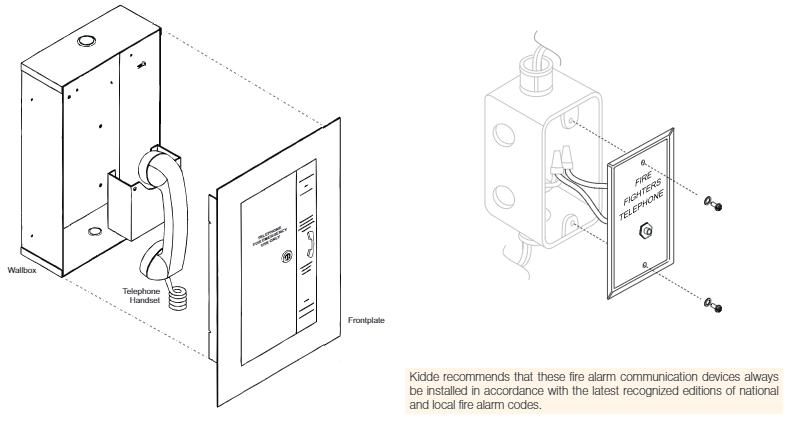

Assembly

Fire Alarm Telephones

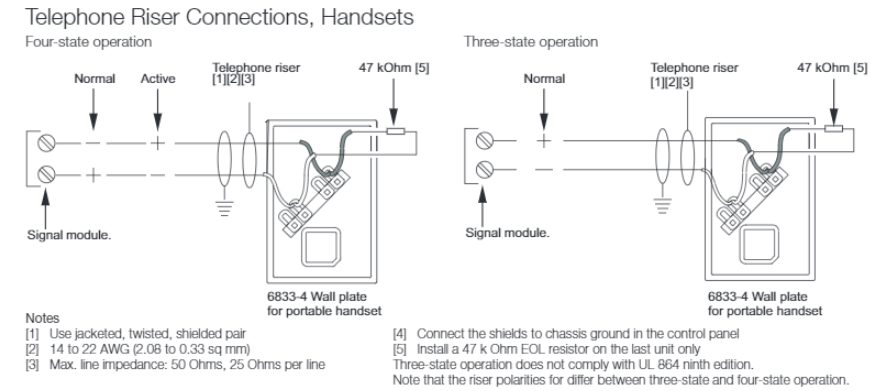

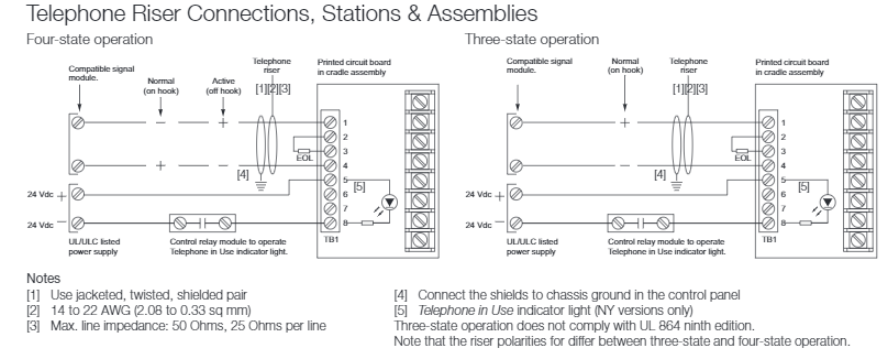

Typical Wiring

Fire Alarm Telephones

Fire Alarm Telephones

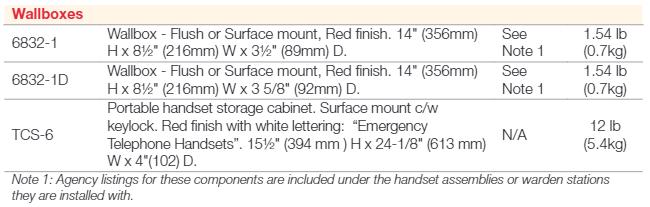

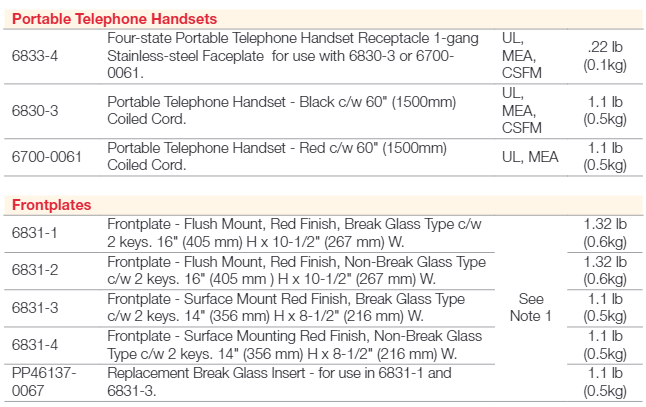

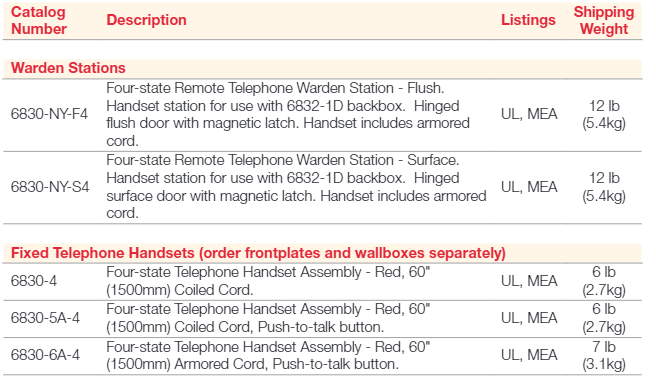

Ordering Information

Fire Alarm Telephones

Fire Alarm Telephones

Fire Alarm Telephones
