Field Configurable Horns and Strobes Genesis Series

Product code: Genesis Series

The Genesis line of fire alarm and mass notification/emergency communications (ECS/MNS)⭐
✅  signals are among the smallest, most compact audible-visible life safety signaling devices in the world. About the size of a deck of playing cards, these devices are designed to blend with any decor.

Zalo

Consulting hotline: 0944934114
Product information

- Thanks to patented breakthrough technology, Kidde Genesis strobes do not require bulky specular reflectors and lenses. Instead, an exclusive cavity design conditions light to produce a highly controlled distribution pattern. Significant development efforts employing this new technology have given rise to a new benchmark in strobe performance – FullLight technology.

- FullLight strobe technology produces a smooth light distribution pattern without the spikes and voids characteristic of specular reflectors. This ensures the entire coverage area receives consistent illumination the strobe flash. As a result, Genesis strobes with FullLight technology go well beyond the UL-1971 and ULC-S526 light distribution requirements

- Genesis strobes and horn-strobes offer selectable candela output by means of a conveniently-located switch on the side of the device. Models are also available that offer fixed 15/75 cd output. The candela output setting remains clearly visible even after final installation, yet it stays locked in place to prevent unauthorized tampering

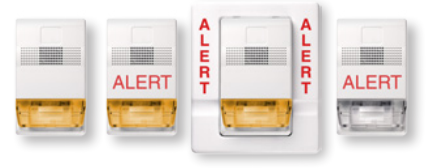

- Genesis ECS/MNS appliances offer emergency signaling with clear or amber lenses and with optional ALERT housing labels. They are ideal for applications that require differentiation between fire alarm and mass notification alerts.

Field Configurable Horns and Strobes Genesis Series

Field Configurable Horns and Strobes Genesis Series

Standard Features

• Unique low-profile design

– The most compact UL-1971/ULC-S526 listed strobe available

– Ultra-slim – protrudes less than one inch

– Attractive appearance

– No visible mounting screws

• Four field-configurable options in one device

– 15, 30, 75, or 110 cd strobe output

– high (default) or low dB horn output

– temporal (default) or steady horn output

– public mode flash rate (default) or private mode temporal flash

• Fixed 15/75 cd model available

• ECS/MNS models available

• Easy to install

– Fits standard 1-gang electrical boxes

– no trim plate needed

– Optional trim plate accommodates oversized openings

– Pre-assembled with captive hardware

– #12 AWG terminals

– ideal for long runs or existing wiring

• Unparalleled performance

– Industry’s most even light distribution

– Meets tough synchronizing standards for strobes

– Single microprocessor controls both horn and strobe

– Independent horn control over a single pair of wires

– Highly regulated in-rush current

– Multiple frequency tone improves sound penetration

– Field-programmable temporal strobe output option

ECS/MNS Applications

Genesis ECS/MNS strobe appliances bring the same highperformance fire alarm features and unobtrusive design to mass notification applications. Available with amber lenses and optional ALERT housing labels, they are ideal for applications that require differentiation between fire alarm and mass notification alerts.

Installation

- Genesis horns and strobes mount to any standard one-gang surface or flush electrical box. Matching optional trim plates are used to cover oversized openings and can accommodate one-gang, two-gang, four-inch square, or octagonal boxes, and European 100 mm square.

- All Genesis signals come pre-assembled with captive mounting screws for easy installation. Two tabs at the top of the signal unlock the cover to reveal the mounting hardware. The shallow depth of Genesis devices leaves ample room behind the signal for extra wiring. Once installed with the cover in place, no mounting screws are visible.

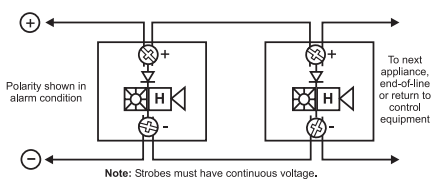

Wiring

Field Configurable Horns and Strobes Genesis Series

Specifications

Housing Red or white textured UV stabilized, color impregnated engineered plastic. Exceeds 94V-0 UL flammability rating.
Lens Optical grade polycarbonate (clear)
Mounting (indoor only) Strobes and horn-strobes are for wall-mount installation only. Horn-only models may be ceiling- or wall-mounted. Flush mount: 2½ inch (64 mm) deep one-gang box Surface mount: Model 27193 surface mount box, wiremold box, or equivalent surface-mount box With optional trim plate: One-gang, two-gang, four-inch square, octagonal, or European single-gang box
Wire connections Screw terminals: single input for both horn and strobe. #18 to #12 AWG (0.75 mm² to 2.5 mm²) wire size
Operating environment Indoor only: 32-120°F (0-49°C) ambient temperature. 93% relative humidity
Agency listings/approvals UL 1971 (S218), UL 1638 (S218), UL 464 (S218), ULC S525, ULC S526, CSFM, CE, FCC, MEA. (All models comply with ADA Code of Federal Regulation Chapter 28 Part 36 Final Rule.)
Dimensions (HxWxD)

Signal: 4-1/2” x 2-3/4” x 13/16” (113 mm x 68 mm x 21 mm)

Trimplate: 5” (127 mm); Height – 5-7/8” (149 mm); Depth – ½” (13 mm)

Operating voltage

EG1-HD series temporal-tone horns: non-coded, filtered 16-33 Vdc or unfiltered 16-33 Vdc FWR (or coded when horn set to steady tone)

EG1-HDVM series temporal-tone horn-strobes: non-coded, filtered 16-33 Vdc or unfiltered 16-33 Vdc FWR (or coded (audible NAC only) when used with optional

EG1M Genesis Signal Master)

EG1-VM series strobes: non-coded, filtered 16 - 33 Vdc or unfiltered 16-33 Vdc FWR

EG1-P series steady-tone horns: coded or non-coded, filtered 20-31 Vdc or unfiltered 20-27 Vfwr

Strobe output rating

UL 1971, UL 1638, ULC S526: selectable 15 cd, 30 cd, 75 cd, or 110 cd output

UL 1971: 15 cd (fixed 15/75 cd models)

UL 1638, ULCS526: 75 cd (fixed 15/75 cd models)

Strobe flash rate

EG1-VM strobes and EG1-HDVM series temporal-tone horn-strobes: one flash per second synchronized with optional

EG1M Genesis Signal Master indefinitely within 10 milliseconds. Temporal setting (private mode only): synchronized to temporal output of horns on same circuit

Synchronization Sources FACPs: VM and VS Series life safety systems, FX Series fire alarm control panels. Moduels: GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A, EG1M-RM. Power supplies: MIRBPS6A, MIRBPS10A, APS6A, APS10A.
Horn pulse rate EG1-HD temporal-tone horns and EG1-HDVM series temporal-tone horn-strobes: temporal rate synchronized with optional EG1M Genesis Signal Master indefinitely within 10 milliseconds. EG1-P steady-tone horns: continuous, steady tone only
Temporal audible pattern ½ sec ON, ½ sec OFF, ½ sec ON, ½ sec OFF, ½ sec ON, 1½ sec OFF, then repeat cycle

Ordering Information
