Explosionproof Smoke Detector Model 30-3013A1N12F

Explosionproof Smoke Detector Model 30-3013A1N12F

Manufacture: kidde

Product code: 30-3013A1N12F

Model 30-3013
✅ detectors are high performance smoke detectors built for use in hazardous locations. They are corrosion-resistant and feature a non-conducting aluminum alloy retaining ring that protects the detector sensor against the effects of explosions and other catastrophic events.

Product information

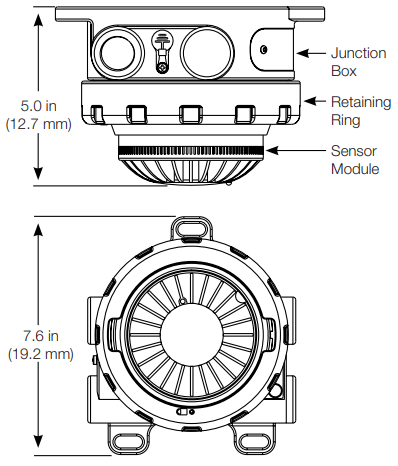

- The retaining ring mounts securely to a companion junction box, which offers several common port configurations for conduit connection. Together, the ring and box provide a sturdy protective shell for the detector head.

- The 30-3013’s advanced optical detector performs effectively with slow-burning smoldering fires, as well as quickly rising flames. The sensor module is hot-swappable and intrinsically safe while powered. This allows maintenance work to be performed without having to declassify the protected area as a hazardous location.

- An integrated Trouble relay ensures that the 30-3013 detector always performs as expected. On-board Alarm and Auxiliary relays integrate easily with Kidde fire systems, as well as auxiliary equipment such as dampers and door closers.

Standard Features

• High performance optical smoke detection

• Built-in 0-20 mA output for easy Distributed Control System (DCS) integration

• Self diagnostics for reliable operation

• Alarm, Auxiliary, and Trouble relays for annunciator and control panel connection

• On-board LED provides local annunciation

• Non-latching operation

• Convenient magnetic switch for manual testing

• FM Approved for smoke detection in Class I, Division 1 hazardous locations

• IECEx Zone approved

• IP44 ingress protection level suitable for onshore or offshore requirements

Application

- The 30-3013 Explosionproof Smoke Detector features a rugged design built to withstand environmental extremes. Its integrated milliamp outputs make it ideal for a wide range of industrial applications, while its agency approval ratings make it suitable for both on-shore and off-shore facilities.

- Typical applications for the 30-3013 Explosionproof Smoke Detector include:

• Combustible storage facilities

• Munitions manufacturing

• Volatile chemical storage

• Chemical processing plants

• Petroleum refineries

• Turbine enclosures

• Battery rooms

• HVAC applications

Installation

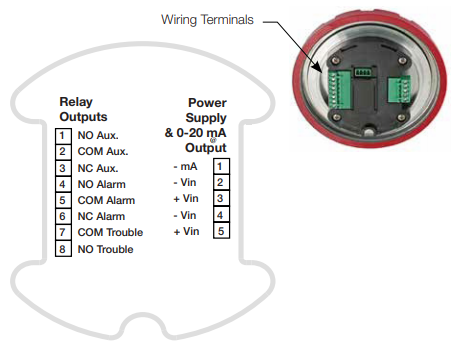

All external wiring to the device is connected inside the integrated junction box. The 30-3013 has ports for up to four conduit entries. Each port accepts conduit with 3/4 inch NPT.

Explosionproof Smoke Detector Model 30-3013A1N12F

Specifications

Operating Voltage	12-30 Vdc (24 Vdc nominal)
Power Consumption	3.5 watts maximum (2.75 watts at 24 Vdc)
Smoke alarm relay	Form C, 5 amperes at 30 Vdc: normally open/normally closed contacts and normally deenergized operation
Trouble relay	Form A, 5 amperes at 30 Vdc: normally open contacts and normally energized operation.
Auxiliary relay	Form C, 5 amperes at 30 Vdc: normally open/ normally closed contacts and normally deenergized operation.
Temperature Range	Operating: –20°C to +65°C (–4°F to +149°F) Storage: –55°C to +70°C (–67°F to +158°F)
Humidity Range	5 to 95% relative humidity
Ingress Protection	IP44 (ceiling mount application only)
Current Output	0-20 mA (±0.3 mA) dc current, with maximum loop resistance of 300 ohms 12-17.9 Vdc, 500 ohms 18 to 19.9 Vdc, and 600 ohms.
Terminals	Rated for 14-18 AWG or 2.5-0.75 mm2 wire.
Thread Options	3/4 inch NPT or M25
Enclosure Materia	Detector: Polycarbonate/ABS Junction Box: Copper-free aluminum (painted)
FM Approvals	Class I Div 1 Groups B, C, D T4 Class I Div 2 Groups A, B, C, D T4 Class I Zone 1 AEX db ia IIC T4 Gb Tamb –20°C to +65°C IP44
IECEx Approvals	IECEx FEG15.0014X Ex db ia IIC T4 Gb Tamb –20°C to +65°C IP44

Ordering Information

Model	Description	Shipping Weight
30-3013A1N12F	Explosionproof Smoke Detector	7.85 lbs (3.56 kg)
