Electromagnetic Door Holders

Manufacture: kidde
Product code: Door Holders

Electromagnetic door holders keep doors open until signaled by the fre alarm system ⭐
✅ a heat detector, a smoke detector, or an electrical switch. Door holders should be installed wherever doors may be effectively used to confne smoke and fre, or where the release of a self-closing door a remote location is required. Fail-safe operation is an inherent feature of these door holders. If power fails, doors are released automatically, but may be opened or closed manually at any time. All units are free of moving parts, are self-contained, and require no maintenance. Door holders have a holding force of approximately 15-25 Lbf (66-111N).

Zalo

Consulting hotline: 0944934114
Product information

- Edwards Electromagnetic Door Holders are ruggedly constructed and attractively designed. The housing is finished with an aluminum color, durable baked polyester powder paint. The floor or wall section houses the electromagnet while the contact plate attaches to the door. The contact plate has a shock absorbing nylon (swivel) ball which allows the plate to adjust to any door angle. Floor units are available in single-door or double-door (back to back) versions. Wall units are available in flush or surface mounted versions.

- Edwards door releases should be installed wherever doors may be effectively used to confine smoke and fire, or where the release of a self-closing door a remote location is desirable for other reasons.

- Fail-safe operation is an inherent feature of Edwards door holderreleases. If power fails, doors are released automatically but may be opened or closed manually at any time. All units are free of moving parts, are self-contained and require no maintenance.

- These door holder-releases have a holding force of approximately 25 Lbf (111N). The device holds a door open while energized. When de-energized by a relay controlled by the fire alarm system or other switch, the door is released to a closed position, checking the spread of smoke and flames. Electromagnetic door holders should be used and installed in accordance with local Building Codes and Standards.

Standard Features

• Floor and wall mounted styles

• Low power consumption

• AC/DC models

• Completely silent operation

• 25 Lbf (111N) nominal holding force

• Adjustable, swivel contact plate

Basic Models

Floor Mounted:

- The electromagnet portion consists of a floor plate and a floor housing which when installed with gaskets provided, form a weatherproof electrical junction box. Incoming conduit connects directly floor plate.

- Floor mounted units are available with one (Cat. No. 1501) or two (Cat. No. 1502) magnet faces for holding a single door or two doors back to back.

Wall Mounted:

- Wall mounted models are available in flush, semi-flush and surface mounting configurations. Flush and semi-flush models are designed for concealed wiring applications and mount on standard single gang (2 x 4 inch) outlet boxes. Surface mounted models mount on a surface adaptor housing (junction box), which is provided.

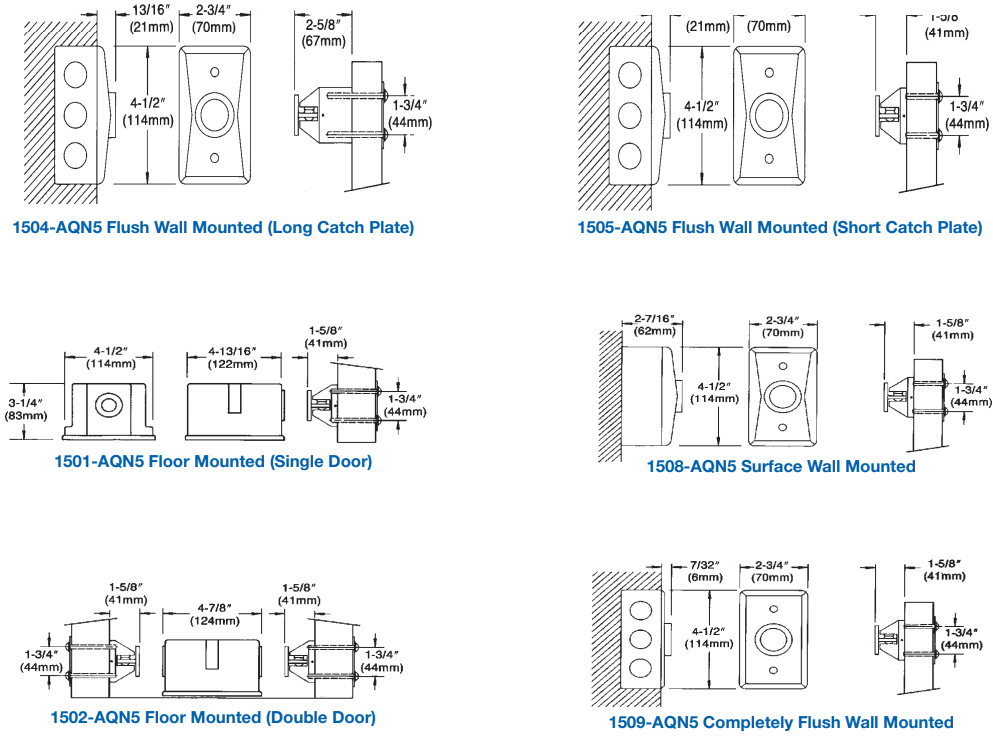

Dimensions

Electromagnetic Door Holders

Specifications

Model No. Style Volts Amps
1501-AQN5 Floor Mounted (Single Door

24 Vac 60 Hz

24 Vdc 120 Vac 60 Hz

.015
1502-AQN5 Floor Mounted (Double Door
1504-AQN5 Flush Wall Mounted (Long Catch Plate)
1505-AQN5 Flush Wall Mounted (Short Catch Plate)
1508-AQN5 Surface Wall Mounted
1509-AQN5 Completely Flush Wall Mounted
1502-AQN5 is a double unit which draws .015 per side

Ordering Information

Model No. Description Ship. Wt. lb (kg)
1501-AQN5 Floor Mounted (Single Door) 5.4 (2.45)
1502-AQN5 Floor Mounted (Double Door) 5.0 (2.27)
1504-AQN5 Flush Wall Mounted (Long Catch Plate) 2.0 (0.91)
1505-AQN5 Flush Wall Mounted (Short Catch Plate) 2.0 (0.91)
1508-AQN5 Surface Wall Mounted 3.0 (1.36)
1509-AQN5 Completely Flush Wall Mounted 2.0 (0.91)

Accessories

1500-1 Catch plate extension assembly, 1.5” 0.25 (0.11)
1500-2 Catch plate extension assembly, 2.5” 0.25 (0.11)
1500-7 Catch plate extension assembly (5.25 to 7.5 inches) 0.5 (0.23)
1500-12 Catch plate extension assembly (7.5 to 12 inches) 1.0 (0.45)
CS2595-5 Replacement armature - short (for use with 1501, 1502, 1505, 1508 and 1509 door holders) 0.25 (0.11)
0.25 (0.11) Replacement armature - long (for use with 1504 door holder) 0.25 (0.11)
