Conventional Fire Alarm Systems FX-10RD FX-10R

Conventional Fire Alarm Systems FX-10RD FX-10R

Manufacture: kidde

Product code: X-10RD,, FX-10R

Kidde brand conventional fire alarm systems consist of 5 and 10 zone fire alarm control panels (FACP) ⭐
✅ an optional integrated upload/download DACT (dialer), intelligent/analog type detector features, serial annunciator modules, and serial remote relay modules. All FACPs and components are Listed to the 9th edition of the ANSI/UL 864 standard and CSFM/FDNY approved.

Product information

- These systems incorporate features designed to simplify installation, operation and maintenance, including front panel programming, one person walk testing, and selectable IDC and NAC types. In addition, when used with CleanMe® -compatible smoke detectors, these control panels provide intelligent type features such as remote maintenance alert and automatic drift compensation that significantly reduce the chance of a false alarm and simplify maintenance calls.

- Kidde systems are powerful enough to meet the demands of today’s life safety installations while leaving plenty of room to grow in the future. They support Class A operation by combining pairs of on-board IDCs or NACs to provide the necessary Class A circuits. For example, the FX-10RD comes factory set to support 10 Class B IDCs and 4 NACs. But it can be field-configured to provide 5 Class A IDCs (no Class B IDC’s), and 2 Class A NACs – or any other combination of circuits that fall within the circuit-pairing parameters.

Standard Features

• Available in 5, and 10 zone (IDC) models

• CleanMe® feature provides remote annunciation of a dirty detector

• Automatic drift compensation with detectors reduces false alarms and extends dust life

• Listed to ANSI/UL 864 9th Edition

• Models with fully integrated upload/download DACT enables PC programming

• Zone or NAC pairs convertible to single Class A circuits

• Combination Waterflow and Supervisory IDCs

• NACs programmable by zone and individually selectable for notification appliances, continuous, temporal outputs, or coded

• Front panel programmable simplifies installation and servicing

• Precision synchronization with compatible notification appliances and optional audible silence over two wires

• On-board relays for Alarm, Supervisory and Trouble

• Optional serial bus relay modules are programmable for Common, Zone, or Matrix activation

• Optional serial bus remote annunciator family

• One person walk-test (audible or silent)

• Optional City Tie and Reverse Polarity Modules

• Trim ring available for semi-flush mounting

Application

- Kidde conventional fire alarm systems provide smoke and fire detection, occupant notification and off-premises signaling for smallto medium-sized buildings.

- Each IDC can be configured for either Class B or Class A operation and one of eight operating modes:

• Alarm –with or without smoke detector verification including discrimination of contact devices

• Waterflow Alarm;

• Waterflow Alarm/Supervisory (Combination IDC);

• Supervisory (Latching/non-latching);

• Monitor (non alarm or supervisory)

• Signal Silence • Drill

• Cross zoning

- NACs may also be configured for either Class B or Class A operation. Additionally, NACs can be individually configured for one of six outputs. These are Genesis, Genesis (A/V silenceable), Continuous, Temporal, Coded, and City Tie. The Genesis selection allows independent horn control over two wires and provides precision synchronization of notification appliances, all without the need for a signal master accessory.

- When configured for compatible notification appliances, the Alarm Silence function will silence connected audible appliances but strobes will remain active until the panel is reset. When Genesis Mode is selected, both the horns and strobes on compatible notification appliances will be synchronized across all NACs.

Panel LED Display

The following system LEDs display the panel’s status:

• Alarm – panel is in the alarm state;

• Trouble – panel is in the trouble state;

• Supervisory – panel is in the supervisory state;

• Power – indicates the status of the AC power source;

• Disable – indicates when any IDC, NAC, relay or the DACT is disabled;

• Annunciator Trouble – indicates trouble on the remote annunciator bus;

• Battery Trouble – indicates battery or charging problems;

• Ground Fault – indicates a short between any panel circuit and ground;

• Walk Test – indicates that one or more IDCs are in the walk test mode;

• Alarms Silenced – indicates that the panel is in the alarm state with one or more NACs silenced.

• Waterflow – indicates that one or more circuits have detected an active waterflow switch.

• Service Detector – indicates the presence of a dirty detector with CleanMe® compatible ESL smoke detectors.

• Remote Disconnect – indicates off site communication has been disabled.

Each IDC has a disable switch and three LEDs:

• Alarm – red – indicates that the IDC is in the alarm state;

• Trouble – yellow – indicates that the IDC is in the trouble state or is disabled (when flashing);

• Supervisory/Monitor – yellow – indicates that the IDC is in the supervisory state or the monitor state (when flashing).

Each NAC also has a disable switch and a trouble/disable LED.

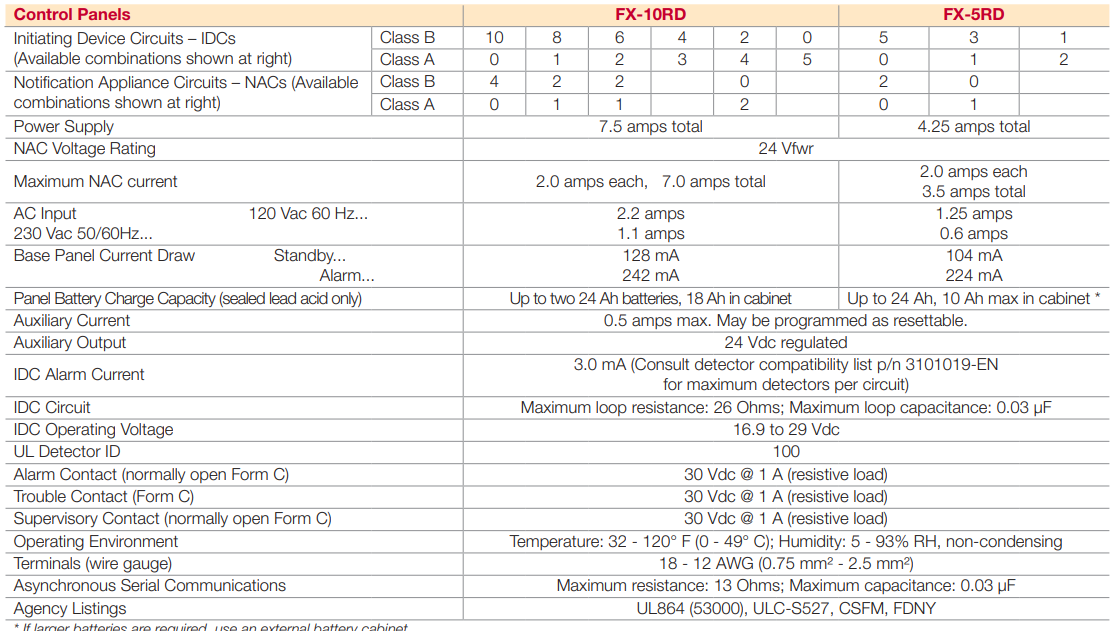

Control Panel Specifications

Conventional Fire Alarm Systems FX-10RD,, FX-10R

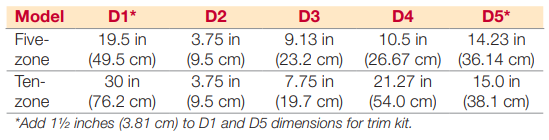

Dimensions

Conventional Fire Alarm Systems FX-10RD,, FX-10R

Ordering Information

Part Number	Description	Ship Wt. lb. (kg.)
Control Panels
FX-10RD	Conventional Fire Alarm Control Panel, Red – 10 Class B IDCs and 4 Class B NACs, 7.0A NAC power, (Pairs of IDCs and NACs convertible to single Class A circuits), upload/download DACT/modem, 120VAC power source, 24VDC output	30.5 (13.8)
FX-5RD	Conventional Fire Alarm Control Panel, Red – 5 Class B IDCs and 2 Class B NACs, 3.5A NAC power, (Pairs of IDCs and NACs convertible to single Class A circuits), upload/download DACT/modem, 120VAC power source, 24VDC output	24.4 (11.1)
F-TRIM35R	Semi-flush trim ring for FX-5RD	1.7 (0.8)
F-TRIM10R	Semi-flush trim ring for FX-10RD	2.2 (1.0)
