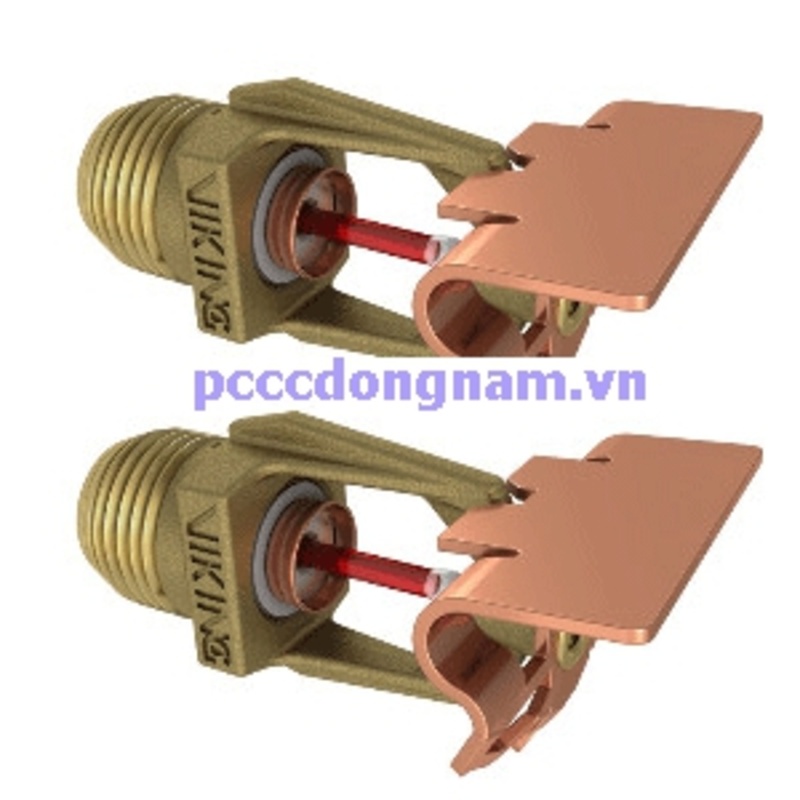

VK612 horizontal nozzle, Microfast HP EC QREC (K5.6)
Product Code VK612, Factor K5.6, Quick Response, Horizontal Direction, Viking Firm, Warranty 12 months nationwide, Contact 0917911114 we advise you
Technical specifications VK612 horizontal sprinkler Microfast® HP EC QREC (K5.6)
(2).gif "VK612 horizontal nozzle, Microfast HP EC QREC (K5.6)")
- Minimum operating pressure: Refer to Approval Chart.
- Maximum working pressure: 250 psi (17 bar) Hydrostatic test to 500 psi (34.5 bar). Reading Size: 1/2 1/2 (15 mm)
- N-Factor K-Factor: 5.6 US (80.6 meters) The K-factor measurement is displayed in the Bar. When the pressure is measured in kPa, divide the K-factor by the factor displayed by 10.0.
- The bulb's liquid temperature is rated as -65°F (-55°C)
- Overall length: 2-11/16 / (68 mm)
Microfast® HP EC QREC (K5.6) Horizontal Nozzles Microfast® HP EC QREC (K5.6) is an extended standard quick-response, horizontal sidewall HP Sprinkler VK612 nozzle model, available thermal sprinklers designed to meet different requirements. Allows efficient use of available water supplies for hydraulically designed fire protection systems. Glass bulb operating elements and exceptional deflection properties meet the challenges of rapid response extended coverage standards. Special Polyester and PTFE coatings can be used in decorative applications where color is desired
Pictures of instructions for installing and assembling VK612 horizontal sprinkler Microfast® HP EC QREC (K5.6)
-1.gif "VK612 horizontal nozzle, Microfast HP EC QREC (K5.6)")
-2.gif "VK612 horizontal nozzle, Microfast HP EC QREC (K5.6)")
-3.gif "VK612 horizontal nozzle, Microfast HP EC QREC (K5.6)")
-4.gif "VK612 horizontal nozzle, Microfast HP EC QREC (K5.6)")
You will receive a quote from us as soon as possible..
