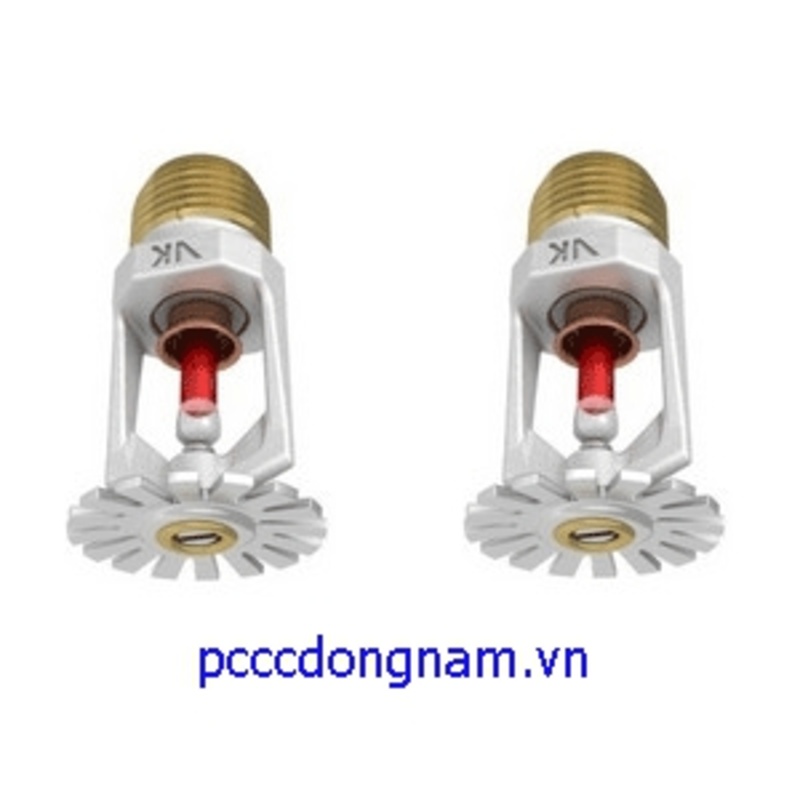

VK003, Viking Micromatic Sprinkler K2.8
VK003 - Micromatic Standard Response Pendent Sprinkler (K2.8) in English named VK003 - Micromatic
® Standard Response Pendent Sprinkler (K2.8) - independent spray head manufactured by Viking, Southeastern company specializing in importing and Distributor of genuine, certified, best price nozzles in Hanoi and Ho Chi Minh City. Ho Chi Minh. Contact us immediately at 0917911114 if you intend to order and be consulted
VK003 - The Viking Micromatic(K2.8) Sprinkler Head is a small, heat-resistant glass sprinkler that is available in a number of different finishes and temperature ratings to meet design requirements. Special Polyester coatings can be used in decorative applications where color is desired. Additionally, these coatings have been studied for installation in corrosive environments and are listed/approved as corrosion resistant as outlined in the Approval Chart.
Note: FM Global does not have an approved classification for Polyester coatings as corrosion resistant.
VK003 - Micromatic Sprinkler Heads (K2.8) can be ordered and/or used as đầu phun hở (remove glass bulb and pip cap) on deluge systems.
(2).gif "VK003 - Đầu phun Sprinkler Viking Micromatic(K2.8)")
Technical specifications description VK003 - Sprinkler
Micromatic (K2.8)
Flow K: 2.8
Brand: Viking
VK code: VK0003
Maximum pressure: 175 psi (12 bar)
Response Type: Standard
Thread Size: 1/"NPT (20mm BSP)
Minimum distance: According to standard / list
Maximum distance: According to standard / list
More information:
The product details indicated below are for general reference only and are subject to change based on product specific approval and/or application. Always verify product details with technical data sheets and consult the Competent Authority (AHJ).

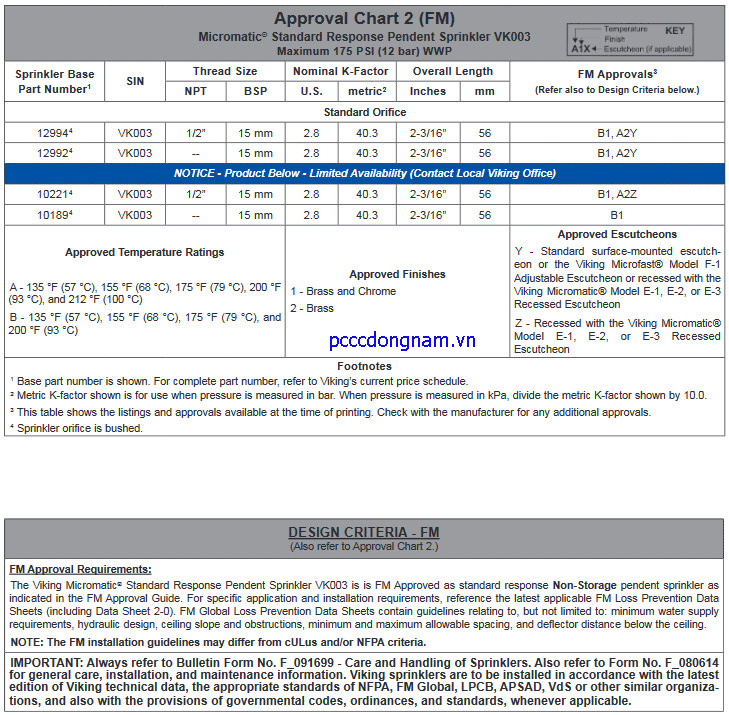

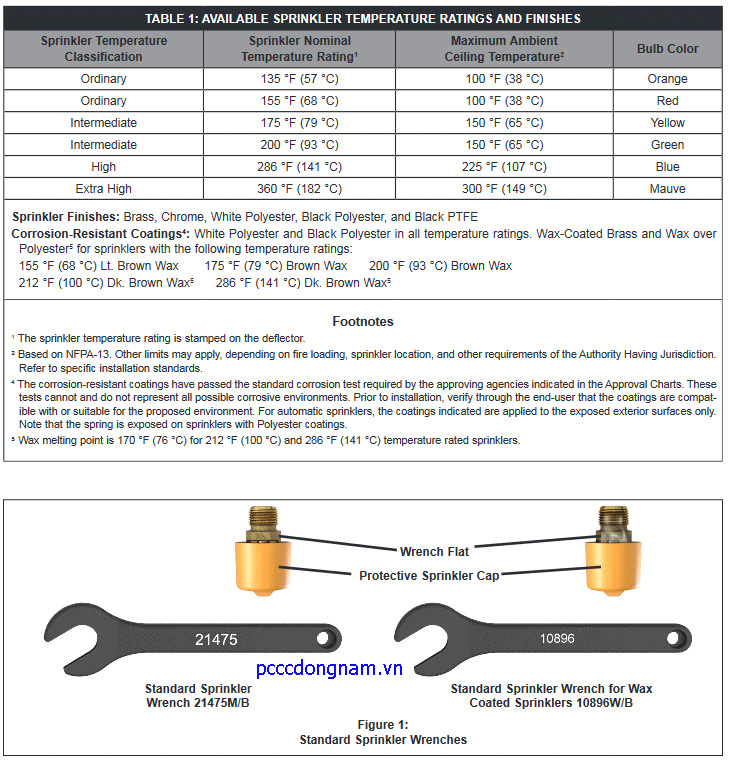

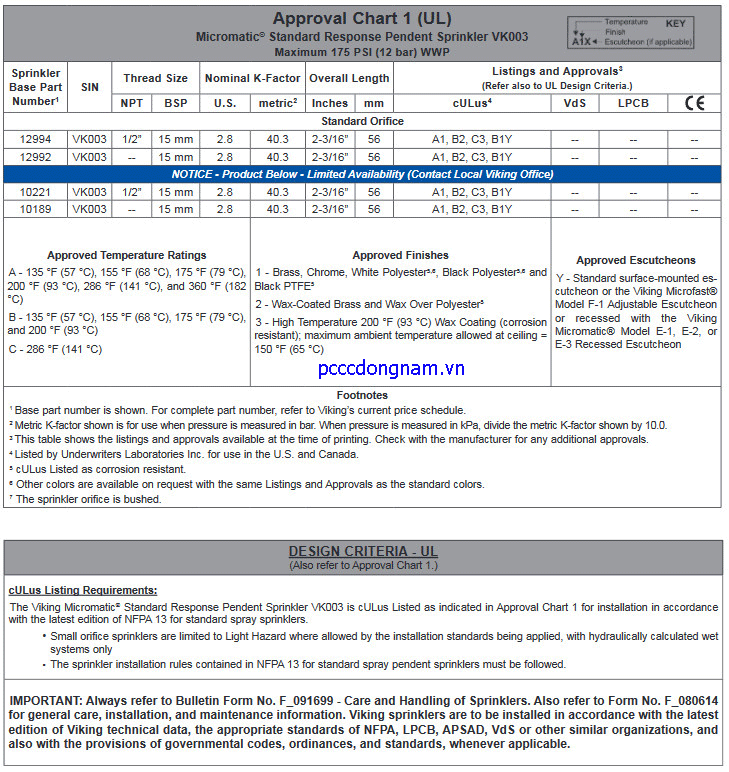

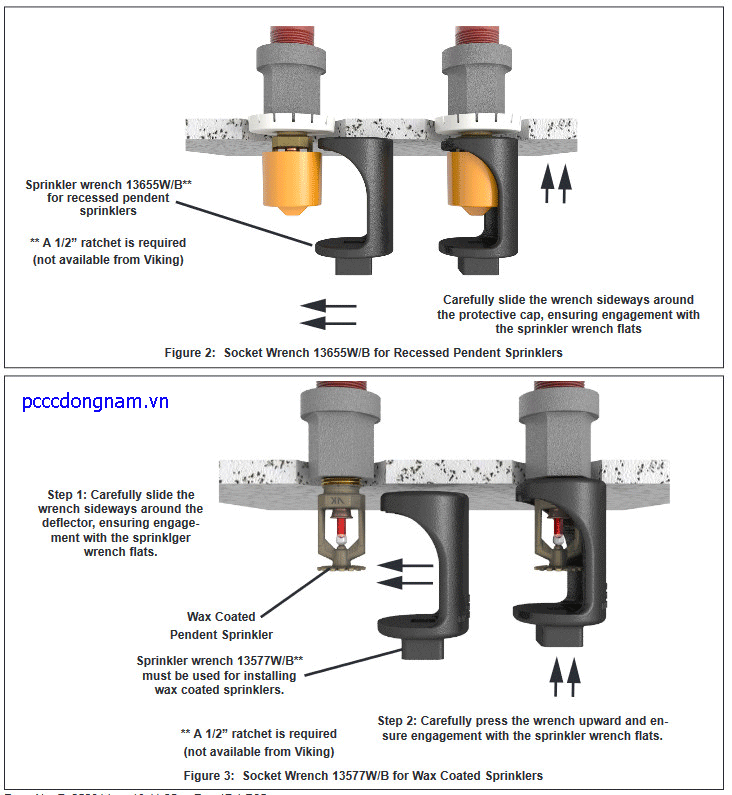

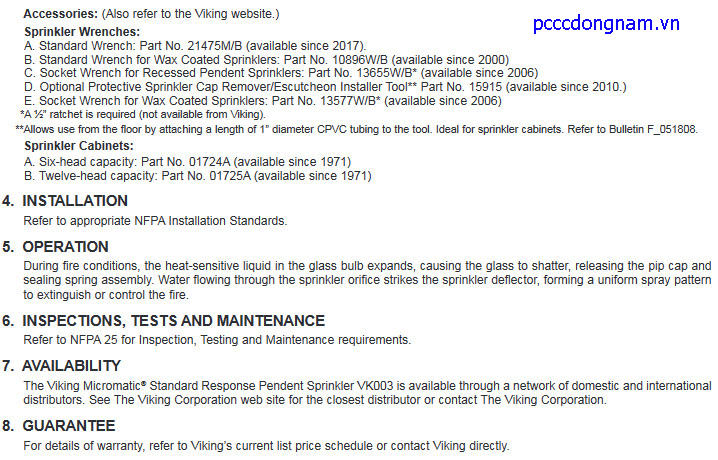

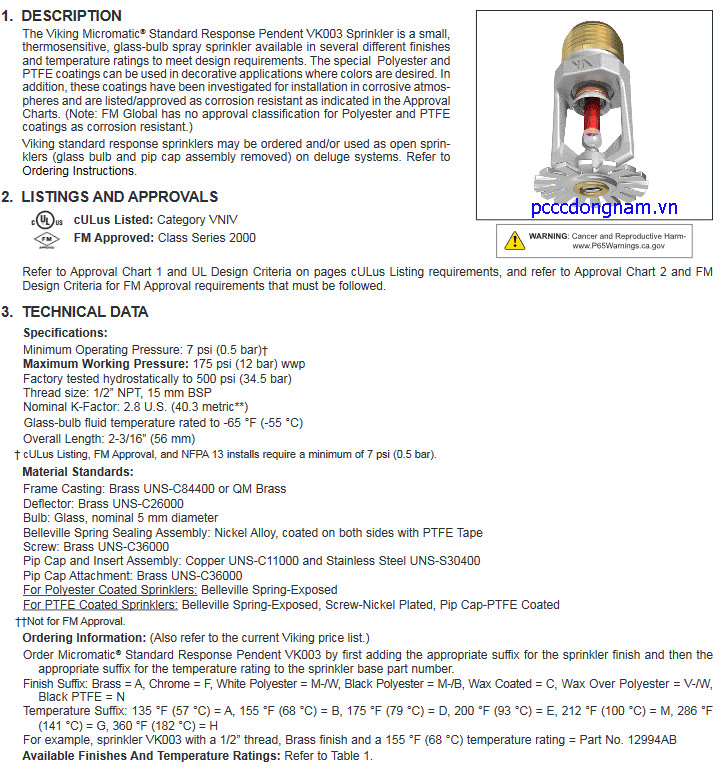

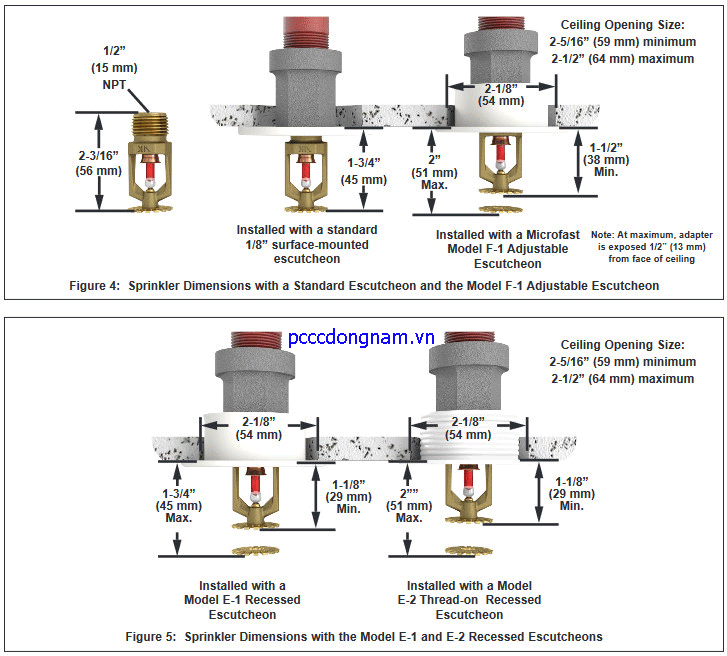

Catalog VK003 - Sprinkler Micromatic (K2.8)
1.gif "VK003 - Đầu phun Sprinkler Viking Micromatic(K2.8)")
2.gif "VK003 - Đầu phun Sprinkler Viking Micromatic(K2.8)")
3.gif "VK003 - Đầu phun Sprinkler Viking Micromatic(K2.8)")
4.gif "VK003 - Đầu phun Sprinkler Viking Micromatic(K2.8)")
(1).gif "VK003 - Đầu phun Sprinkler Viking Micromatic(K2.8)")
6.gif "VK003 - Đầu phun Sprinkler Viking Micromatic(K2.8)")
7.gif "VK003 - Đầu phun Sprinkler Viking Micromatic(K2.8)")
You will receive a quote from us as soon as possible..
