VESDA-E VEA,Addressable Tubular Smoke Detector
VEA-040-A00, VEA-040-A10
⭐provide VESDA's reliability and early warning smoke detection with precise addressing,VEA uses patented multichannel microbore tubes and patented air sampling point with three sensitivity settings ,VEA divides a protected space sampling locations, to identify threats for faster response, Features include This includes field programming, enhanced connectivity, and centralized testing & maintenance to reduce total cost of ownership. The VEA has an IP40 rated enclosure and is equipped with a powerful pump that provides microbore lengths up to 100 m (328 ft). Using VSC for test runs, a normalized procedure establishes the flow performance parameters. Local smoke test ports are used during maintenance to verify that the system is fully operational. Field replaceable components such as filters, smoke sensor modules and pumps &
- Determine the address
- 40 addressable microbore tubes with individual sampling points
- Guaranteed detection with end-to-end system integrity monitoring
- Uninterrupted business operations with centralized testing and maintenance
- Single sampling point or single tube clogging detection at set intervals
- Automatic sampling point presence and tube breakage detection at set intervals
- Automatic cleaning of the sampling point at set intervals
- Three sensitivity settings for sampling points
- Variable length capillary tubes, up to 100 m (328 ft)
- Laser based absolute smoke detection
- Coarse particle filtration and clean air barrier for optical protection
- Reliable linear pump technology
- LEDs for alarm and fault indication
- 3.5” color touch screen for status review
- Seven programmable relays
- Two GPIs, tracked and unmonitored
- Support PC software Xtralis VSC and VSM4
- iVESDA application to monitor the system on mobile devices
- IP 40 enclosure (not UL tested)
- Easy to mount with steel bracket
- Field replacement filter, smoke sensor module, pump and rotary valve
- VESDAnet . network
- Ethernet 100BASE-BILLION
- WiFi, 802.11 b/g/n
- Local host mode USB port
- Easy cable termination access
- Event Log (20,000 events)
Applications

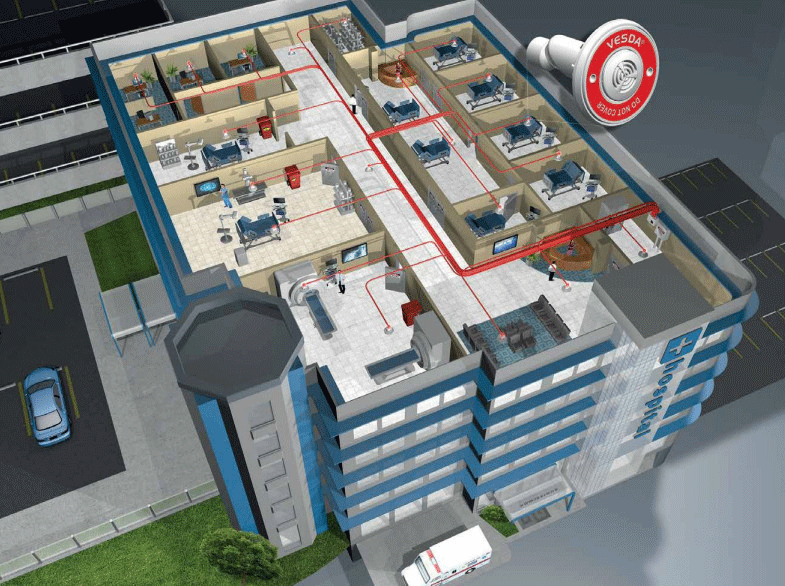

As a multi-channel addressable system, the VEA detector can divide a protected space sampling locations, allowing for the localization of potential fire sources for faster incident response. The detectors are suitable for protecting areas where pinpointing the location of fire events is essential, thus providing ideal fire detection solutions:
- Office - Hospital - Schools - Jail - Multi-storey house - Data centers - Warehouse
Standard
- UL
- ULC
- CSFM
- EN 54-20, ISO 7240-20: Type A, B và C
- VdS
- CE
