Sprinkler Viking VK352
Product details: Code VK352, Viking Brand, Made in America, Down Response Type, Quick Response, Factor K8.0, 12 Months Warranty, Contact 0917911114 to order, quote Viking Sprinkler
Code information : Viking VK352 sprinkler
Minimum operating pressure: 7 psi (0.5 bar)
Pressure up to 175 psi (12 bar)
Working pressure: 500 psi (34.5 bar)
Thread size: 3/4 1/3 NPT, 20 mm BSP
Nominal K-Factor: 8.0 US (115.2 figures)
Glass bulb liquid temperature rated to -65°F (-55°C)
Overall length: 2-1/4” (58 mm)
The cULus list, FM Standard and NFPA 13 settings require a minimum of 7 psi (0.5 bar).
Minimum LPCB and CE operating pressure is 5 psi (0.35 bar).

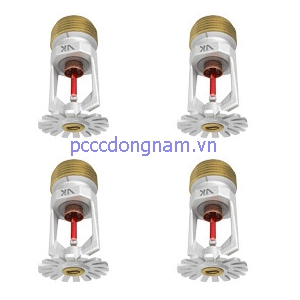

Viking Nozzles VK352 : Quick-response, Downward-facing, glass-black ball is designed to be compact, heat-resistant, surface coated with Polyester, Polytetrafluoroethelyne (PTFE) and Electroless Nickel (ENT) specifically used. Create colors according to design requirements. The coatings are FM Global certified ENT for corrosion standards.
You will receive a quote from us as soon as possible..
