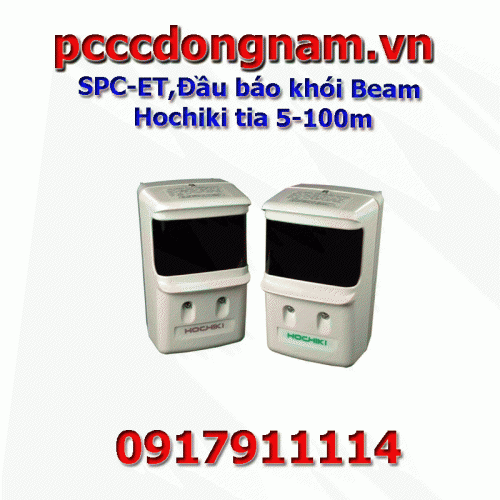

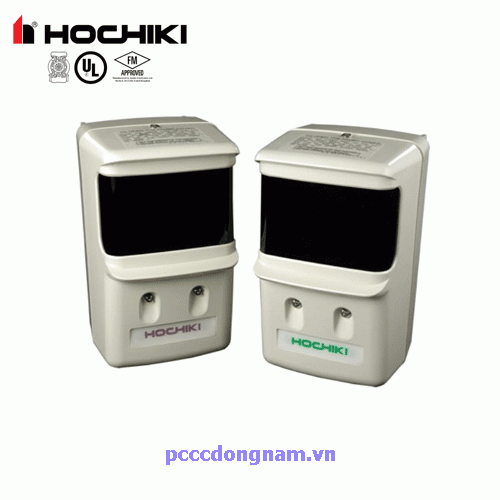

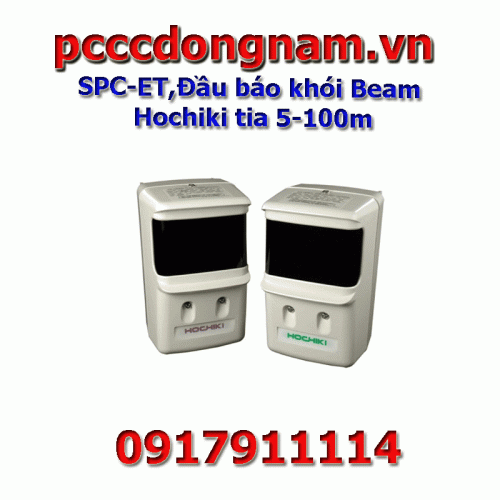

SPC-ET, 5-100m Beam Hochiki Beam Smoke Detector
Model SPC-ET is a two-wire beam smoke detector consisting of a transmitter and receiver with a distance of 5 - 100 m providing a maximum coverage range of 1500 m 2 When used on a single system In conventional systems, the transmitter and receiver can be powered directly the zone, or if required, the transmitter also has an option to be powered a separate 24 V dc supply. The SPC-ET can also be interfaced with Hochiki's ESP system, the receiver can be connected to the CHQ-SZM Single Area Module or the CHQ-DZM Dual Module and then the transmitter can be power the loop/zone directly or through a separate 24 V dc supply.
- Range 5 to 100 m
- Automatic pollution compensation
- Automatic signal strength adjustment
- Emitter can be powered directly the zone (or loop)
- There is a Latching or Non-Latching error relay
- Can be interfaced with ESP (analog) system via CHQ-SZM or CHQ-DZM
- Approved by LPCB
