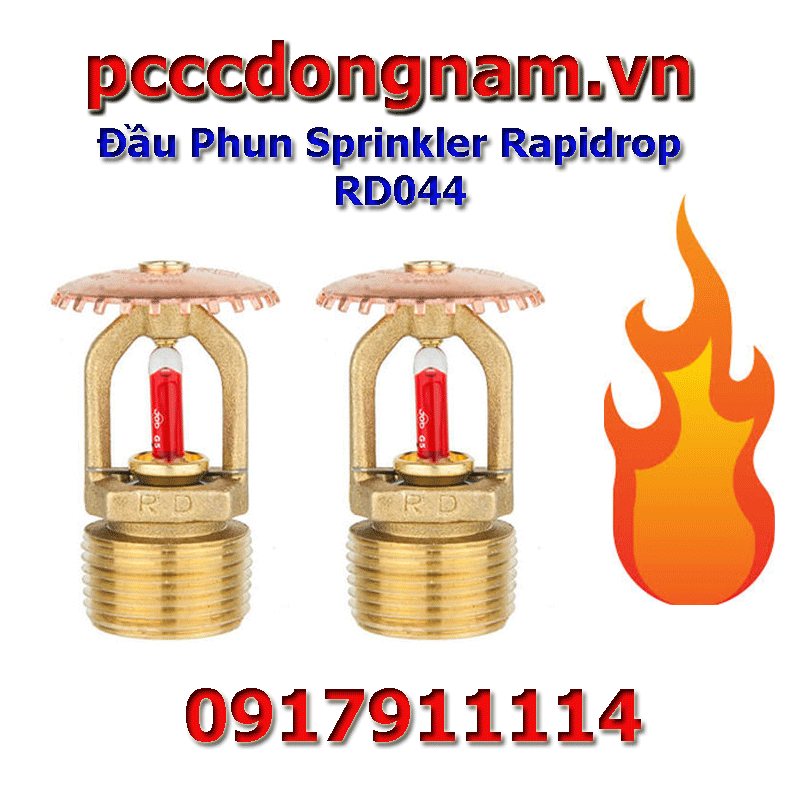

RD044 Rapid Response Upright Sprinkler

Manufacture: Rapidrop
Product code: RD044

Fast Response Upright Rapidrop Sprinkler Head RD044, K Factor = 115 (K8.0), Temperature 57ºC (135ºF) ⭐
✅ Made in UK ⭐
✅ Quality ⭐
✅ Guaranteed Genuine ⭐
✅ Quantity Unlimited
✅ Contact now 0917911114 for free consultation 24/7

Zalo

Consulting hotline: 0944934114
Product information

Detailed Description of the Rapid Response Upright Rapidrop Sprinkler Head RD044

Tổng hợp các mẫu đầu phun tiêu chuẩn UL/FM do hãng TPMC sản xuất...Tại đây

The Rapid Response Upright Rapidrop Sprinkler RD044 is a standard response glass bulb automatic sprinkler (Upright Standard). They are CE Marked, LPCB, VdS, FM approved, UL listed, standard hole fire sprinklers for installation in fire sprinkler systems. The sprinkler RD044 creates a hemispherical water distribution pattern below the deflector. In fire conditions, the heat causes the liquid in the bulb to expand, shattering the glass and releasing the spring assembly. Water flowing the hole the nozzle deflects the water diffusion a uniform spray pattern to extinguish or control the fire.

RD044 : Đầu Phun Sprinkler Rapidrop Hướng Lên Phản Ứng Nhanh



Quick Response Upward Rapidrop Sprinkler Specifications RD044

+ K factor K115 (K8.0)

+ Standard size 20mm ()

+ Thread sizes NPT, R3 / 4 (¾ LINE BSPT) available by special order Max.

+ Working pressure 12 bar (175 psi) Min

+ 0.5 bar (7psi) operating pressure Factory pressure test 34 bar (500 psi) Weight 79 g (2.8 oz)

+ Equipped with Bulb Protector : Removed after installing sprinkler



07 mẫu đầu phun Trung Quốc giá rẻ nhất hiện nay... Tại đây!!

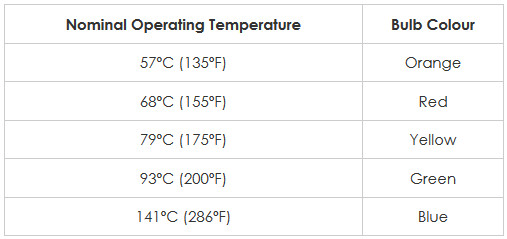

Working Temperature Rapid Response Upright Sprinkler Sprinkler RD044



RD044 : Đầu Phun Sprinkler Rapidrop Hướng Lên Phản Ứng Nhanh

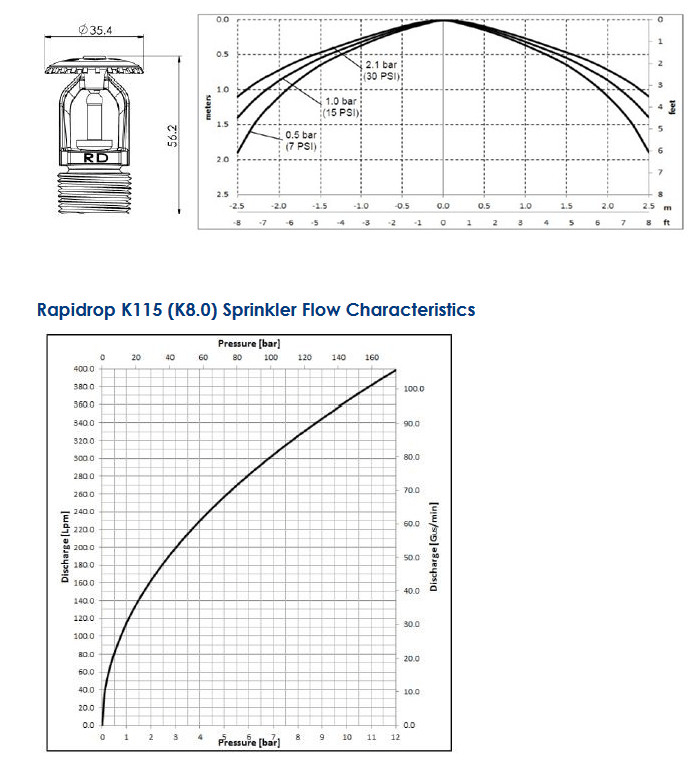

Design coverage and flow diagrams Rapid Response Upright Rapidrop Sprinkler RD044

Spray Spprler Sprinkler Installed in an upright position only, allowing the hemisphere to be flushed below the deflector with little or no water to be flushed upwards. For sprinkler coverage area and location, refer to standards NFPA 13 or EN 12845 or other installation rules for automatic sprinkler systems as required by the competent authority. The following details are provided for information only.



RD044 : Đầu Phun Sprinkler Rapidrop Hướng Lên Phản Ứng Nhanh

Quý khách có thể tham khảo 150 mẫu đầu phun Viking!!

RD044 : Đầu Phun Sprinkler Rapidrop Hướng Lên Phản Ứng Nhanh
