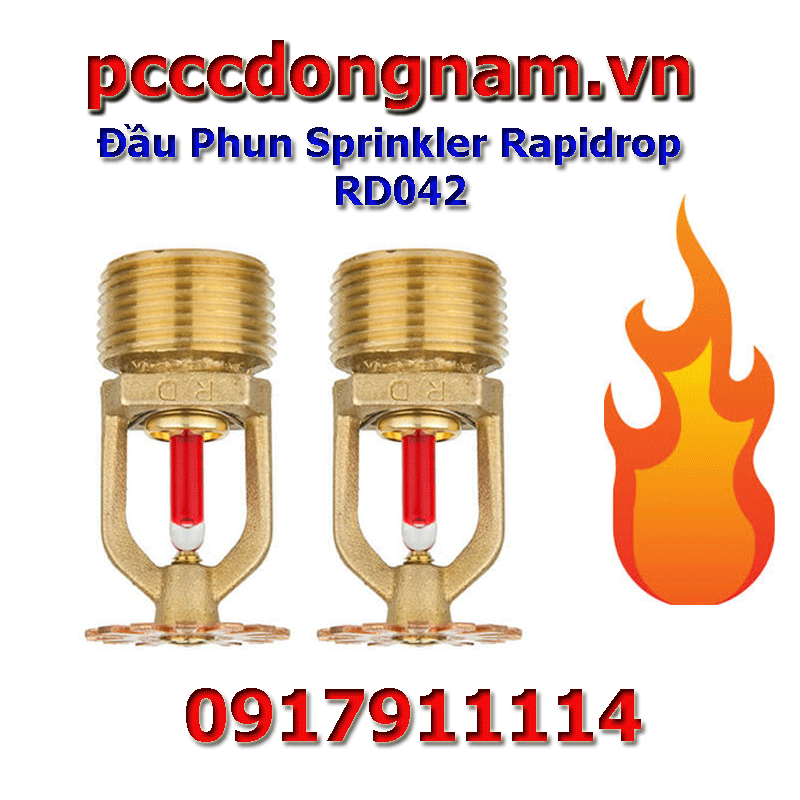

Rapidrop Sprinkler RD042

Manufacture: Rapidrop
Product code: RD042

Rapidrop RD042 Nozzle Standard Response, Pendent , Factor K=115 (K8.0), Temperature 57ºC (135ºF) ⭐
✅ Quality ⭐
✅ Guaranteed Genuine ⭐
✅ Unlimited Quantity ⭐
✅ Please contact 0917911114 for free consultation 24/7

Zalo

Consulting hotline: 0944934114
Product information

Features of Rapidrop Nozzle RD042

Đầu Phun Rapidrop RD042, Đầu Phun Viking

Rapidrop Nozzle RD042 automatic water spray independent standard reactive glass bulb. They are CE Marked, LPCB, VdS, FM approved, UL listed, standard hole fire sprinklers for installation in fire sprinkler systems. The sprinkler creates a hemispherical water distribution pattern below the deflector. In fire conditions, the heat causes the liquid in the bulb to expand, shattering the glass and releasing the spring assembly. Water flows the hole the sprinkler deflector which diffuses the water a uniform spray pattern to extinguish or control the fire.

Đầu Phun Rapidrop RD042, Đầu Phun Viking

Specifications of Rapidrop Nozzle RD042

+ Factor K 115 (8.0)

+ Standard size 20 mm (¾)

+ Standard thread size NPT

+ Reaction : Standard

+ Bulb: 5mm Maximum working pressure 12.1 bar (175 psi)

+ Material: brass, chrome and painted white finish. Special RAL colors available upon request

Standard: FM Approved, UL Listed, LPCB, VdS, CE, Gost

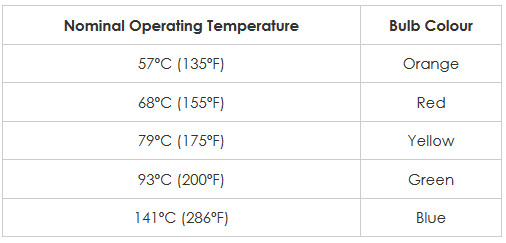

Rapidrop Nozzle Working Temperature RD042



Đầu Phun Rapidrop RD042, Đầu Phun Viking

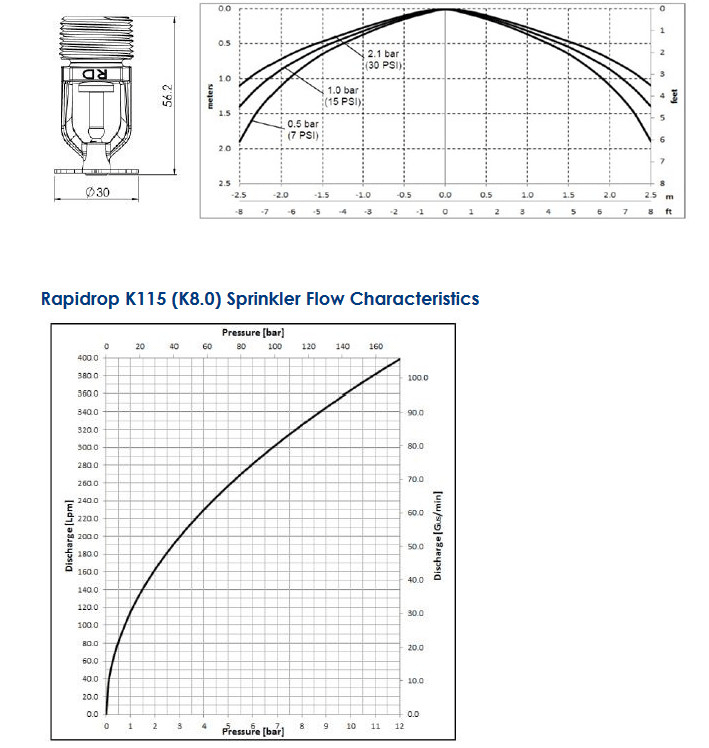

Rapidrop RD042 Nozzle Flow Diagram

Đầu Phun Rapidrop RD042, Đầu Phun Viking



The Rapidrop RD042 Nozzle independently sprays water for standalone installation only creating hemispheric discharge below the deflector with little or no water discharge upwards. For sprinkler coverage area and location, refer to standards NFPA 13 or EN 12845 or other installation rules for automatic sprinkler systems as required by the competent authority.



Tổng hợp các mẫu đầu Phun Sprinkler Rapidrop - Sản xuất tại Anh....Tại đây!!



Xem thêm
Rút gọn
