NK-FDX-8,Normal Nittan Monitoring Module,Fire Alarm Modules
Regular Nittan monitoring module NK-FDX-8, also known as UL/FM standard fire alarm device imported in the UK
✅ Unlimited supply, Guaranteed genuine commitment, Contact now 0917 911 114 Free consultation 24/7

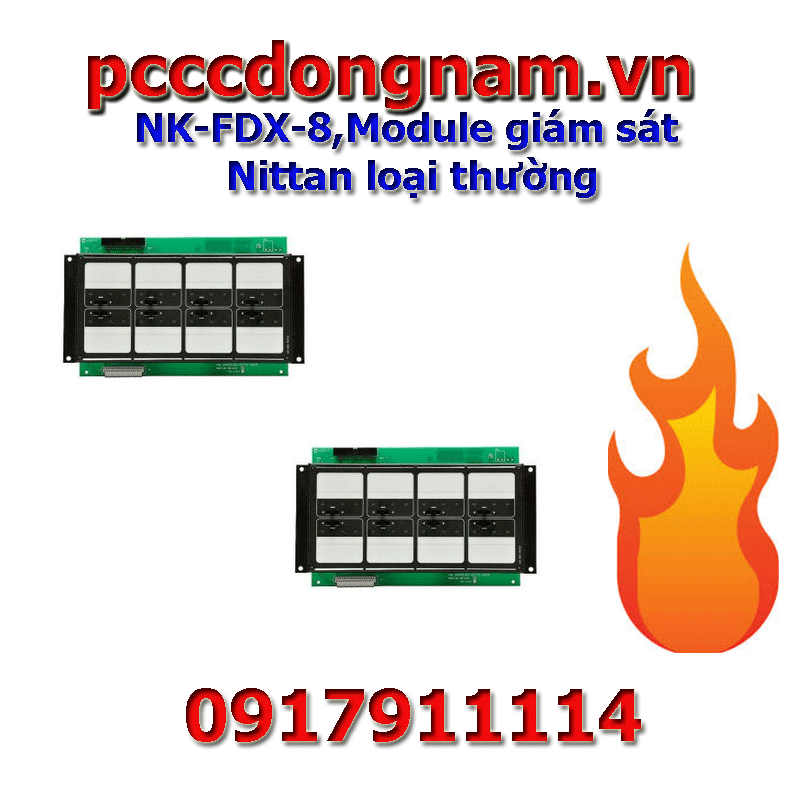

Description of Normal Nittan Monitoring Module NK-FDX-8
Standard Nittan monitoring module NK-FDX-8 fan is available. The NK-FDX-8 provides switch control and LED indication of 8 fan damping zones. The NK-FDX-8K offers switch control of 7 fan damping zones with terminals for one key press.
Both the NK-FDX-8 and NK-FDX-8K are used in conjunction with the Nittan Fire Alarm Cabinets NFU-7000 and NFU-7000L.
Features, Features Normal Nittan Monitoring Module NK-FDX-8
NK-FDX-8 . fan damping control
Nominal 24 V DC, range 20 to 39V DC
Connect via a ribbon cable to P2 of the previous display module
Provides 8 configurable output circuits or fan damper control
Standby: 15mA max, Alarm (all LEDs ON): 35mA max.
NK-FDX-8K . fan damping control
Nominal 24 V DC, range 20 to 39V DC
Connect via a ribbon cable to P2 of the previous display module
Provides 8 configurable output circuits or fan damper control, 1 output controlled via keylock
Standby: 15mA max, Alarm (all LEDs ON): 35mA max.
You can refer to products genuine fire alarm equipment...HERE
You will receive a quote from us as soon as possible..
