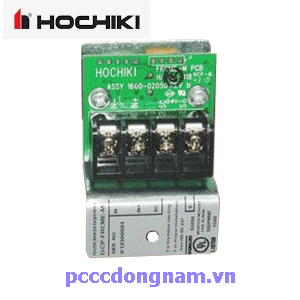

DCP-FRCME-M: Input monitoring module
Compliant with UL 864 9th edition. Open to supervision by contact Fast, highly reliable contact monitoring using DCP (Digital Communications Protocol) protocol. Up to 127 devices can be installed on 1 DCP loop. It is possible to program the monitor normally closed NO or normally open NC. Type A or B installation.
Specifications Power Supply (S-SC) 25.3 ~ 39 VDC
Current Consumption 339μA (Typical) 358μA (Alarm) 1 input programmable input
End-of-line resistor 10K Ohms
Maximum number of devices per 1 Loop 127
Dimensions 1.75"W x 2.37"H x 0.5"D
Operating Temperature 32°F (0°C) 120°F (49°C)
Carrying case when installing Power box 2'' Relative humidity 90% RH non-condensing
