IG100 inert gas fire extinguishing system, working pressure 15MPa

Manufacture: Xingjin
Product code: IG100 inert gas

Cylinder volume:90L
✔️ Capacity of gas:16.04kg, Extinguishing model: Spill ,Agent: IG100 (100% pressurized nitrogen), Working pressure:15MPa , Color:Red , Brand: Xingjin , Certification:CAL, CMA, CNAS, ILAC-MRA, CCC ,Model Number:QMD15 / 80


Consulting hotline: 0944934114
Product information


- An inert gas fire extinguishing system is a safe, natural way to extinguish a fire. Due to its unique patented valve assembly, entry a protected zone in the industry requires 60 seconds but at a steady flow rate - preventing destructive turbulence occurring. This constant flow rate allows the use of small diameter, low pressure (and less expensive) piping the inert gas container to the nozzle. And, the required vent area is much smaller, which can reduce installation costs by up to 60% on ventilation hardware.


STT Descriptions Specifications
1 Pressure 15Mpa
2 Model QMD15 / 80 QMD15 / 90
3 Capacity 80Ltr 90Ltr
4 Gas weight 14,25kg 16,04kg
5 Diameter Φ279mm Φ325mm
6 Height 1578 + 73mm 1345 + 60mm
7 Activation time ≤10 second
8 Air intake rate 0,178kg / L
9 Activation Source DC24V / 1.6A
10 Device pressure 6,0 ± 1,0Mpa (20 ℃)
11 Temperature nhiệt độ: 0 ~ 50 ℃
12 Max pressure 17,2Mpa
13 Min pressure 13,6Mpa


- Computer room, telecommunications room, transformer room, power switching and distribution room, generator room, filter tank, drying equipment, spray booth, electrical tool room, control center, library, archives, treasures of cultural relics, etc.


- Compared with the traditional 15MPa system, the number of extinguishers can be saved 25% -50%.

- The building area between the pillars is effectively reduced, and the overall utilization and occupancy rate of the building is improved. - Continuous 6MPa low pressure release can reduce the cost of pipes and pipe fittings.

- 6MPa constant release pressure provides more effective and lasting pressure, and the transmission distance can reach 200 meters.

- The release of the entire system with low pressure can only have less impact on site personnel, equipment and building structures and more safety.

- The external constant pressure reducer can only bear the pressure when the system is spraying, which is convenient for disassembly and maintenance, and effectively reduces the failure rate of the system.

- After injection, the system does not need to replace any parts, simple disassembly and secondary filling, the system can be quickly put operation.

- The open area of ​​the pressure reducing device is reduced. The input cost of the pressure reducing device is directly reduced, and the safety lock is simpler to install and arrange.

- Nitrogen Fire Extinguishing System (IG-100) can be widely used for quick response to fire, protection of personnel on construction site, unexpected fire, critical places sensitive to chemical reactions and effectively protect the safety of people and property.

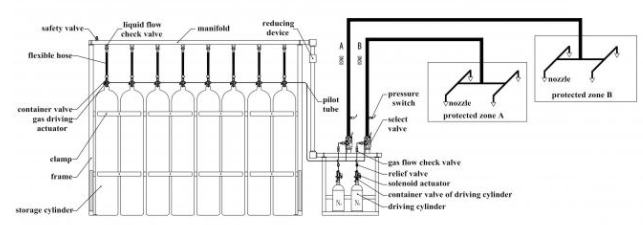

Hệ thống chữa cháy bằng khí trơ IG100,Áp suất làm việc 15MPa

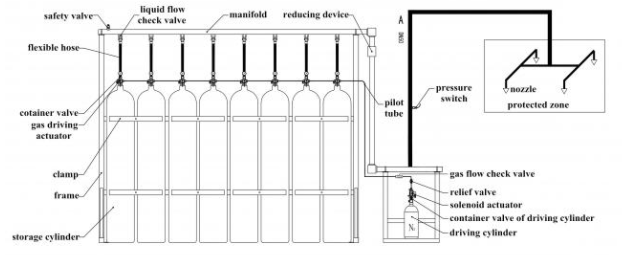

Hệ thống chữa cháy bằng khí trơ IG100,Áp suất làm việc 15MPa
