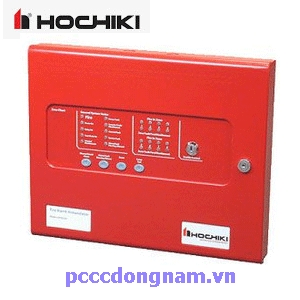

HCV2 4 8-RA ,Secondary display for HCV hub
HCV2/4/8-RA : Secondary display for the center HCV is one of the devices used for Hochiki fire alarm system Top 5 product quality reviews 1010 reviews Best price Made in the UK Report 12 months warranty Contact 0917911114
Description:
Includes 2, 4, and 8 channel types. Each hub connects up to 7 sets.
Communicate with the center by 2 wires via RS485, so it saves wires.
Full display of information such as the main cabinet. There are Fire, Fault contacts on the cabinet.
Parameter: Power supply 24 VDC
Dimensions 385mm (W) x 310mm (H) x60mm (D)
Weighs 9 lbs. Color Red Material: 1.2mm . thick steel
Connection wire length 1200 meters
Fault contact 30VDC 1 Amp Fire
Contact 30VDC 1 Amp Static current HCV2-RA: 0.075
Amp, HCV4-RA: 0.075 Amp, HCV8-RA: 0.094
Amp Alarm current HCV2-RA: 0.094
Amp, HCV4-RA: 0.098
Amp, HCV8-RA: 0.11 Amp
Wire size that can be connected to dominoes 2.5 mm
Humidity 90% RH (No Condensation)
Temperature -5°C to 50°C
You will receive a quote from us as soon as possible..
