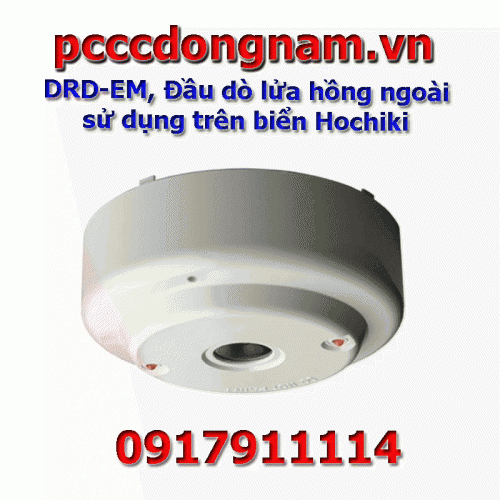

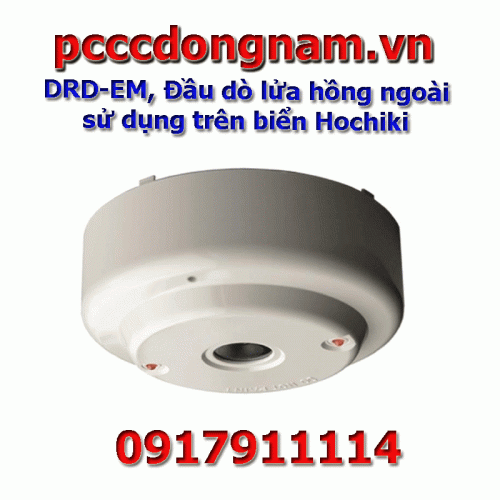

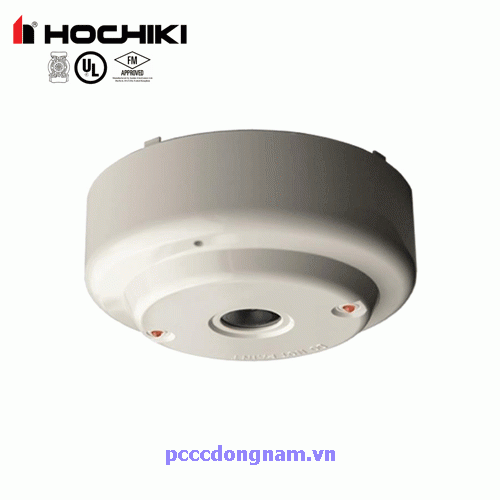

DRD-EM, Hochiki Marine External Infrared Flame Detector
DRD-EM Single IR Approved Infrared Flame Detector DRD-EM is a marine approved flame detector designed for internal use to detect large flames detector conforms to the CDX marine approved standard mounting base (YBN-R/6M) The detection area is a 90
° cone and the detection range is up to and including 25 m. Adjustable stand is available YZU-A.
- Class 1 performance as defined in BS EN54-10:2002 (range up to 25 m)
- Single infrared technology
- Strong and slim design
- Low current consumption
- Easy to install
- Conforms to CDX approved marine standard base
- Double LED lights for 360 degree viewing angle
- Approved by LPCB & VdS
- Approved by MED by GL Parameter
Ordering codes DRD-EM and DRD-EM (WHT)
Current Consumption @ 24Vd.c. Quesent 70 AA, Alarm 40 mA
320 A . spike
Minimum alarm current 6 mA
Voltage range 15 - 30 V dc Rated IP IP42
Operating temperature -10°C to +50°C
Class 1 classification EN54-10:2002
90° . cone detection area
Detection range (max.) 25 m
Ivory or white Compatible CDX base YBN-R/6M
Weight (g) / Dimensions (mm) 124/100 diameter x 37.3 height
