CO2 Gas Nozzle-360 Degree CO2 Automatic Gas Discharge Nozzle

Manufacture: INGESCO
Product code: SP360

CO2 Gas Nozzle - 360 degree CO2 Automatic Gas Discharge Nozzle Top 5 good reviews Quality service Reputable sales Best price  0917911114









Zalo

Consulting hotline: 0944934114
Product information

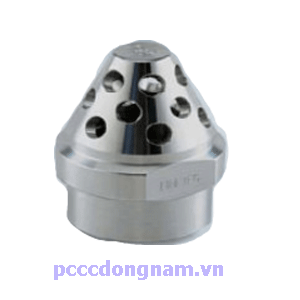

Đầu Phun Khí CO2-Đầu Phun Xả Khí Tự Động CO2 360 độ

360 degree air nozzle – Model: SP360-15 (20, 32, 40,50)

Đầu Phun Khí CO2-Đầu Phun Xả Khí Tự Động CO2 360 độ

360 degree air nozzle – Model: SP360-15 (20, 32, 40,50)

Manufactured by PNP in Korea, according to KS, KFI standards The gas nozzle is responsible for distributing gas to protected areas. There are many types of gas nozzles with different sizes, with 2 commonly used types being 360 degrees and 180 degrees. The minimum height that can be installed is 0.3m and the maximum is 7.5m the floor level. The minimum height to be installed is 0.3m, in case the height of the canopy exceeds 7.5m, another nozzle will be installed. For liquid fires, the width of the pipe mouth is 10%~40% of the cross-sectional area of ​​the connecting pipe, for solid fires, it is 5%~40% of the cross-sectional area of ​​the pipe Minimum spray pressure: 29bar (2.9MPa)

Material: Aluminum (KS D 6763 A6061) / Brass (KS D 5101 C3604)

Model No. A B C D HOLE ORIFICE(t)
SP360-50 82.6 78.1 56.9 10 24 3.2
SP360-40 61 65 45.1 8.1 18 2.0
SP360-32 69 57 39.3 8.0 18 1.5
SP360-25 55 44 30.2 6.5 18 1.8
SP360-20 50 39 24.3 7.3 8 1.5
SP360-15 37.2 30.6 18.8 5 8 1.5



Xem thêm
Rút gọn
