Beam D296 Smoke Detector, Bosch conventional fire alarm system
Beam D296 Smoke Detector is a Device located in: UL/FM standard conventional fire alarm system
⭐ 12 month warranty , Contact: hochiki fire alarm equipment quote 2019 ,Free consultation 24/7
Feature description Beam D296 Smoke Detector-Common fire alarm system Bosch
The D296 (24V) Long Range Smoke Detector is used in clearly open structures such as arenas, atriums, auditoriums, ballrooms, churches, factories, museums and warehouses. Each detector includes transmitter, receiver and remote indicator plate. Because transmitters and receivers are typically ceiling mounted or high on walls or poles, they provide an efficient and unobtrusive means of public areas for fire protection. The D344-RL Remote indicator plate, included with the detector, provides a convenient means of verifying detector status. Install it anywhere within 500 ft (152 m) of the beam receiver (when using 18 AWG [ISO 0.75 mm2] wire). The indicator panel has three indicators for normal, fault and alarm indication and test points for monitoring the detector circuit.
The D296 (24V) Long Range Smoke Detector is used in clearly open structures such as arenas, atriums, auditoriums, ballrooms, churches, factories, museums and warehouses. Each detector includes transmitter, receiver and remote indicator plate. Because transmitters and receivers are typically ceiling mounted or high on walls or poles, they provide an efficient and unobtrusive means of public areas for fire protection. The D344-RL Remote indicator plate, included with the detector, provides a convenient means of verifying detector status. Install it anywhere within 500 ft (152 m) of the beam receiver (when using 18 AWG [ISO 0.75 mm2] wire). The indicator panel has three indicators for normal, fault and alarm indication and test points for monitoring the detector circuit.

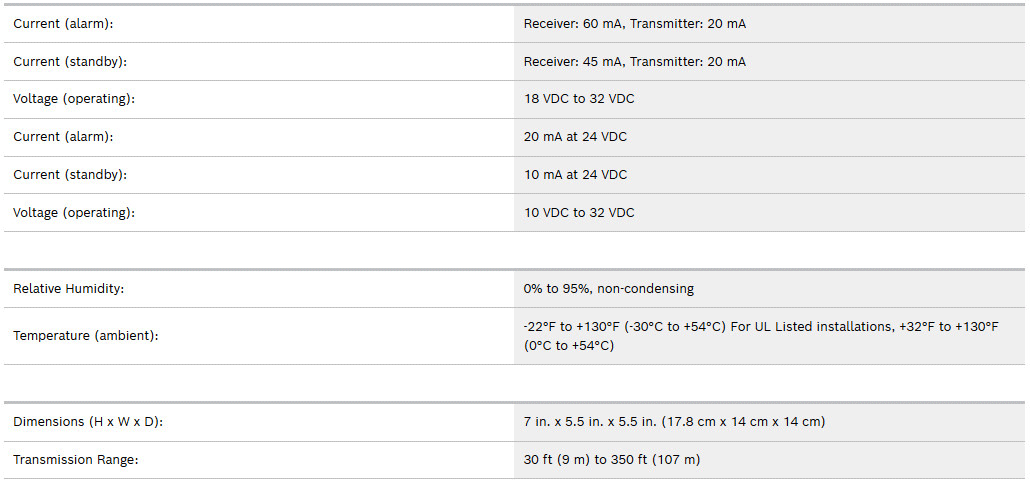

Specifications of Smoke Detector Beam D296-Common fire alarm system Bosch
You can refer to products genuine fire alarm equipment...HERE
You will receive a quote from us as soon as possible..
