80L and 140L inert nitrogen gas fire extinguishing system

Manufacture: Xingjin
Product code: 80L and 140L inert

Capacity : 80L, 140L
✔️ Extinguishing model : Spill ,Type :IG100 (100% pressurized nitrogen) , Work pressure: 30MPa ,Maximum work pressure: 36.6MPa , Minimum. Work pressure: 27MPa ,Color: Red ,Air weight: 24.7 Kg, 43.2 Kg , Brand: Xingjin ,Certifications: CAL, CMA, CNAS, ILAC-MRA, CCC , Model Number: QMD30 / 80, QMD30 / 140

Zalo

Consulting hotline: 0944934114
Product information

Description 80L and 140L inert nitrogen gas fire extinguishing system

The IG-100 uses Nitrogen for clean, safe and 100% eco-friendly fire fighting. This gas is widely used in many fire extinguishing systems due to its excellent pressure conditions. In this case, it complies with equal extinguishing efficiency by reducing the oxygen concentration to extinguish the fire, while leaving a suitable oxygen ratio for the occupied areas. Due to this feature, people can be protected in potential places if they are in the enclosure at the time of the fire, ensuring their safe evacuation both in terms of oxygen levels in the room and There are no chemicals in the discharge. In addition, its physical and dispersion properties help maintain visibility during evacuation

Specifications 80L and 140L inert nitrogen gas fire extinguishing system

STT Descriptions Specifications
1 Working Pressure 30MPa
2 Healing model QMD30 / 80 QMD30 / 140
3 Gas capacity 80Ltr 140Ltr
4 Mass of gas 24,7 kg 43,2 kg
5 Diameter Φ267mm Φ356mm
6 Average height 1770mm ± 10mm 1825mm ± 20mm
7 Activation time ≤120 second
8 Fill rate (@ 200 bar) 0,31kg / L
9 Activation Source DC24V / 1.6A
10 Nitrogen pressure of the device 6,0 ± 1,0Mpa (20 ℃)
11 Temperature Temperature: 0 ~ 50
12 Maximum pressure 36,6 MPa
13 Minimum pressure 27 MPa

Compared with the traditional 15MPa system, the number of extinguishers can be saved 25% -50%.

The construction area between the pillars is effectively reduced, while improving the occupancy rate and overall use of the building.

6MPa continuous low pressure release can reduce the cost of pipes and pipe fittings.

6MPa continuous release pressure provides more effective and lasting pressure, and the transmission distance can reach 200 meters.

The release of the entire system with low pressure can only have less impact on staff on site, equipment and building structure and more safety.

The external constant pressure reducer can only bear the pressure when the system is spraying, which is convenient for disassembly and maintenance, and effectively reduces the failure rate of the system.

After injection, the system does not need to replace any parts, simple disassembly and secondary filling, the system can be quickly put operation.

The open area of ​​the pressure reducing device is reduced. The input cost of the pressure reducing device is directly reduced, and the safety lock is simpler to install and arrange.

Nitrogen Fire Extinguishing System (IG-100) can be widely used for quick response to fire, protection of personnel on construction site, unexpected fire, critical places sensitive to chemical reactions and effectively protect the safety of people and property..

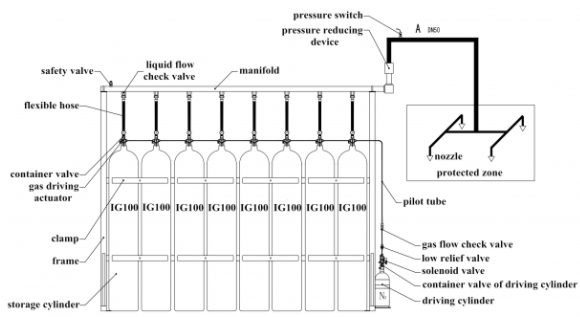

Hệ thống chữa cháy khí nitơ trơ 80L và 140L

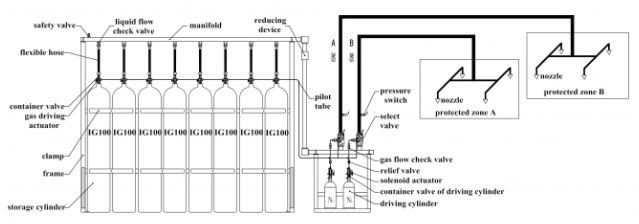

Hệ thống chữa cháy khí nitơ trơ 80L và 140L

You can refer to similar products..HERE
