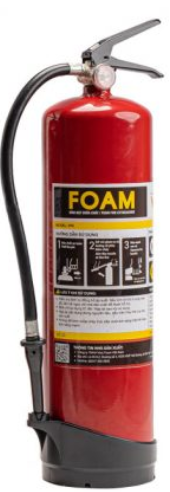

Vinafoam VF6 (foam) water-based portable bottle
It is a 6L WATER-BASED FIRE EXTERIOR made in Vietnam according to ISO 7165:2009 standard; TCVN 7026:2013, providing standard specifications with inspection stamp 2022
.png "Vinafoam VF6 (foam) water-based portable bottle")
Descriptions Vinafoam VF6 (foam) water-based portable bottle
FRIENDLY
Cylindrical body made of low carbon steel, produced by deep drawing stamping technology. The inside of the bottle is coated with heat-resistant plastic, resistant to chemical corrosion at high pressure. The outside is powder coated in red.
VALVE AND MANUFACTURER
The main material is copper alloy, produced by casting and stamping method according to European standards, number Z-PRC-13-12-5010147392-001 (for valve fittings, pressure gauges).
NOZZLE Nozzle made of PVC material ensures durability and flexibility in the operating temperature range. Nozzle fitted with a complete fire-fighting foam nozzle. Components are fabricated to a high standard of precision according to ISO 2768-1/2.
FIRE EXTINGUISHING CHEMICAL
Ready-mixed foam solution for fire fighting meets the standards of TCVN 7278-1:2003. Propellant GAS The propellant uses pure N2 gas, fully charged according to the design pressure of the fire extinguisher, anti-oxidation and safe to use.
US PRODUCT STANDARD ISO 7165:2009; TCVN 7026:2013
APPLICATION Suitable for Class A, Class B, Class C . fires
EXPIRY DATE The shelf life is 5 years if the storage and handling follow the manufacturer's instructions.
SPECIFICATIONS Vinafoam VF6 (foam) water-based portable bottle
| Fire extinguishing capacity | 1A 55B C | |
| Fuel charge amount (l) | 6L ± 2% | |
| Body |
Technological process Outer paint layer Corrosion resistance Vibration resistance |
Deep claw stamping Powder coating, minimum thickness 50mm Minimum 480 hours according to ISO 9227:1990 40Hz – Amplitude: 0.25 mm ± 0.03 mm |
|
Nozzle |
Made of PVC Nozzle length |
Comes with a fire extinguisher foam nozzle 560mm |
| Fire fighting chemicals | Ready-to-use foam fire extinguishing solution | |
| Air propulsion | N2 | Purity 99.999% |
| Effective spray time(s) |
92 |
|
| Effective spray range (M) | 5 ~ 8 | |
| Test pressure (bar) | 25 | |
| Operating pressure (bar) | 11 ~ 13 | |
| Operating temperature range (oC) | 5 ~ 60 | |
| Size (mm) |
Total height Outer Diameter |
640 155 |
| Total weight (kg) | ~10 | |
| Packing Specifications |
Packing Packing size (mm) Packing weight (kg) Pallets Pallet size (mm) |
Cartoon box Length x Width x Height: 652 x 182 x 172 10.5 56 jars/pallet CP3: 1140 mm x 1140 mm x 1580 mm |
Please refer to unburnt equipment provided by Dong Nam... HERE
You can refer to the manufacturer for more information....HERE
You will receive a quote from us as soon as possible..
