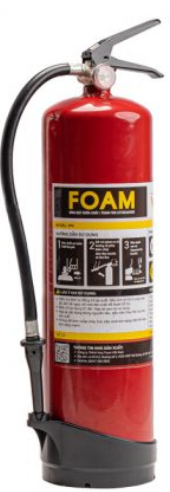

VF9 Water-Based Fire Extinguisher 9 liter, Foam Fire Extinguisher
Type of fire extinguisher made in Vietnam with 9 liter foam capacity with the stamp of inspection in 2023, providing a 12-month warranty, contact immediately, available at Dong Nam warehouse
.png "VF9 Water-Based Fire Extinguisher 9 liter, Foam Fire Extinguisher")
9L WATER-BASED FIRE EXTERIOR FRIENDLY
Cylindrical body made of low carbon steel, produced by deep drawing stamping technology. The inside of the bottle is coated with heat-resistant plastic, resistant to chemical corrosion at high pressure. The outside is powder coated in red.
VALVE AND MANUFACTURER The main material is copper alloy, produced by casting and stamping method according to European standards, number Z-PRC-13-12-5010147392-001 (for valve fittings, pressure gauges).
NOZZLE
Nozzle made of PVC material ensures durability and flexibility in the operating temperature range. Nozzle fitted with a complete fire-fighting foam nozzle. Components are fabricated to a high standard of precision according to ISO 2768-1/2.
FIRE EXTINGUISHING CHEMICAL
Ready-mixed foam solution for fire fighting meets the standards of TCVN 7278-1:2003. Propellant GAS The propellant uses pure N2 gas, fully charged according to the design pressure of the fire extinguisher, anti-oxidation and safe to use.
US PRODUCT STANDARD ISO 7165:2009; TCVN 7026:2013
APPLICATION
Suitable for Class A, Class B, Class C . fires E
XPIRY DATE
The shelf life is 5 years if the storage and handling follow the manufacturer's instructions.
SPECIFICATIONS
| Fire extinguishing capacity | 1A 55B C | |
| Fuel charge amount (l) | 9 ± 2% | |
| Body |
Technological process Outer paint layer Corrosion resistance Vibration resistance |
Deep claw stamping Powder coating, minimum thickness 50mm Minimum 480 hours according to ISO 9227:1990 40Hz – Amplitude: 0.25 mm ± 0.03 mm |
|
Nozzle |
Made of PVC Nozzle length |
Comes with a fire extinguisher foam nozzle 660mm |
| Fire fighting chemicals | Ready-to-use foam fire extinguishing solution | |
| Air propulsion | N2 | Purity 99.999% |
| Effective spray time(s) |
92 |
|
| Effective spray range (M) | 5 ~ 8 | |
| Test pressure (bar) | 25 | |
| Operating pressure (bar) | 11 ~ 13 | |
| Operating temperature range (oC) | 5 ~ 60 | |
| Size (mm) |
Total height Outer Diameter |
736 176 |
| Total weight (kg) | ~10 | |
| Packing Specifications |
Packing Packing size (mm) Packing weight (kg) Pallets Pallet size (mm) |
Cartoon box Length x Width x Height:739 x 195 x 193 15.5 kg48 jars/pallet CP3: 1100 x 1300 |
Please refer to unburnt equipment provided by Dong Nam... HERE
You can refer to the manufacturer for more information....HERE
You will receive a quote from us as soon as possible..
