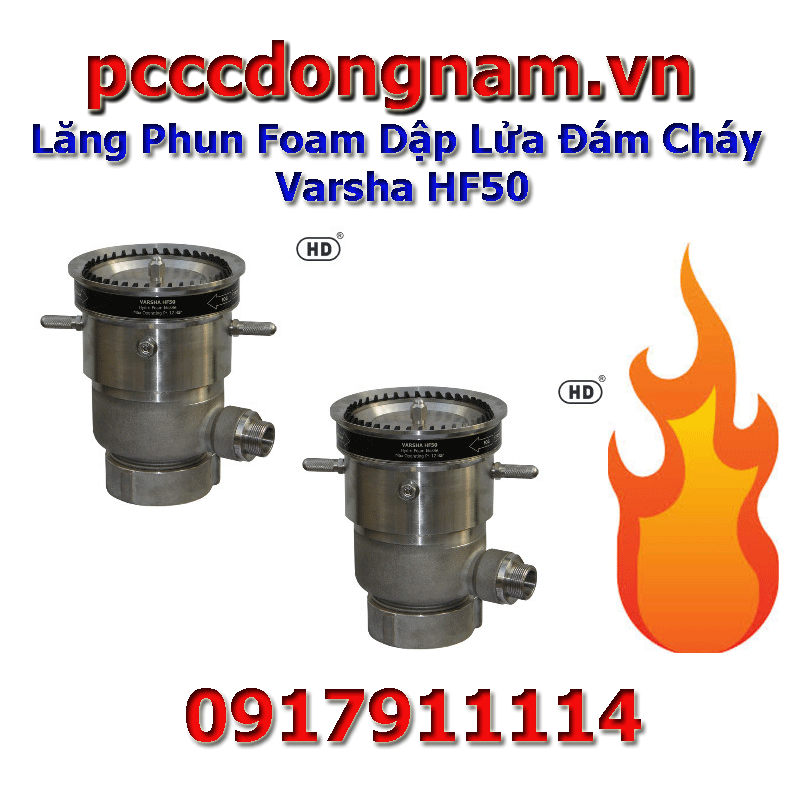

Varsha HF50 Fire Extinguishing Foam Spray Hose
Varsha HF50 Fire Extinguisher Foam Mausoleum is a Southeast fire protection device Supplying a large number of HD Fire Low Expansion Foam Sprayers Unlimited quantity Direct consultation: 0917.911.114
Application of Varsha HF50 . Fire Extinguishing Foam Tomb
Varsha HF50 - Hydraulic foam nozzle has been designed for a wide flow range 3030 to 4750 LPM (800 to 1250 US GPM) for use with the HD Fire sprinkler. These are fixed, simple and sturdy nozzles with outstanding flow and reach. Straight stream maximum reach can be easily changed wide mist to flow pattern by rotating the pattern adjustment sleeve. The Varsha HF50 Fire Extinguishing Foam Sprayer is provided with rotating teeth for directional control. Manufactured in aluminum, copper or stainless steel with an SS interior. It is an inductive faucet equipped with a 3.0 meter long foam lifter with swivel connection. The Varsha HF50 can be used as a sprinkler and when foam supply is established, it acts as an inductive foam nozzle. Performance data shows effective flow trajectories under stationary air conditions. The maximum overall range of the last drop is about 3-5% higher than the effective thread performance data.
Detailed technical description of Varsha HF50 . Fire Extinguishing Foam Mausoleum
- Structure: Hard anodized aluminum or copper material
- Spray type: Mist type and straight flow
- Gear rotation control
- Water connection: 4.0 inch BSP . female swivel input
- Single fixed flow between 3030 and 4750 LPM (800 to 1250 GPM)
- To be used as a foam-cum-water nozzle, self-inductive and non-suction
- Nozzle is supplied with clear 3 mtrs PVC. long straw with a stainless steel tip
- Maximum pressure: 12 Bar (175 PSI)
- Weight: Aluminum material
- 5.7K, Copper material
- 12.7Kg, Stainless steel - 12.2Kg
You will receive a quote from us as soon as possible..
