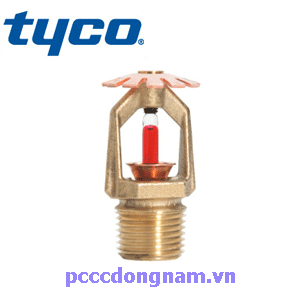

Tyco vertical sprinkler head TY3651
Special Shape Nozzles Standard Response and Coverage Spray Amount K = 5.6 Designed according to NFPA Contact 0917911114 to get a quote for Viking Nozzles VK100, VK102, VK 104
The Tyco TY3651 Sprinkler Head belongs to the TY-B series of special nozzles with standard coverage and reaction type with a spray flow rate of K=5.6. Designed to NFPA standards for use in normal and extreme explosion hazard environments.
Nozzle-sprinkler-Tyco-upright-TY3651
- Meet standards: UL, C-UL, LPCB, VS, NYC
- Maximum working pressure: 175 psi (12.1 bar).
- Spray flow: K=5.6 GPM/psi½ (80/6 LPM/bar½).
- Nozzle size: 1/2 inch NPT (DN15).
- Coated with an anti-corrosion coating to prolong service life. However, this does not mean that this nozzle is suitable for all corrosive environments. Therefore, users should contact for advice on the suitability of anti-corrosion materials for each specific environment.
- Activated by glass tube
- Plating material: Brass
- Activation temperature:
+135 °F (57 °C) orange colored glass tube
+ 155 °F (68 °C) red colored glass tube
+ 175 °F (79 °C) yellow glass tube
+ 200 °F (93 °C) green colored glass tube
+ 286 °F (141 °C) blue tinted glass tube
+ 360 °F (182 °C) pink colored glass tube
You will receive a quote from us as soon as possible..
